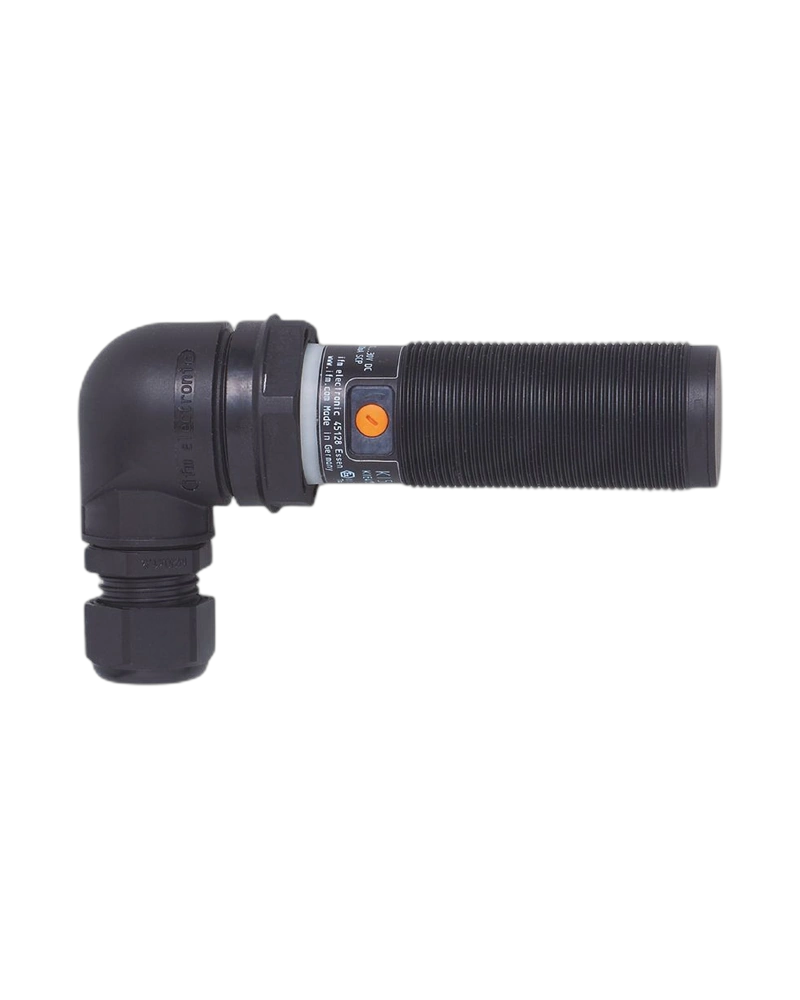

The KI001A is an ATEX-certified AC/DC capacitive sensor designed for hazardous dust environments. It provides a 15 mm adjustable sensing range with selectable normally open or normally closed output. The sensor operates from 30–250 V AC and 20–250 V DC. Its M30 × 1.5 threaded housing has a 125 mm length and IP65/IP67 protection. Terminal connection, a yellow status LED, and hazardous-area certification support specialized industrial installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The KI001A provides a 15 mm sensing range. The sensing distance is adjustable with a 15 mm factory setting. The real sensing range is 15 ±10%. Correction factors are specified for common materials. This provides flexible detection for solids and liquids.
The sensor carries Ex II 3D Ex tc IIIC T90°C Dc marking. It is certified under BVS 20 ATEX E058 X and IECEx BVS 20.0061X. This makes it suitable for specified hazardous dust environments. The operating temperature is -20 to 60°C. IP65/IP67 protection supports industrial enclosure requirements.
The sensor accepts 30–250 V AC and 20–250 V DC. Its output can be selected between NO and NC. Continuous AC/DC current is 100 mA, increasing to 150 mA up to 40°C. The short-time current rating is 1000 mA. Switching frequency is 10 Hz for AC and DC.
15 mm sensing
NO/NC selectable
30–250 V AC
20–250 V DC
ATEX certification
IECEx certification
M30 × 1.5
125 mm length
IP65/IP67
Terminal connection
Hazardous dust zones
Powder handling
Silo monitoring
Bulk solids
Process machinery
Level detection
Material presence
Industrial automation
The KI001A provides non-contact capacitive detection in certified environments. The adjustable sensing range allows installation optimization. Its AC/DC electrical design provides flexible control integration. The long 125 mm housing supports the intended mechanical configuration. The unit should be installed according to its hazardous-area certification requirements.
The M30 × 1.5 threaded body supports secure mounting. The housing uses PBT and PA materials. Terminal wiring accepts 0.34–2.5 mm² conductors. The cable gland is M20 × 1.5 with a 5–9 mm cable sheath range. Two lock nuts are supplied.
| Specification | Value |
|---|---|
| Model | KI001A |
| Order code | KIE2150NFBOA/3D |
| Sensor type | Capacitive |
| Output | NO/NC selectable |
| Sensing range | 15 mm |
| Adjustable | Yes |
| Factory setting | 15 mm |
| Real sensing range | 15 ±10% |
| Operating voltage AC | 30–250 V |
| Operating voltage DC | 20–250 V |
| Protection class | II |
| Reverse polarity | Yes |
| DC voltage drop | 8 V |
| AC voltage drop | 10 V |
| Minimum load | 5 mA |
| Leakage current | 2.5/1.7/1.5 mA |
| Continuous AC current | 100 mA |
| Continuous DC current | 100 mA |
| Short-time current | 1000 mA |
| AC frequency | 10 Hz |
| DC frequency | 10 Hz |
| Short-circuit protection | No |
| Overload protection | No |
| Ambient temperature | -20 to 60°C |
| Protection | IP65/IP67 |
| ATEX | Ex II 3D Ex tc IIIC T90°C Dc |
| Thread | M30 × 1.5 |
| Dimensions | L125 mm |
| Weight | 156.5 g |
| Housing | PBT/PA |
| Connection | Terminals |
