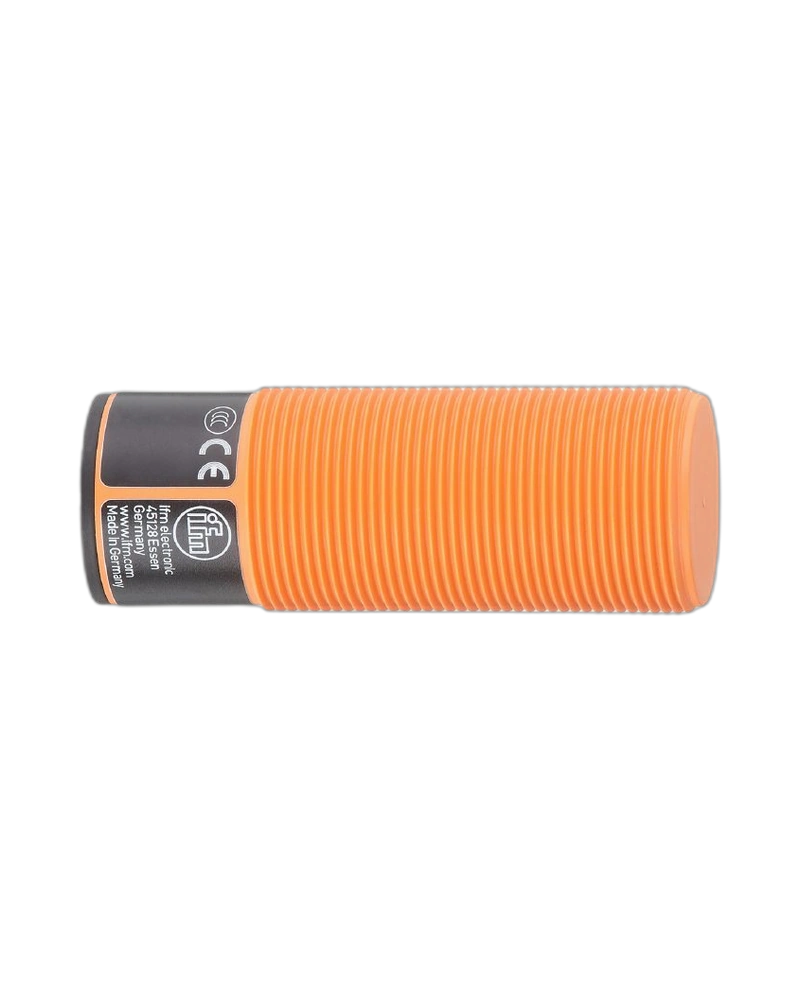

The KI0016 is an AC/DC capacitive sensor with a normally open output. It provides a 15 mm adjustable sensing range and non-flush M30 × 1.5 installation. The sensor operates from 20–250 V AC/DC and supports 25 Hz AC or 40 Hz DC switching. A 2 m PVC cable provides two-wire connection. IP65 protection and increased noise immunity support industrial position and level detection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The KI0016 provides a 15 mm adjustable sensing range. Its real sensing range is 15 ±10%. The operating distance is 0–12.1 mm. Capacitive technology enables contactless detection. Correction factors are specified for glass, water, ceramics, and PVC.
The sensor accepts 20–250 V AC/DC. Its normally open output provides up to 200 mA continuous switching current. AC switching is rated at 25 Hz, while DC switching reaches 40 Hz. Short-circuit and overload protection are not provided. A miniature fuse of ≤2 A fast acting is required.
The sensor uses an M30 × 1.5 threaded PBT housing. It is designed for non-flush installation. The overall length is 81 mm. A yellow LED indicates switching status. The 2 m PVC cable uses two 0.5 mm² conductors.
15 mm sensing range
Adjustable sensing
Normally open
20–250 V AC/DC
25 Hz AC
40 Hz DC
M30 × 1.5
2 m PVC cable
IP65
Yellow LED
Position detection
Level monitoring
Material presence
Packaging machinery
Conveyors
Filling equipment
Bulk solids
Fluid detection
The KI0016 provides increased immunity to conducted radio-frequency interference. This helps maintain stable operation in electrically noisy machine environments. The PBT housing supports industrial installation. The sensor can be adjusted during commissioning. Its 81 mm form factor supports compact mounting.
The AC/DC combined supply simplifies electrical integration. The two-wire design reduces wiring requirements. The normally open output is suitable for presence detection. Its 200 mA continuous current rating supports compatible control loads. The sensor is suited to conventional industrial control circuits.
| Specification | Value |
|---|---|
| Model | KI0016 |
| Order code | KI-2015-ABOA/NI |
| Sensor type | Capacitive |
| Output function | Normally open |
| Sensing range | 15 mm |
| Adjustable | Yes |
| Factory setting | 15 mm |
| Real sensing range | 15 ±10% |
| Operating distance | 0–12.1 mm |
| Operating voltage | 20–250 V AC/DC |
| Protection class | II |
| Reverse polarity | No |
| DC voltage drop | 8 V |
| AC voltage drop | 10 V |
| Minimum load | 5 mA |
| Leakage current | 2.5/1.7/1.5 mA |
| Continuous AC current | 200 mA |
| Continuous DC current | 200 mA |
| Short-time current | 1500 mA |
| AC switching frequency | 25 Hz |
| DC switching frequency | 40 Hz |
| Short-circuit protection | No |
| Overload protection | No |
| Ambient temperature | -25 to 70°C |
| Protection | IP65 |
| Thread | M30 × 1.5 |
| Dimensions | L81 mm |
| Housing | PBT |
| Cable | 2 m PVC |
| Cable cores | 2 × 0.5 mm² |
