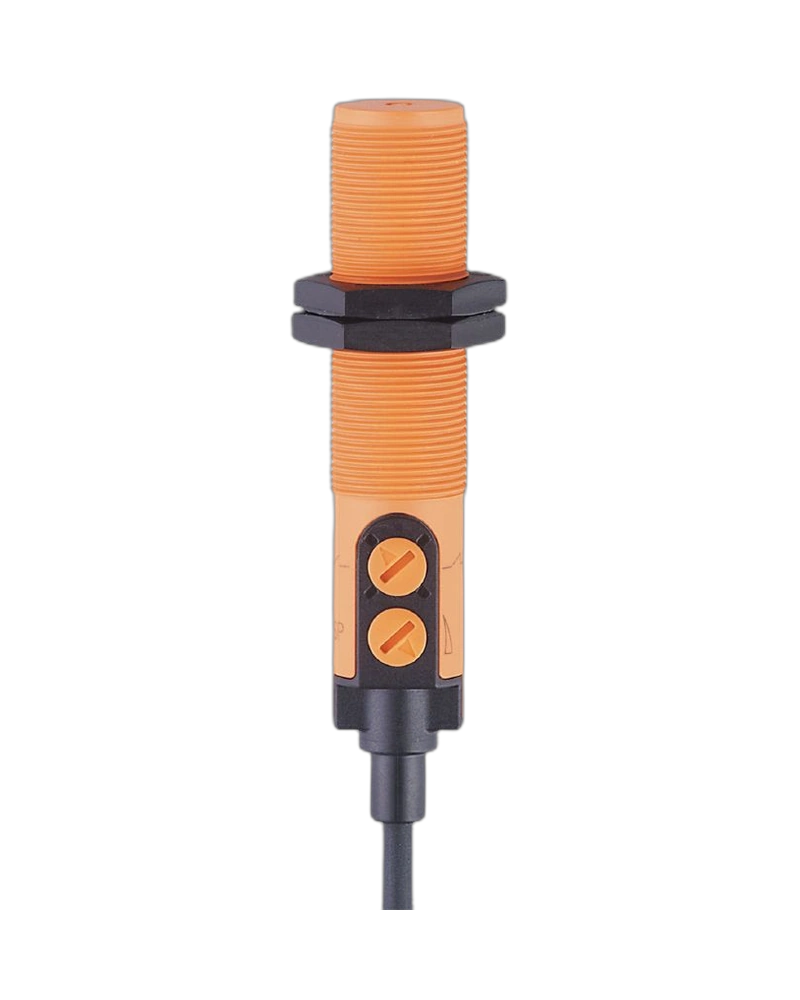

The KG6015 is an IO-Link capacitive sensor designed for programmable industrial detection. It provides a 0.5–30 mm adjustable sensing range with a 15 mm factory setting. PNP/NPN and NO/NC behavior can be configured through the communication interface. Its M18 × 1 housing uses a PP construction with integrated adjustment indication. IP65/IP67 protection supports demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The KG6015 offers a 0.5–30 mm sensing range. The 15 mm factory setting provides a convenient initial configuration. Its adjustable sensing point allows optimization for different target materials. Capacitive operation enables contactless material detection. The sensor is suitable for position and level applications.
The output behavior can be configured through IO-Link. PNP/NPN operation can be parameterized. NO/NC switching can also be selected. This gives the sensor broad compatibility with industrial control architectures. The configuration can be changed without replacing the physical sensor.
The KG6015 includes switching and adjustment indications. Yellow and green LED indicators provide operating feedback. An LED-based adjustment display supports commissioning. This helps operators establish the switching point accurately. The combination of visual feedback and IO-Link improves usability.
0.5–30 mm sensing
15 mm factory setting
PNP/NPN configurable
NO/NC configurable
IO-Link 1.1
LED adjustment aid
10–30 V DC
30 Hz
M18 × 1
IP65/IP67
Level detection
Position monitoring
Material presence
Packaging machinery
Conveyors
Filling systems
Dry bulk solids
Fluid detection
The sensor uses an M18 × 1 threaded body. The PP housing provides a lightweight construction. Non-flush mounting supports its specified sensing geometry. IP65/IP67 protection supports demanding environments. The sensor is suitable for machine and process installations.
IO-Link allows parameter changes through the automation network. Switching thresholds can be managed centrally. Diagnostic information supports maintenance. Multiple sensors can be configured consistently. This reduces commissioning effort for larger machines.
| Specification | Value |
|---|---|
| Model | KG6015 |
| Order code | KG-3150NFPKG/PL/2P/IO |
| Sensor type | Capacitive |
| Electrical design | PNP/NPN configurable |
| Output function | NO/NC configurable |
| Sensing range | 0.5–30 mm |
| Factory setting | 15 mm |
| Real sensing range | 15 ±10% |
| Operating voltage | 10–30 V DC |
| Output current | 200 mA |
| Voltage drop | 2.5 V |
| Switching frequency | 30 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Transmission | COM2, 38.4 kBaud |
| DeviceID | 798 |
| SIO mode | Yes |
| Minimum cycle | 20 ms |
| Protection class | III |
| Ambient temperature | -25 to 80°C |
| Protection | IP65/IP67 |
| Housing | PP |
| Thread | M18 × 1 |
| Length | 92.5 mm |
| Mounting | Non-flush |
| Display | Yellow/green LED |
| Adjustment indication | LED bar |
| Sensor principle | Capacitive |
| Application | Position/level |
| Manufacturer | IFM |
