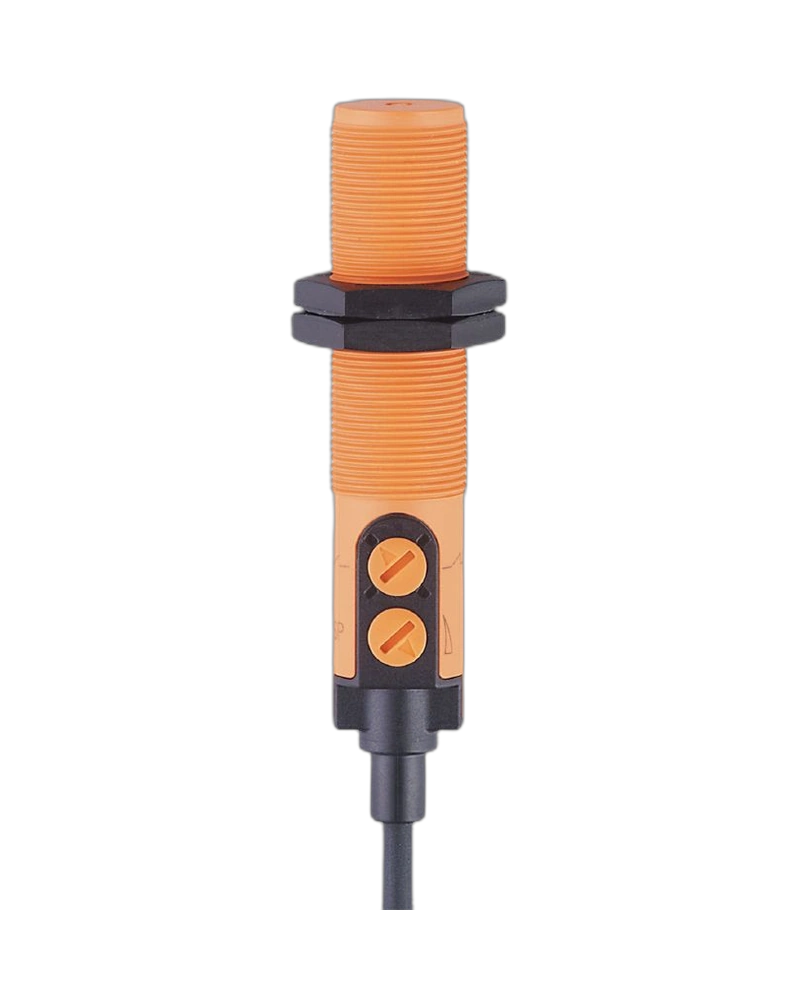

The KG6007 is an NPN capacitive sensor with selectable NO/NC output functionality. It provides an adjustable 0.5–30 mm sensing range with a 15 mm factory setting. The sensor uses IO-Link for digital communication and parameterization. Its 5 m PUR cable provides extended installation reach. IP65/IP67/IP69K protection and optical adjustment assistance support demanding industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The KG6007 uses a 5 m PUR cable. This provides greater installation reach than the standard cable versions. The cable is 3 × 0.34 mm² with a 4 mm outer diameter. The configuration is useful where the sensor is located away from the control cabinet. It reduces the need for additional cable extensions.
The sensor provides a 0.5–30 mm adjustable sensing range. Its factory setting is 15 mm. NO/NC operation can be selected according to control requirements. The optical adjustment aid supports straightforward commissioning. Capacitive detection enables contactless monitoring.
IO-Link provides digital configuration and process communication. The sensor can exchange process information with the controller. Parameters can be adjusted electronically. Diagnostics support maintenance. This makes the KG6007 suitable for smart automation systems.
NPN output
NO/NC selectable
0.5–30 mm range
15 mm factory setting
IO-Link 1.1
5 m PUR cable
Optical setting aid
10–30 V DC
30 Hz
IP65/IP67/IP69K
Remote machine sensing
Level monitoring
Position detection
Conveyor systems
Packaging lines
Filling equipment
Bulk solids
Fluid monitoring
The 5 m cable provides additional routing flexibility. PUR construction supports industrial cable environments. The M18 × 1 housing allows standard mounting. The sensor maintains the same adjustable capacitive sensing concept. This makes it useful for machines with distributed sensor locations.
IO-Link provides access to sensor parameters and process information. LED indicators assist local commissioning. The adjustable sensing range can be optimized during installation. Diagnostics can reduce troubleshooting time. The sensor supports centralized management of connected devices.
| Specification | Value |
|---|---|
| Model | KG6007 |
| Order code | KG-3150NFNKG/PL/2P/IO/5M/PUR |
| Electrical design | NPN |
| Output function | NO/NC selectable |
| Sensing range | 0.5–30 mm |
| Factory setting | 15 mm |
| Real sensing range | 15 ±10% |
| Operating voltage | 10–30 V DC |
| Current consumption | <22 mA |
| Voltage drop | 2.5 V |
| Output current | 200 mA |
| Switching frequency | 30 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Transmission | COM2, 38.4 kBaud |
| DeviceID | 795 |
| SIO mode | Yes |
| Protection class | III |
| Ambient temperature | -25 to 80°C |
| Protection | IP65/IP67/IP69K |
| Housing | PBT/PC/POM |
| Thread | M18 × 1 |
| Length | 92.5 mm |
| Mounting | Non-flush |
| Cable length | 5 m |
| Cable type | PUR |
| Cable size | 3 × 0.34 mm² |
| Display | Yellow/green LEDs |
| Setting aid | Optical |
| Application | Position/level detection |
