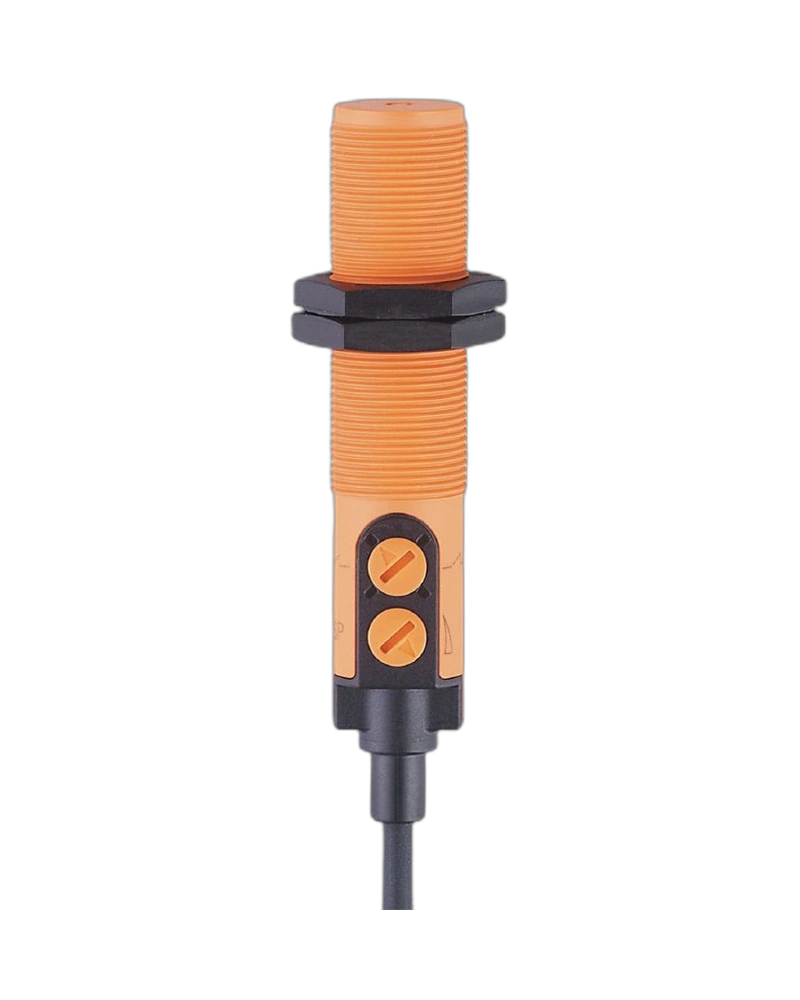

The KG6001 is an IO-Link capacitive sensor designed for programmable material detection. It provides a 0.5–30 mm adjustable sensing range with a 15 mm factory setting. Its output behavior can be configured for NO/NC and PNP/NPN operation. The M18 × 1 threaded body provides non-flush installation. IP65/IP67/IP69K protection supports demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The KG6001 supports a broad 0.5–30 mm detection range. The factory setting is 15 mm. The sensing point can be adjusted to match target conditions. Capacitive detection supports solids and liquids. This makes the sensor flexible for different machine configurations.
The sensor can be configured for normally open or normally closed operation. PNP/NPN behavior can be parameterized through IO-Link. This allows one sensor type to support different control architectures. The 200 mA output capability supports common automation inputs. Short-circuit and overload protection add operating robustness.
The KG6001 provides IO-Link 1.1 communication. The interface supports process data and diagnostic functions. Parameters can be changed through the automation system. This reduces manual configuration requirements. It is suitable for connected industrial machines.
0.5–30 mm range
15 mm factory setting
PNP/NPN configurable
NO/NC configurable
IO-Link 1.1
10–30 V DC
30 Hz switching
200 mA output
M18 × 1
IP65/IP67/IP69K
Level detection
Position sensing
Fluid monitoring
Bulk solids
Packaging machinery
Filling systems
Conveyor systems
Process automation
The M18 × 1 housing simplifies machine installation. Non-flush mounting provides the specified sensing geometry. The sensor is protected against demanding environmental conditions. Its compact cylindrical construction supports replacement and maintenance. IO-Link adds digital configuration capability.
Output configuration allows the KG6001 to be adapted to different PLC systems. The sensing point can be adjusted for different materials. IO-Link can store and manage operating parameters. This reduces setup time across repeat machine installations. The sensor is well suited to standardized machine platforms.
| Specification | Value |
|---|---|
| Model | KG6001 |
| Order code | KG-3150NFPKG/PL/2P/IO |
| Sensor type | Capacitive |
| Electrical design | PNP/NPN configurable |
| Output function | NO/NC configurable |
| Sensing range | 0.5–30 mm |
| Factory setting | 15 mm |
| Real sensing range | 15 ±10% |
| Operating voltage | 10–30 V DC |
| Output current | 200 mA |
| Voltage drop | 2.5 V |
| Switching frequency | 30 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Transmission | COM2, 38.4 kBaud |
| SIO mode | Yes |
| DeviceID | 798 |
| Minimum process cycle | 20 ms |
| Protection class | III |
| Ambient temperature | -25 to 80°C |
| Protection | IP65/IP67/IP69K |
| Housing | Plastic |
| Thread | M18 × 1 |
| Dimensions | L92.5 mm |
| Mounting | Non-flush |
| Connection | IO-Link cable/connector |
| Display | Yellow status indication |
| Application | Dry bulk solids/fluids |
| Supplied accessory | 2 fixing nuts |
