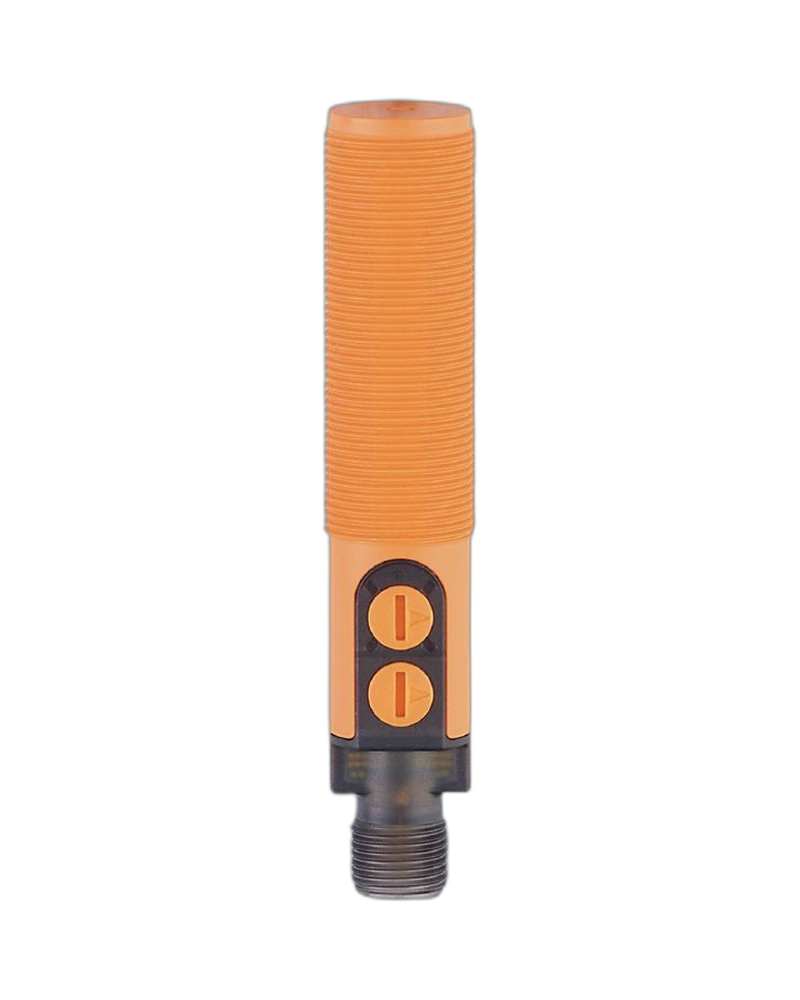

The KG6000 is an IO-Link capacitive sensor with programmable output behavior. It provides a 0.5–30 mm adjustable sensing range with a 15 mm factory setting. PNP/NPN output configuration and NO/NC switching can be managed through the sensor interface. The M18 × 1 plastic housing supports non-flush mounting. IP65/IP67/IP69K protection makes it suitable for dry bulk solids and fluid applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The KG6000 provides a 0.5–30 mm adjustable sensing range. Its 15 mm factory setting provides a practical starting point. The output function can be configured as normally open or normally closed. PNP/NPN behavior can also be parameterized through IO-Link. This makes one sensor adaptable to multiple control architectures.
The sensor uses IO-Link 1.1 with COM2 communication. It supports process data and device diagnostics. A minimum process cycle of 20 ms supports responsive machine monitoring. Parameter functions include operating hours and switching-point settings. This provides centralized digital sensor management.
The sensor is rated IP65, IP67, and IP69K. This provides protection for demanding industrial environments. Its operating temperature range is -25 to 80°C. The M18 × 1 plastic threaded housing supports non-flush installation. The sensor is suitable for dry bulk solids and fluids.
0.5–30 mm adjustable range
15 mm factory setting
PNP/NPN configurable
NO/NC configurable
IO-Link 1.1
COM2 communication
10–30 V DC
M18 × 1 housing
M12 connector
IP65/IP67/IP69K
Dry bulk solids
Fluid detection
Level monitoring
Position detection
Packaging equipment
Conveyor systems
Filling machines
Material handling
The programmable output allows the KG6000 to adapt to different PLC architectures. NO and NC functions can be selected according to application requirements. PNP/NPN configuration adds additional flexibility. This can reduce the number of sensor variants required in a machine platform. IO-Link makes these settings digitally manageable.
IO-Link enables centralized parameter management. Operating information can be accessed from the control system. Switching thresholds can be configured electronically. Diagnostic information can assist maintenance. This makes the KG6000 suitable for modern connected production systems.
| Specification | Value |
|---|---|
| Model | KG6000 |
| Order code | KG-3150NFPKG/PL/2P/US/IO |
| Sensor type | Capacitive |
| Electrical design | PNP/NPN configurable |
| Output | NO/NC configurable |
| Sensing range | 0.5–30 mm |
| Factory setting | 15 mm |
| Real sensing range | 15 ±10% |
| Operating voltage | 10–30 V DC |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Transmission | COM2, 38.4 kBaud |
| SIO mode | Yes |
| Minimum process cycle | 20 ms |
| Output current | 200 mA |
| Voltage drop | 2.5 V |
| Switching frequency | 30 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Protection class | III |
| Ambient temperature | -25 to 80°C |
| Protection | IP65/IP67/IP69K |
| Housing | Plastic |
| Thread | M18 × 1 |
| Mounting | Non-flush |
| Connection | M12 |
| Display | Switching-status indication |
| Adjustment | Electronic/IO-Link |
| Application | Solids and fluids |
| Supplied accessory | 2 fixing nuts |
