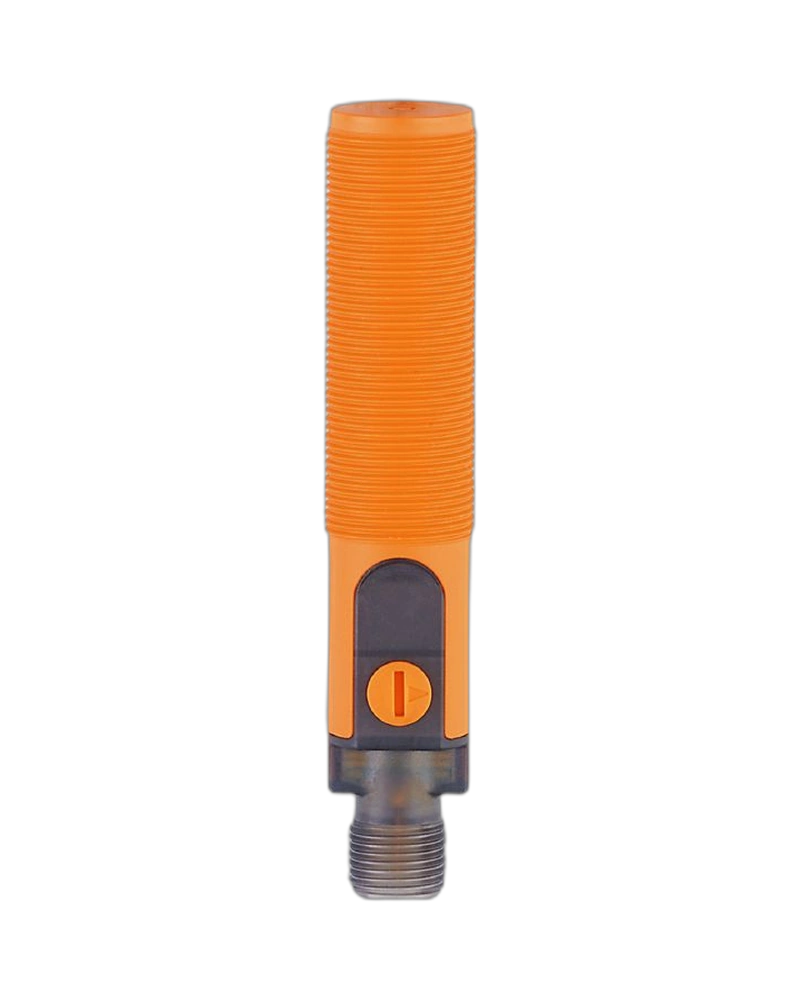

The KG5311 is a quasi-flush PNP normally open capacitive sensor with IO-Link. It provides a 0.5–9 mm sensing range for close-range applications. The sensor operates from 10–30 V DC and switches at up to 30 Hz. Its M18 × 1 threaded body provides compact industrial installation. The 12-LED indication family provides visual assistance for sensor adjustment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The KG5311 is designed for short-distance capacitive detection. Its 0.5–9 mm range suits compact machine applications. Quasi-flush mounting allows close integration with machine surfaces. The sensing point can be adjusted to suit the target. This provides flexible detection for industrial equipment.
The KG5311 family uses a multi-LED display to make sensor behavior easier to observe. This helps operators identify the switching point during commissioning. Visual feedback can simplify setup and troubleshooting. The display works alongside IO-Link communication. Together, these features improve sensor usability.
The sensor communicates through IO-Link. Parameters can be configured through an IO-Link master. Process data can be integrated into PLC logic. Diagnostic information can support machine maintenance. This makes the sensor appropriate for connected automation systems.
Quasi-flush installation
0.5–9 mm sensing
PNP normally open
IO-Link
10–30 V DC
30 Hz
200 mA
M18 × 1
US/IO
Multi-LED indication
Position sensing
Material presence
Packaging machinery
Conveyor systems
Filling equipment
Level monitoring
Process automation
Machine monitoring
The M18 × 1 body supports straightforward mechanical installation. The quasi-flush configuration reduces sensor projection. High ingress protection supports demanding environments. The sensor operates across a broad industrial temperature range. Its compact form factor suits machine builders.
Visual indication helps users identify switching behavior. IO-Link provides a second method for parameterization and diagnostics. This can reduce commissioning time. The adjustable sensing range supports application-specific setup. The sensor is therefore suitable for production systems requiring repeatable configuration.
| Specification | Value |
|---|---|
| Model | KG5311 |
| Order code | KG-3080QBPKG/SL/1P/US/IO |
| Electrical design | PNP |
| Output function | Normally open |
| Mounting | Quasi-flush |
| Sensing range | 0.5–9 mm |
| Operating voltage | 10–30 V DC |
| Current consumption | <22 mA |
| Voltage drop | 2.5 V |
| Output current | 200 mA |
| Switching frequency | 30 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Transmission | COM2, 38.4 kBaud |
| SIO mode | Yes |
| Process cycle | 20 ms |
| Protection class | III |
| Ambient temperature | -25 to 80°C |
| Protection | IP65/IP67/IP69K |
| Housing | PBT/PC/POM |
| Thread | M18 × 1 |
| Length | 92.5 mm |
| Mounting type | Quasi-flush |
| Connection | US/IO |
| Cable configuration | 3-wire family |
| Display | LED bar indication |
| Sensor principle | Capacitive |
| Application | Position/level detection |
| Output topology | PNP NO |
