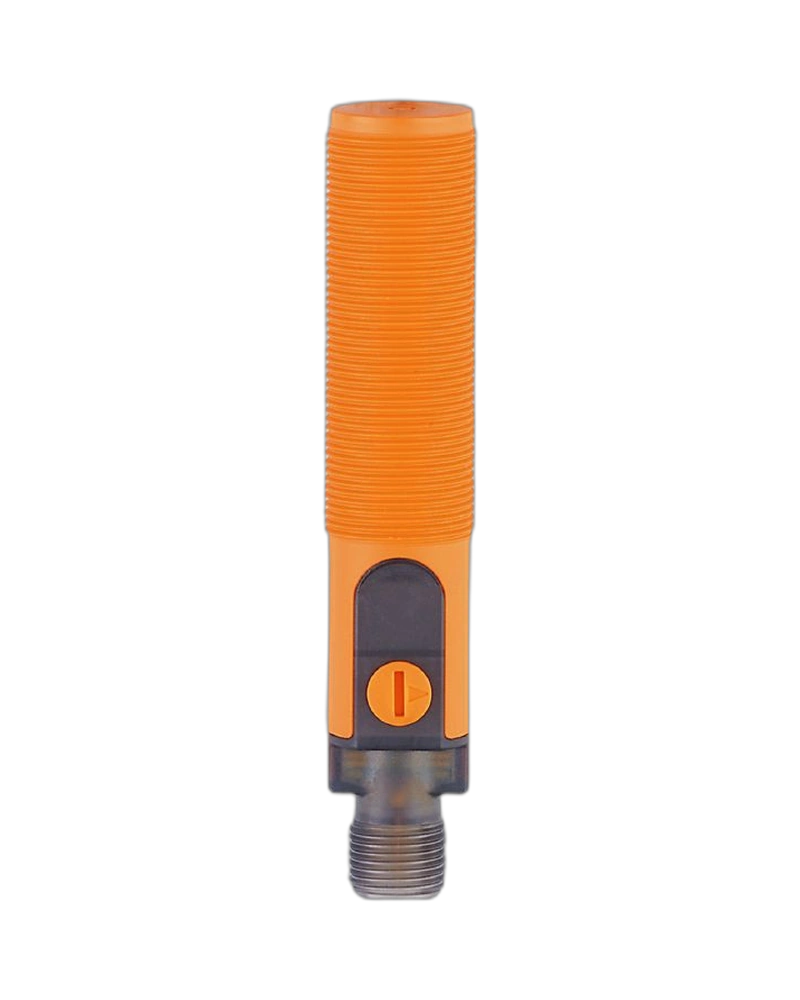

The KG5306 is an NPN normally open capacitive sensor with IO-Link communication. It provides a 0.5–30 mm adjustable sensing range and a 15 mm factory setting. The sensor operates from 10–30 V DC and supports a 30 Hz switching frequency. Its M18 × 1 housing has an overall length of 92.5 mm. The US/IO version provides industrial connectivity for demanding automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The KG5306 provides a broad adjustable sensing range. Its 0.5–30 mm range allows flexible positioning. The 15 mm factory setting simplifies initial setup. Capacitive detection works without physical contact with the target. This makes the sensor useful for both position and level applications.
The sensor uses an NPN normally open output. The output supports up to 200 mA continuous current. Short-circuit and overload protection improve reliability. The 30 Hz switching rate supports repetitive machine operations. This configuration is suitable for compatible PLC input architectures.
IO-Link provides digital communication and configuration. The sensor supports process data and device parameterization. Switching behavior can be managed electronically. Diagnostics can be integrated into machine maintenance procedures. This reduces manual sensor adjustment and simplifies commissioning.
NPN normally open
0.5–30 mm sensing range
15 mm factory setting
IO-Link
10–30 V DC
30 Hz switching
200 mA output
M18 × 1 thread
92.5 mm length
IP65/IP67/IP69K
Level monitoring
Position detection
Material presence sensing
Packaging equipment
Filling systems
Conveyors
Bulk material handling
Industrial automation
The US/IO variant is designed around an industrial connector configuration. This can simplify sensor replacement and machine wiring. IO-Link provides the digital communication interface. The M18 threaded body supports conventional mounting. The design suits automated production equipment.
The sensor can monitor material movement and presence without mechanical contact. Its adjustable sensing point allows application-specific configuration. The NPN output can interface with suitable control inputs. IO-Link provides additional parameter and diagnostic capabilities. This combination supports modern machine-control architectures.
| Specification | Value |
|---|---|
| Model | KG5306 |
| Order code | KG-3150NANKG/SL/1P/US/IO |
| Electrical design | NPN |
| Output function | Normally open |
| Sensing range | 0.5–30 mm |
| Factory setting | 15 mm |
| Real sensing range | 15 ±10% |
| Operating voltage | 10–30 V DC |
| Current consumption | <22 mA |
| Output voltage drop | 2.5 V |
| Output current | 200 mA |
| Switching frequency | 30 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Transmission | COM2, 38.4 kBaud |
| DeviceID | 795 |
| SIO mode | Yes |
| Protection class | III |
| Ambient temperature | -25 to 80°C |
| Protection rating | IP65/IP67/IP69K |
| Housing | PBT/PC/POM |
| Thread | M18 × 1 |
| Dimensions | L92.5 mm |
| Mounting | Non-flush |
| Connection | US/IO configuration |
| Display | Yellow LED |
| Sensor principle | Capacitive |
| Medium capability | Solid/liquid detection |
