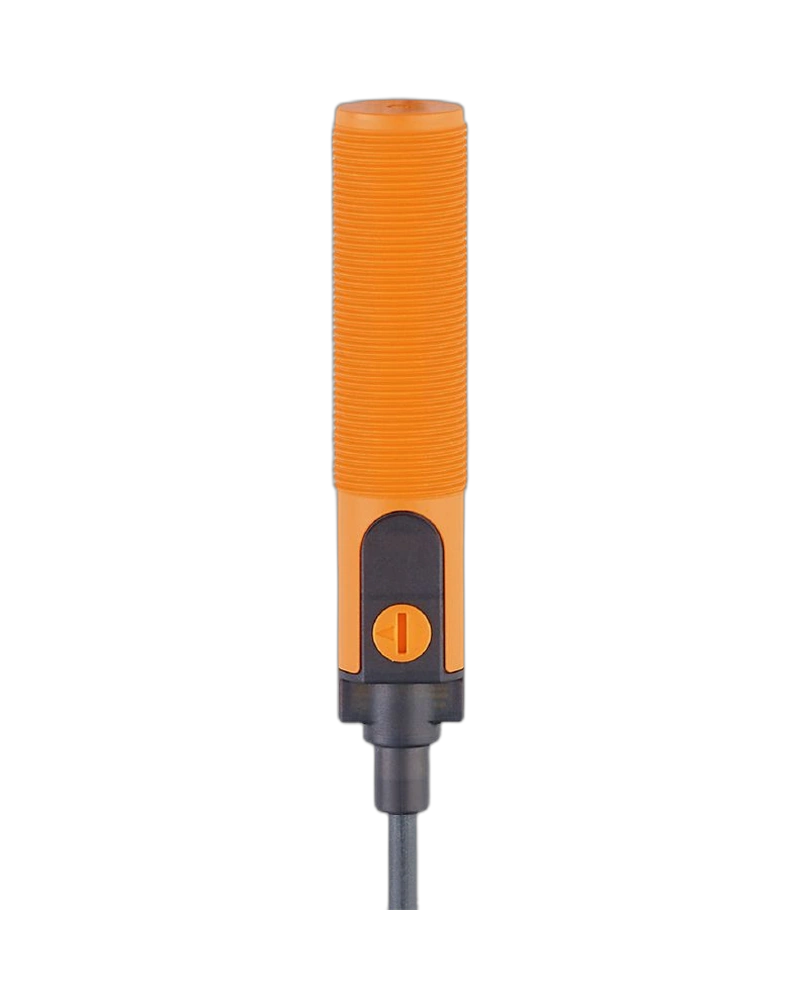

The KG5305 is a quasi-flush PNP normally open capacitive sensor. It provides a 0.5–9 mm sensing range for close-proximity detection. The sensor operates from 10–30 V DC and communicates through IO-Link. Its M18 × 1 threaded body provides a 92.5 mm length. IP65/IP67/IP69K protection and PUR cabling support industrial automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The sensor is designed for shorter capacitive detection distances. Its 0.5–9 mm range is suitable for compact machine layouts. Quasi-flush mounting reduces interference from surrounding metal structures. The sensing point can be adjusted for the target application. This provides flexibility for position and material detection.
The KG5305 provides a PNP normally open output. The 200 mA continuous output rating supports common industrial inputs. Integrated short-circuit and overload protection improve operating stability. Its 30 Hz switching rate supports repeated machine cycles. The output can be used directly with compatible PLC inputs.
IO-Link enables digital parameterization and process monitoring. The sensor can be configured through an IO-Link master. Device data can be managed centrally. Diagnostic functions support machine maintenance. This makes the sensor suitable for smart factory architectures.
Quasi-flush sensing
0.5–9 mm range
PNP normally open
IO-Link communication
10–30 V DC
30 Hz switching
200 mA output
2 m PUR cable
M18 × 1 body
IP65/IP67/IP69K
Position detection
Material presence
Packaging machinery
Conveyor equipment
Filling machines
Level monitoring
Machine automation
Material handling
The quasi-flush configuration supports compact mounting. The threaded M18 × 1 housing allows secure positioning. PUR cable construction is suitable for industrial cable routing. High ingress protection supports harsh environments. The sensor can be integrated into a broad range of machine designs.
The KG5305 provides continuous material presence information. IO-Link allows sensor settings to be managed remotely. The 30 Hz switching frequency supports repetitive detection. Its normally open output simplifies presence-detection logic. This makes it suitable for automated process monitoring.
| Specification | Value |
|---|---|
| Model | KG5305 |
| Order code | KG-3080QBPKG/SL/1P/IO |
| Electrical design | PNP |
| Output function | Normally open |
| Mounting | Quasi-flush |
| Sensing range | 0.5–9 mm |
| Operating voltage | 10–30 V DC |
| Output current | 200 mA |
| Voltage drop | 2.5 V |
| Switching frequency | 30 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Transmission | COM2, 38.4 kBaud |
| SIO mode | Yes |
| Protection class | III |
| Ambient temperature | -25 to 80°C |
| Medium temperature | Up to 110°C |
| Protection | IP65/IP67/IP69K |
| Housing | PBT/PC/POM |
| Thread | M18 × 1 |
| Length | 92.5 mm |
| Cable | 2 m PUR |
| Connection | 3-wire |
| Display | Yellow LED |
| Sensor principle | Capacitive |
| Factory setting | Application-adjustable |
| Mounting type | Quasi-flush |
| Application | Position/level detection |
| Manufacturer | IFM |
