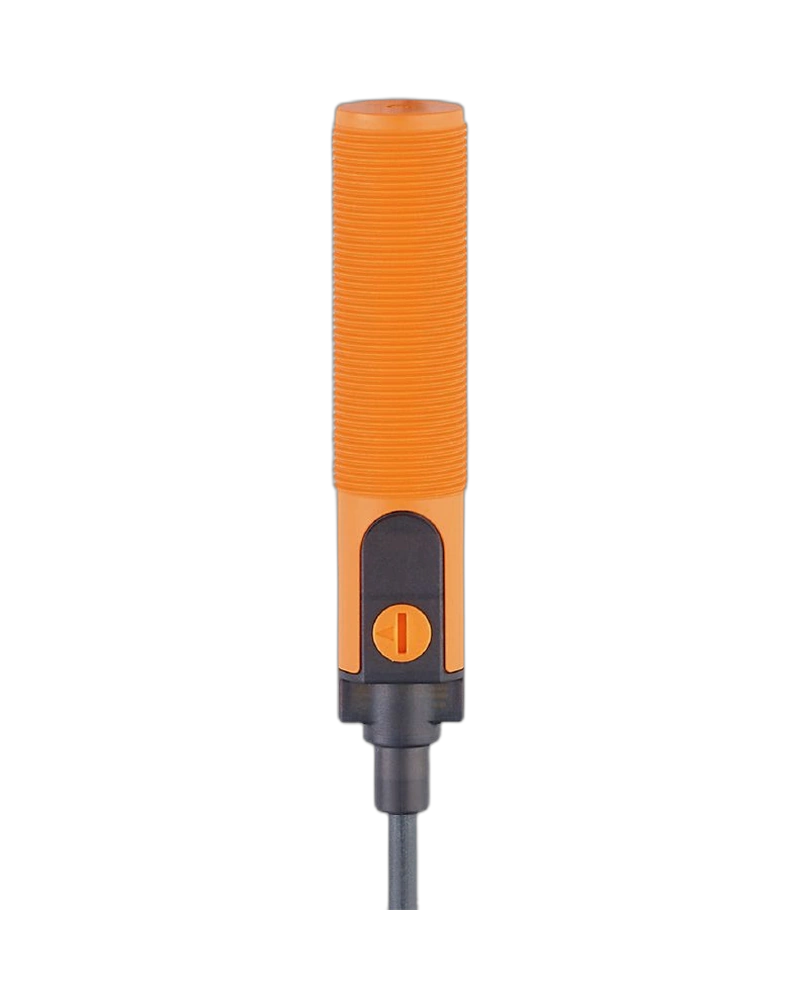

The KG5303 is a PNP normally open capacitive sensor with IO-Link communication. It provides 0.5–30 mm adjustable sensing with a 15 mm factory setting. The sensor operates at 10–30 V DC and provides 30 Hz switching. Its M18 × 1 housing is designed for non-flush installation. The 2 m PUR cable and IP65/IP67/IP69K protection support demanding industrial automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The sensor provides contactless detection of suitable solid and liquid targets. Its adjustable sensing range allows the switching point to be optimized. The 15 mm factory setting reduces commissioning effort. Capacitive sensing is useful where target color or surface appearance varies. The sensor provides repeatable position and level detection when correctly adjusted.
The KG5303 uses a PNP normally open output. Its 200 mA output capability supports standard industrial control inputs. Short-circuit and overload protection improve reliability. A 30 Hz switching rate supports repetitive detection. The output arrangement is suitable for PLC-controlled machinery.
IO-Link enables parameterization and process-data communication. The sensor can be configured through an IO-Link master. Diagnostic information can simplify maintenance. Parameter management is useful for multi-sensor production systems. This supports integration into modern automation architectures.
PNP normally open output
0.5–30 mm sensing range
15 mm factory setting
IO-Link 1.1
30 Hz switching
10–30 V DC
200 mA output
2 m PUR cable
M18 × 1 thread
IP65/IP67/IP69K
Level monitoring
Position detection
Packaging machines
Conveyor systems
Filling equipment
Material handling
Bulk material detection
Liquid detection
The sensor is designed for demanding industrial environments. IP65/IP67/IP69K ratings support dust, water, and cleaning exposure. The PUR cable provides robust machine connectivity. The M18 threaded body simplifies mechanical installation. Its operating temperature range covers -25 to 80°C.
The KG5303 can monitor material presence without mechanical contact. Adjustable sensing allows adaptation to target material and installation distance. IO-Link supports centralized configuration and diagnostics. The 30 Hz switching rate provides responsive detection. These characteristics make it useful in automated production lines.
| Specification | Value |
|---|---|
| Model | KG5303 |
| Order code | KG-3150NBPKG/SL/1P/IO |
| Electrical design | PNP |
| Output function | Normally open |
| Sensing range | 0.5–30 mm |
| Factory setting | 15 mm |
| Real sensing range | 15 ±10% |
| Operating voltage | 10–30 V DC |
| Current consumption | <22 mA |
| Voltage drop | 2.5 V |
| Output current | 200 mA |
| Switching frequency | 30 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Transmission | COM2, 38.4 kBaud |
| SIO mode | Yes |
| Protection class | III |
| Ambient temperature | -25 to 80°C |
| Medium temperature | Up to 110°C |
| Protection | IP65/IP67/IP69K |
| Housing | PBT/PC/POM |
| Thread | M18 × 1 |
| Length | 92.5 mm |
| Mounting | Non-flush |
| Cable | 2 m PUR |
| Connection | 3-wire |
| Display | Yellow LED |
| Sensor principle | Capacitive |
