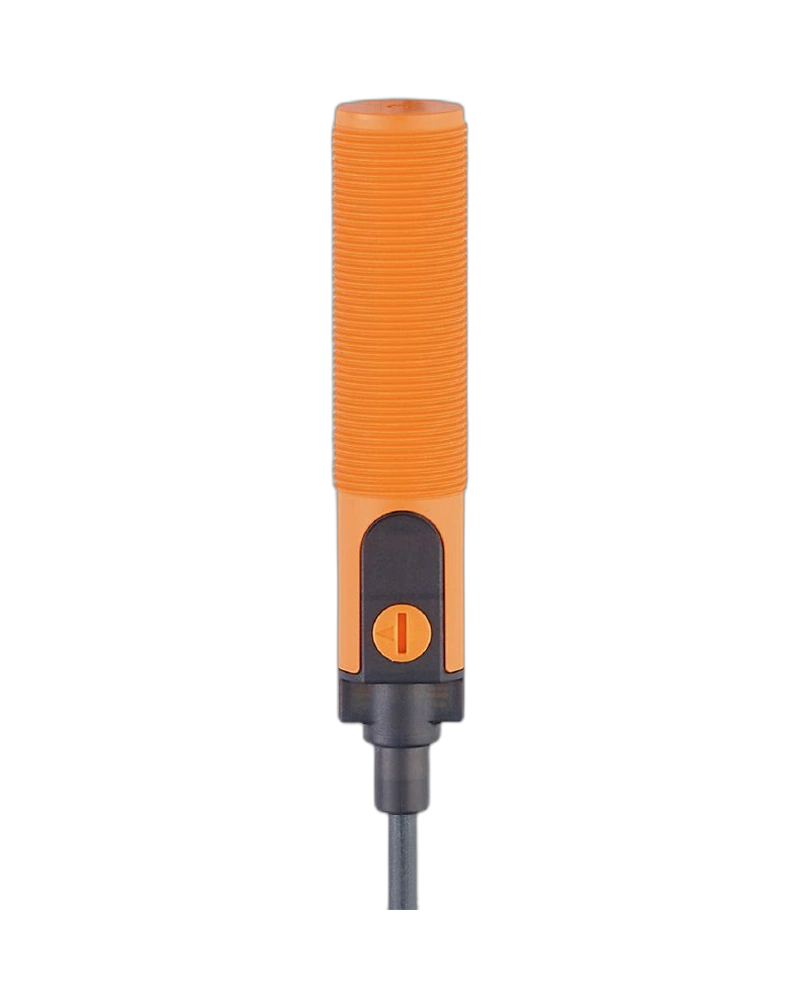

The KG5302 is an NPN normally closed capacitive sensor with IO-Link communication. It provides an adjustable sensing range of 0.5–30 mm and a 15 mm factory setting. The unit operates from 10–30 V DC and switches at up to 30 Hz. Its M18 × 1 threaded body provides non-flush mounting for industrial machinery. IP65/IP67/IP69K protection and a 2 m PUR cable support harsh production environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The KG5302 offers adjustable capacitive detection across 0.5–30 mm. The 15 mm factory setting provides a practical starting point. Its 15 ±10% real sensing range supports predictable setup. Capacitive technology allows contactless detection of suitable materials. The adjustment facility makes the sensor adaptable to different machine configurations.
The sensor uses an NPN normally closed switching output. It provides a 200 mA continuous output rating. Short-circuit and overload protection are integrated. The 30 Hz switching frequency supports fast repetitive detection. This output arrangement can be integrated with compatible PLC inputs and control electronics.
IO-Link provides digital communication for parameterization and process data. The interface simplifies commissioning and maintenance. Sensor parameters can be managed through the automation system. Diagnostic information can also support troubleshooting. This makes the KG5302 suitable for connected industrial equipment.
NPN normally closed output
0.5–30 mm adjustable range
15 mm factory setting
IO-Link communication
10–30 V DC
30 Hz switching frequency
200 mA output
2 m PUR cable
M18 × 1 housing
IP65/IP67/IP69K
Position detection
Level monitoring
Bulk material detection
Liquid presence sensing
Packaging machinery
Conveyor systems
Filling equipment
Machine automation
The M18 × 1 threaded housing provides straightforward installation. Non-flush mounting supports the specified capacitive sensing field. The PUR cable provides a durable connection for machine installations. High ingress protection supports wet and dusty environments. The sensor can be integrated into standard industrial mounting arrangements.
The sensor is designed for applications involving elevated medium temperatures. The documented medium-temperature capability reaches 110°C. This expands its use in filling, processing, and material-handling equipment. IO-Link provides convenient parameter access in such installations. The combination supports reliable monitoring in demanding production lines.
| Specification | Value |
|---|---|
| Model | KG5302 |
| Order code | KG-3150NBNKG/SL/1P/IO |
| Electrical design | NPN |
| Output function | Normally closed |
| Sensing range | 0.5–30 mm |
| Factory setting | 15 mm |
| Real sensing range | 15 ±10% |
| Operating voltage | 10–30 V DC |
| Current consumption | <22 mA |
| Voltage drop | 2.5 V |
| Output current | 200 mA |
| Switching frequency | 30 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Transmission | COM2, 38.4 kBaud |
| SIO mode | Yes |
| Protection class | III |
| Ambient temperature | -25 to 80°C |
| Medium temperature | Up to 110°C |
| Protection rating | IP65/IP67/IP69K |
| Housing material | PBT/PC/POM |
| Thread | M18 × 1 |
| Dimensions | L92.5 mm |
| Mounting | Non-flush |
| Cable | 2 m PUR |
| Number of wires | 3 |
| Display | Yellow LED |
| Sensor principle | Capacitive |
