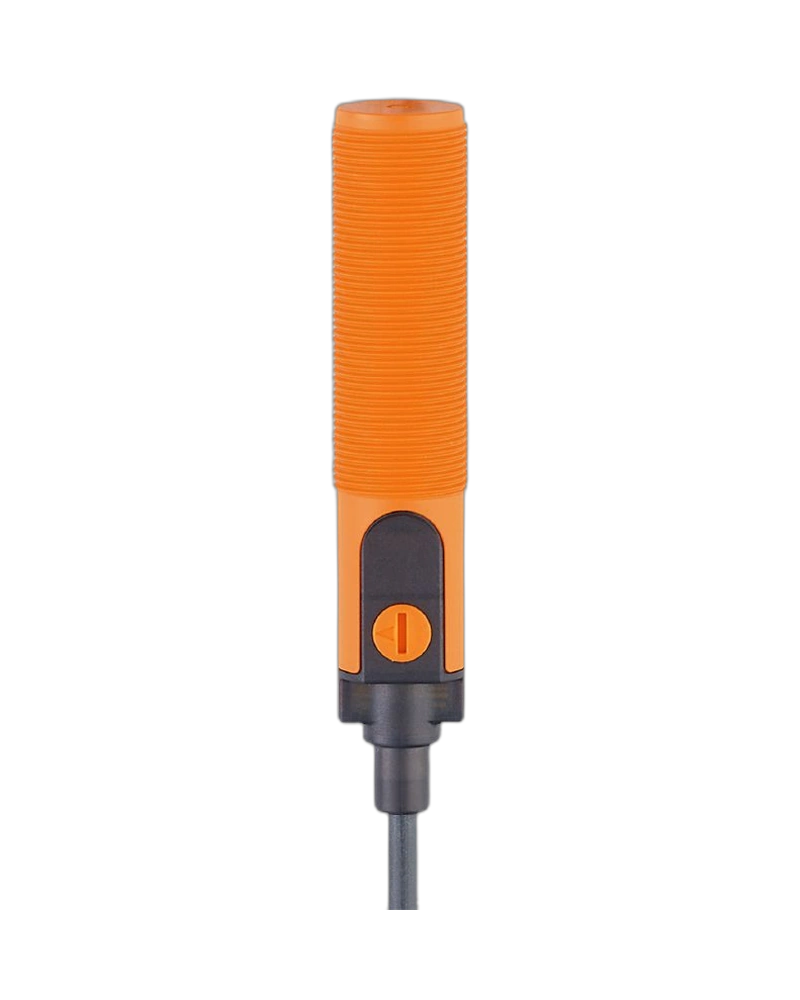

The IFM KG5300 is an IO-Link capacitive sensor designed for adjustable position and level detection. It provides a 0.5–30 mm sensing range with a factory setting of 15 mm. The sensor uses an NPN normally open output and operates from 10–30 V DC. Its M18 × 1 threaded construction supports compact machine installation. IP65, IP67, and IP69K protection make it suitable for demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The KG5300 provides a wide 0.5–30 mm adjustable sensing range. The factory setting is 15 mm for general-purpose applications. Its capacitive principle allows detection of both solid and liquid materials. The sensing point can be adapted during machine commissioning. This helps compensate for different target materials and mounting conditions.
IO-Link provides parameter access and diagnostic information through the connected master. The sensor can be configured without mechanical adjustment alone. Process information can be integrated into automation systems. Device parameters can also be managed consistently across machines. This makes the KG5300 suitable for digitally managed production equipment.
The M18 × 1 threaded housing supports standard industrial mounting. The sensor is non-flush mounted to maintain its specified detection performance. IP65, IP67, and IP69K protection support applications involving dust, water, and cleaning processes. The operating temperature range extends from -25 to 80°C. The sensor is therefore suited to demanding production environments.
0.5–30 mm adjustable sensing range
15 mm factory setting
NPN normally open output
IO-Link communication
10–30 V DC supply
30 Hz switching frequency
M18 × 1 threaded body
2 m PUR cable
IP65/IP67/IP69K protection
Yellow status LED
Level monitoring
Liquid detection
Dry bulk detection
Machine position sensing
Packaging machinery
Material handling systems
Filling equipment
Conveyor systems
The KG5300 can detect the presence or position of materials without physical contact. Its adjustable sensing distance allows the sensor to be adapted to different mounting geometries. Capacitive detection is useful where optical sensors may be affected by material appearance. IO-Link adds configuration and diagnostic capability. This makes the sensor suitable for automated machine monitoring.
The sensor can be used for level detection of suitable solids and liquids. Its adjustable range provides flexibility for different vessel-wall and target arrangements. The 15 mm factory setting provides a practical starting point for commissioning. The high protection rating supports installation around process equipment. IO-Link enables convenient parameter management in connected control systems.
| Specification | Value |
|---|---|
| Model | KG5300 |
| Order code | KG-3150NANKG/SL/1P/IO |
| Sensor type | Capacitive |
| Electrical design | NPN |
| Output function | Normally open |
| Sensing range | 0.5–30 mm |
| Factory setting | 15 mm |
| Real sensing range | 15 ±10% |
| Operating voltage | 10–30 V DC |
| Current consumption | <22 mA |
| Voltage drop | 2.5 V |
| Output current | 200 mA |
| Switching frequency | 30 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Transmission type | COM2, 38.4 kBaud |
| SIO mode | Yes |
| Minimum process cycle | 20 ms |
| Protection class | III |
| Ambient temperature | -25 to 80°C |
| Medium temperature | Up to 110°C |
| Protection rating | IP65/IP67/IP69K |
| Housing | PBT/PC/POM |
| Thread | M18 × 1 |
| Dimensions | M18 × 1 / L92.5 mm |
| Connection | 2 m PUR cable |
| Mounting | Non-flush |
| Display | Yellow LED |
