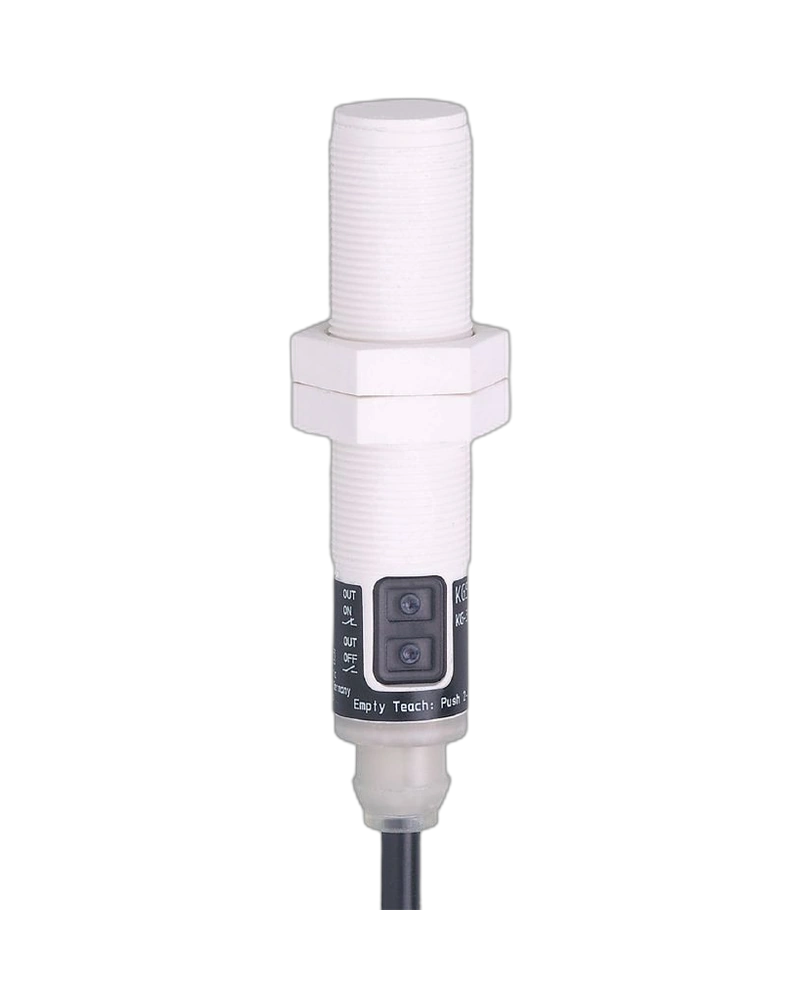

The IFM KG5070 is a long-cable IO-Link capacitive sensor designed for remote material and level detection. It provides an 8 mm sensing range with selectable normally open and normally closed PNP output behavior. The sensor operates from 10 to 36 V DC and uses a 10 m PVC cable. Its M18 × 1 threaded body provides secure non-flush mounting. IP65/IP67 protection and digital communication support demanding industrial installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The KG5070 is equipped with a 10 m PVC cable for installations where the sensor is located far from the control cabinet. The cable provides a three-wire industrial connection. This eliminates the need for an immediate cable extension in many installations. The 8 mm sensing range supports close-range material detection. The M18 body provides standard threaded mounting.
The sensor uses a DC PNP output with selectable normally open and normally closed operation. It operates from 10 to 36 V DC. Switching frequency is 10 Hz. Short-circuit and overload protection are provided. Reverse polarity protection supports reliable electrical installation.
The KG5070 supports intelligent sensor integration through its IO-Link interface. Its M18 × 1 body measures approximately 77 mm long. It is non-flush mountable and protected to IP65/IP67. The 10 m PVC cable is suitable for remote machine installations. The sensor is designed for industrial level and presence detection.
8 mm sensing range
PNP output
NO / NC selectable
IO-Link
10...36 V DC
10 m PVC cable
3-wire connection
M18 × 1 thread
77 mm length
10 Hz switching
Short-circuit protection
Overload protection
Reverse polarity protection
IP65 / IP67
Non-flush mounting
Teach functionality
Electronic lock
Remote tank monitoring
Liquid level detection
Dry bulk material detection
Packaging machinery
Filling systems
Process equipment
Conveyors
Material presence detection
Remote machine installations
Industrial automation
The 10 m cable is useful when the sensor is located away from the control cabinet. It can reduce the number of cable-extension components required. The three-wire arrangement provides a conventional PNP interface. The threaded M18 body allows secure mounting near the detection point. This makes the KG5070 useful for distributed machine layouts.
IO-Link provides access to sensor configuration and diagnostics. NO/NC selection provides control-system flexibility. The teach function simplifies setup. Electronic locking helps prevent unintended changes. These features support efficient commissioning and maintenance.
| Specification | KG5070 |
|---|---|
| Product type | Capacitive sensor |
| Order code | KG-3080NFPKGS2T/10M |
| Measuring principle | Capacitive |
| Electrical design | PNP |
| Output function | NO / NC selectable |
| Sensing range | 8 mm |
| Communication | IO-Link |
| Operating voltage | 10...36 V DC |
| Current consumption | <20 mA |
| Protection class | II |
| Reverse polarity | Yes |
| Voltage drop | 2.5 V max. |
| Output current | 200 mA |
| Switching frequency | 10 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Hysteresis | 1...15% |
| Switch-point drift | -20...20% |
| Ambient temperature | -25...80°C |
| Protection rating | IP65 / IP67 |
| Housing | Threaded |
| Thread | M18 × 1 |
| Dimensions | M18 × 1 / L = 77 mm |
| Mounting | Non-flush |
| Cable | 10 m PVC |
| Cable type | 3-wire |
| Interface | IO-Link |
| Indicator | LED ring |
| Application | Remote detection |
