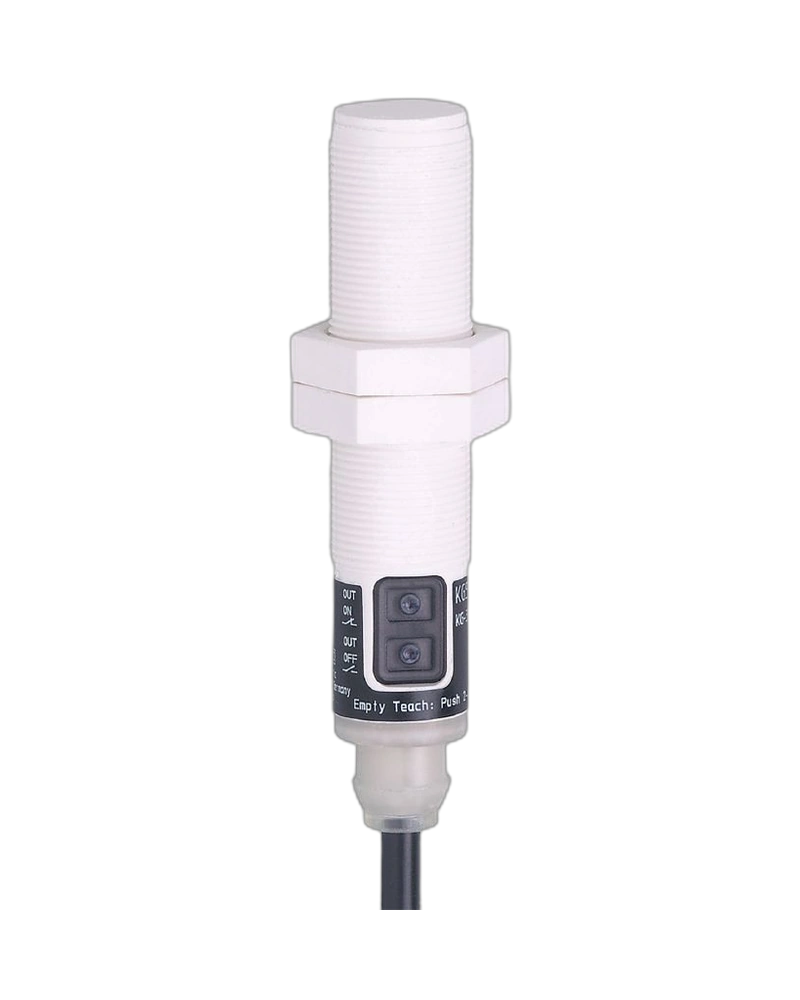

The IFM KG5069 is an IO-Link capacitive sensor designed for conductive-media detection. It provides an 8 mm sensing range with programmable normally open and normally closed operation. The sensor uses a PNP output and operates from 10 to 36 V DC. Its M18 × 1 threaded housing provides compact non-flush installation. IO-Link, teach functionality and electronic locking provide advanced commissioning and maintenance capabilities.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The KG5069 is optimized for conductive media with dielectric constants greater than 20. This makes it suitable for liquids and other highly conductive materials. The 8 mm sensing range supports close-range detection. The output can be programmed as NO or NC. Capacitive sensing provides non-contact operation.
The sensor provides IO-Link communication through COM1 at 4.8 kBaud. SIO mode allows conventional switching operation. Digital parameterization simplifies commissioning and service. The sensor supports teach functionality and electronic locking. These features make it suitable for modern automation systems.
The sensor uses an M18 × 1 threaded body with approximately 77 mm length. It is non-flush mountable and protected to IP65/IP67. A yellow LED ring provides switching-status indication. The sensor uses the S2T cable configuration. Its threaded construction provides secure machine installation.
8 mm sensing range
PNP output
NO / NC selectable
IO-Link
COM1 4.8 kBaud
10...36 V DC
200 mA output
10 Hz switching
M18 × 1 thread
77 mm length
Teach function
Electronic lock
Yellow LED ring
IP65 / IP67
High noise immunity
Optimized for conductive media
Conductive liquid detection
Tank level monitoring
Process vessels
Filling systems
Packaging machinery
Material presence detection
Process automation
Chemical equipment
Food-processing machinery
Industrial automation
The KG5069 is particularly suited to media with dielectric constants above 20. This makes it effective for conductive liquids and process materials. The 8 mm range allows close-range level detection. Programmable output behavior allows flexible PLC integration. IO-Link adds digital configuration and diagnostic capability.
Teach functionality simplifies sensor setup. IO-Link allows parameters to be managed digitally. Electronic locking prevents unintended configuration changes. The LED ring gives direct visual feedback. These functions reduce commissioning and service effort.
| Specification | KG5069 |
|---|---|
| Product type | Capacitive sensor |
| Order code | KG-3080NFPKGS2T |
| Measuring principle | Capacitive |
| Electrical design | PNP |
| Output function | NO / NC selectable |
| Sensing range | 8 mm |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Transmission | COM1, 4.8 kBaud |
| Operating voltage | 10...36 V DC |
| Current consumption | <20 mA |
| Protection class | II |
| Reverse polarity | Yes |
| Voltage drop | 2.5 V max. |
| Output current | 200 mA |
| Switching frequency | 10 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Hysteresis | 1...15% |
| Switch-point drift | -20...20% |
| Ambient temperature | -25...80°C |
| Protection rating | IP65 / IP67 |
| Housing | Threaded |
| Thread | M18 × 1 |
| Dimensions | M18 × 1 / L = 77 mm |
| Mounting | Non-flush |
| Media | Conductive media |
| Dielectric constant | >20 |
| Indicator | Yellow LED ring |
| Interface | IO-Link |
