The IFM KG5065 is an IO-Link capacitive sensor designed for flexible material detection and level monitoring. It provides a 12 mm sensing range and supports programmable normally open or normally closed operation. The sensor uses PNP electrical design and operates from 10 to 36 V DC. Its M18 × 1 threaded housing provides non-flush mounting and an M12 connector. IO-Link enables digital parameterization and diagnostics.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The KG5065 provides a 12 mm sensing range. The sensor is suitable for detecting dry bulk materials and liquids. Its programmable output function allows NO or NC operation. The sensor is optimized for media such as oils and plastic granulates. The adjustable sensing principle provides flexibility for machine-level detection.
IO-Link allows digital parameterization and diagnostics. The interface supports intelligent integration with automation systems. Conventional switching operation remains available through the sensor's switching output. This makes the KG5065 suitable for both standard and connected automation architectures. Parameter management can simplify commissioning and maintenance.

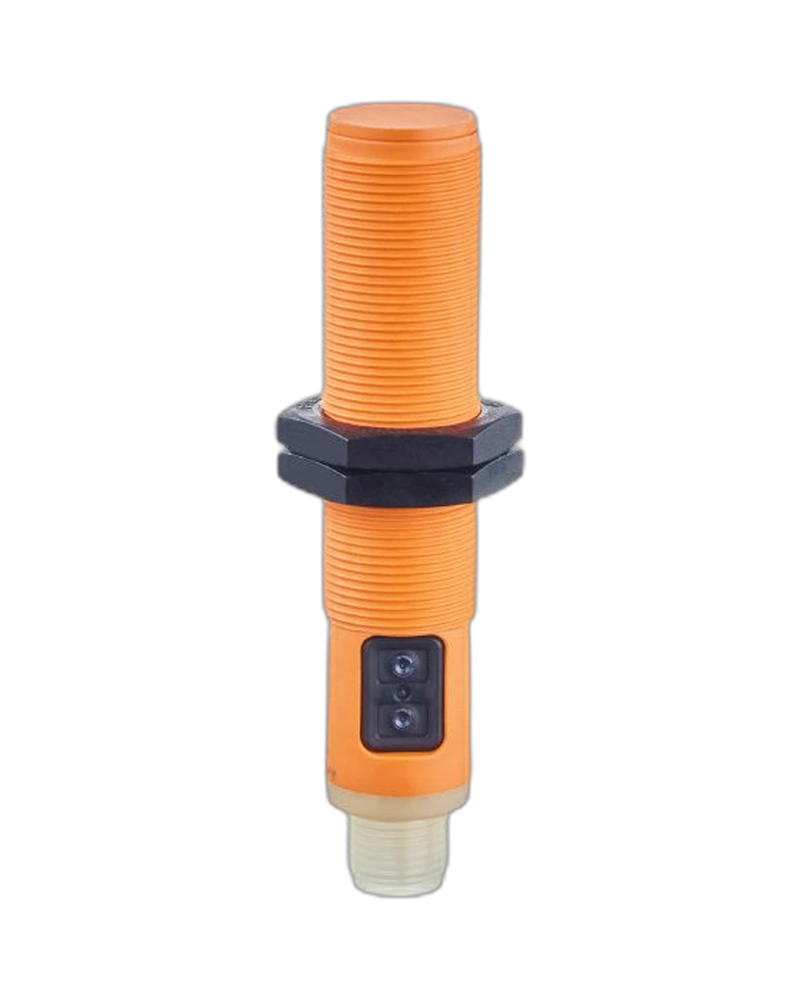

The sensor uses an M18 × 1 threaded housing with an approximately 87 mm overall length. It is designed for non-flush mounting. The sensor uses an M12 connector. IP65/IP67 protection supports industrial operation. The sensing face and housing are designed for demanding material-detection applications.
12 mm sensing range
PNP output
NO / NC programmable
IO-Link
10...36 V DC
M18 × 1 thread
M12 connector
Non-flush mounting
IP65 / IP67 protection
200 mA output
10 Hz switching
Short-circuit protection
Overload protection
Reverse polarity protection
Yellow LED
Teach function
Electronic lock
Liquid level monitoring
Dry bulk material detection
Oil detection
Plastic granulate detection
Tank monitoring
Container detection
Packaging machinery
Process automation
Industrial automation
IO-Link allows parameters to be accessed digitally. This can simplify sensor replacement because configuration data can be managed through the automation system. Diagnostics can also reduce troubleshooting time. The programmable output provides additional control flexibility. The combination is well suited to modern connected machinery.
The sensor is optimized for dry bulk materials and liquids. Its 12 mm sensing range provides additional detection distance compared with smaller KG models. The M18 housing supports standard threaded mounting. The M12 connector simplifies connection changes. This makes the KG5065 useful for process and machine automation.
| Specification | KG5065 |
|---|---|
| Product type | Capacitive sensor |
| Order code | KG-3120NFAKGP2T/US |
| Measuring principle | Capacitive |
| Electrical design | PNP |
| Output function | NO / NC programmable |
| Sensing range | 12 mm |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Transmission | COM1, 4.8 kBaud |
| Operating voltage | 10...36 V DC |
| Current consumption | <20 mA |
| Protection class | II |
| Reverse polarity | Yes |
| Voltage drop | 2.5 V max. |
| Output current | 200 mA |
| Switching frequency | 10 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Hysteresis | 1...15% |
| Switch-point drift | -20...20% |
| Ambient temperature | -25...80°C |
| Protection rating | IP65 / IP67 |
| Housing | Threaded |
| Thread | M18 × 1 |
| Mounting | Non-flush |
| Dimensions | M18 × 1 / L = 87 mm |
| Connection | M12 |
| Sensing face | PBT |
| Application media | Dry bulk materials / liquids |
