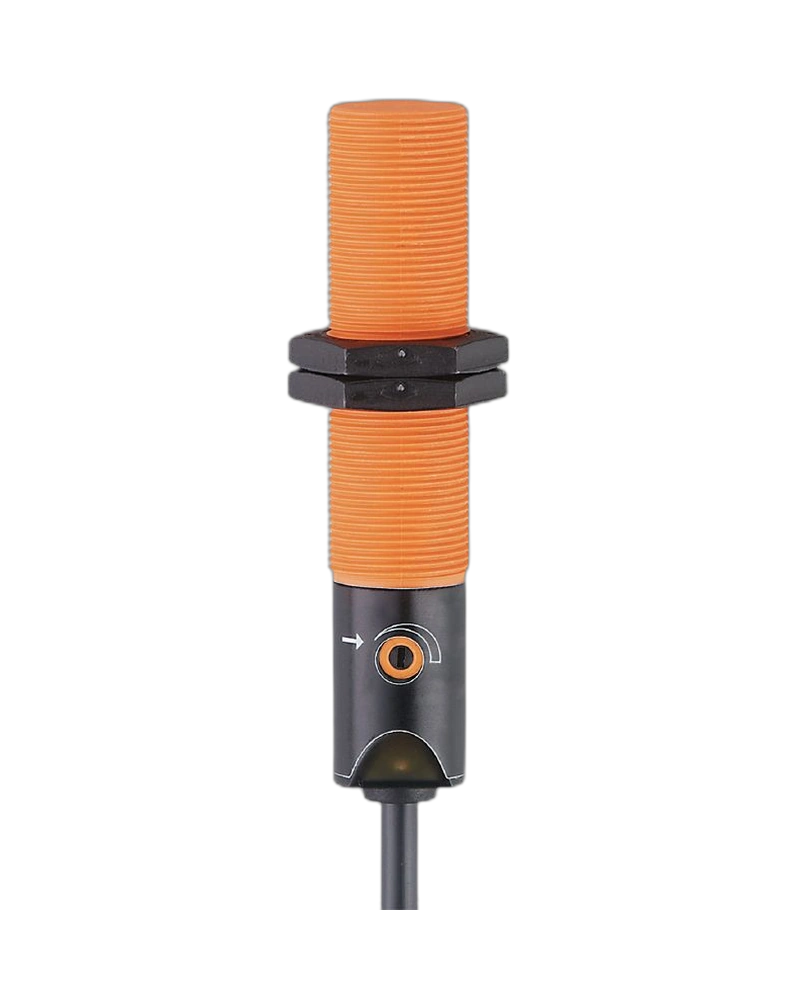

The IFM KG5045 is an NPN capacitive sensor designed for non-contact detection of dry bulk materials and liquids. It provides an adjustable 8 mm sensing range and a normally open output. The sensor operates from 10 to 36 V DC and supports 250 mA continuous output current. Its M18 × 1 threaded housing provides a compact non-flush mounting solution. A 2 m PVC cable provides a three-wire industrial connection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The KG5045 uses an NPN normally open output. It is suitable for control systems using sinking-type sensor inputs. The sensing range is 8 mm and can be adjusted during setup. The real sensing range is 8 ±10%, with an operating distance of 0 to 6.5 mm. This provides flexible close-range material detection.
Operating voltage is 10 to 36 V DC. Current consumption is below 10 mA at 24 V and below 15 mA at 36 V. The output supports 250 mA continuous current and 50 Hz switching frequency. Short-circuit and overload protection are provided. Reverse polarity protection is also included.
The sensor uses an M18 × 1 threaded PBT housing with 84 mm length. It is non-flush mountable and protected to IP67. A yellow LED indicates switching status. The 2 m PVC cable uses three 0.34 mm² conductors. The threaded body provides secure mounting.
8 mm sensing range
NPN normally open
10...36 V DC
Adjustable sensing
250 mA output
50 Hz switching frequency
M18 × 1 thread
84 mm length
PBT housing
2 m PVC cable
3 × 0.34 mm²
Yellow LED
IP67 protection
Non-flush mounting
Short-circuit protection
Overload protection
Reverse polarity protection
Dry bulk material detection
Liquid level monitoring
Tank monitoring
Container detection
Packaging equipment
Filling machines
Position sensing
Process automation
Conveyor systems
Industrial automation
The NPN output is designed for sinking-input control systems. This makes the KG5045 suitable for PLC architectures requiring NPN sensors. Adjustable sensing allows the switching point to be tuned. The yellow LED provides direct feedback. The compact threaded body simplifies machine installation.
The three-wire PVC cable provides a standard NPN sensor interface. The 2 m length supports direct control-panel connection. The M18 housing provides secure mechanical mounting. IP67 protection supports industrial operation. This configuration is well suited to standard machine automation.
| Specification | KG5045 |
|---|---|
| Product type | Capacitive sensor |
| Order code | KG-3008-ANKG/NI |
| Measuring principle | Capacitive |
| Electrical design | NPN |
| Output function | Normally open |
| Sensing range | 8 mm |
| Adjustable | Yes |
| Factory setting | 8 mm |
| Real sensing range | 8 ±10% |
| Operating distance | 0...6.5 mm |
| Hysteresis | 1...15% |
| Switch-point drift | -15...15% |
| Glass correction | 0.4 |
| Water correction | 1 |
| Ceramics correction | 0.2 |
| PVC correction | 0.2 |
| Operating voltage | 10...36 V DC |
| Current consumption | <10 mA at 24 V |
| Protection class | II |
| Reverse polarity | Yes |
| Voltage drop | 2.5 V max. |
| Output current | 250 mA |
| Switching frequency | 50 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Ambient temperature | -25...80°C |
| Protection rating | IP67 |
| Housing | PBT |
| Thread | M18 × 1 |
| Dimensions | M18 × 1 / L = 84 mm |
