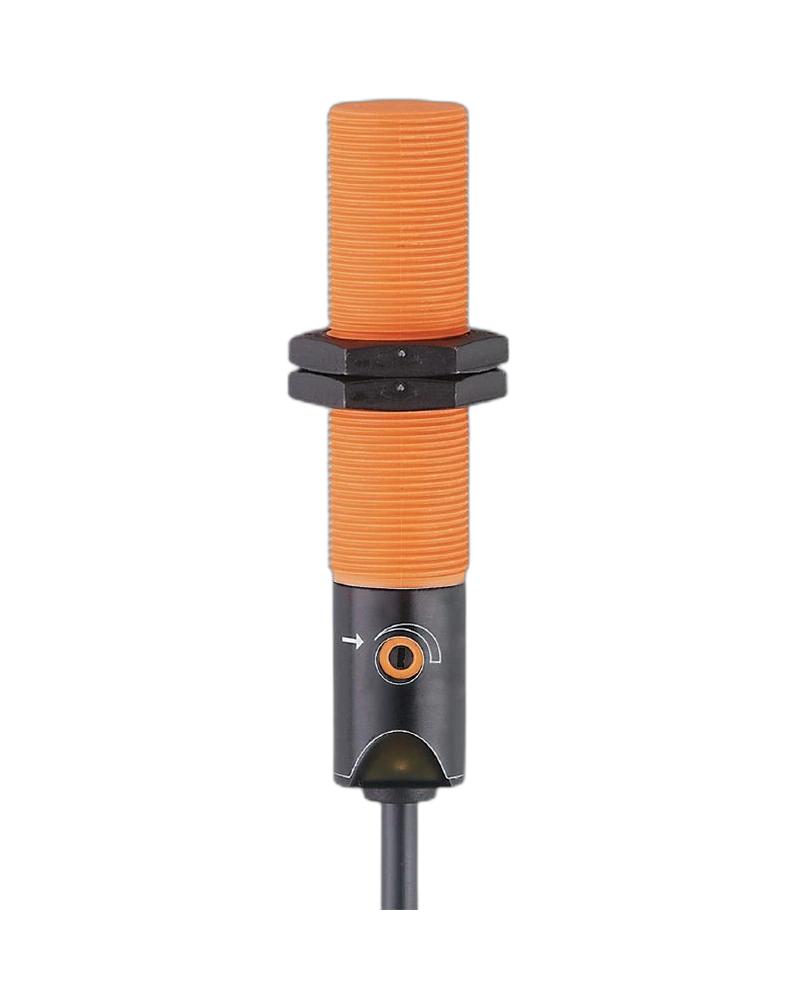

The IFM KG5044 is a threaded capacitive sensor designed for non-contact detection of industrial materials. It provides an 8 mm sensing range and uses a PNP normally closed output. The sensor operates from 10 to 36 V DC and supports a 250 mA output current. Its M18 × 1 PBT housing provides a compact industrial installation format. A 2 m PVC cable provides direct connection to the control system.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The KG5044 provides an 8 mm sensing range for level and position applications. Its real sensing range is 8 ±10%. Operating distance is approximately 0 to 6.5 mm. The sensor uses capacitive measurement to detect non-metallic materials. Material correction factors are specified for common targets.
The sensor uses a DC PNP normally closed output. Operating voltage is 10 to 36 V DC. The output supports 250 mA continuous current and 50 Hz switching frequency. Short-circuit and overload protection are provided. Reverse polarity protection is also included.
The sensor uses an M18 × 1 threaded PBT housing measuring 84 mm long. It is designed for non-flush mounting and provides IP67 protection. A yellow LED indicates switching status. The 2 m PVC cable uses three 0.34 mm² conductors. The threaded housing is suitable for secure machine mounting.
8 mm sensing range
PNP normally closed
10...36 V DC
250 mA output
50 Hz switching frequency
M18 × 1 thread
84 mm length
PBT housing
2 m PVC cable
3 × 0.34 mm² conductors
Yellow LED
IP67 protection
Non-flush mounting
Adjustable sensing
Short-circuit protection
Overload protection
Reverse polarity protection
Level monitoring
Liquid detection
Bulk material detection
Position sensing
Tank monitoring
Packaging equipment
Filling systems
Conveyors
Process automation
Industrial machinery
The NC output provides a useful alternative to normally open sensor configurations. It can be integrated into control systems requiring inverse logic. The 8 mm sensing range supports close-range detection. The PNP output provides a conventional DC switching interface. The LED assists with commissioning.
The fixed 2 m PVC cable provides direct connection to the control system. Three conductors support the PNP sensor wiring arrangement. The M18 threaded body provides secure mechanical installation. IP67 protection supports industrial environments. This configuration is useful for standard machine installations.
| Specification | KG5044 |
|---|---|
| Product type | Capacitive sensor |
| Order code | KG-3008-APKG/NI |
| Measuring principle | Capacitive |
| Electrical design | PNP |
| Output function | Normally closed |
| Sensing range | 8 mm |
| Adjustable | Yes |
| Real sensing range | 8 ±10% |
| Operating distance | 0...6.5 mm |
| Hysteresis | 1...15% |
| Switch-point drift | -15...15% |
| Glass correction | 0.4 |
| Water correction | 1 |
| Ceramics correction | 0.2 |
| PVC correction | 0.2 |
| Operating voltage | 10...36 V DC |
| Protection class | II |
| Reverse polarity | Yes |
| Voltage drop | 2.5 V max. |
| Output current | 250 mA |
| Switching frequency | 50 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Ambient temperature | -25...80°C |
| Protection rating | IP67 |
| Housing | PBT |
| Thread | M18 × 1 |
| Dimensions | M18 × 1 / L = 84 mm |
| Cable | 2 m PVC |
