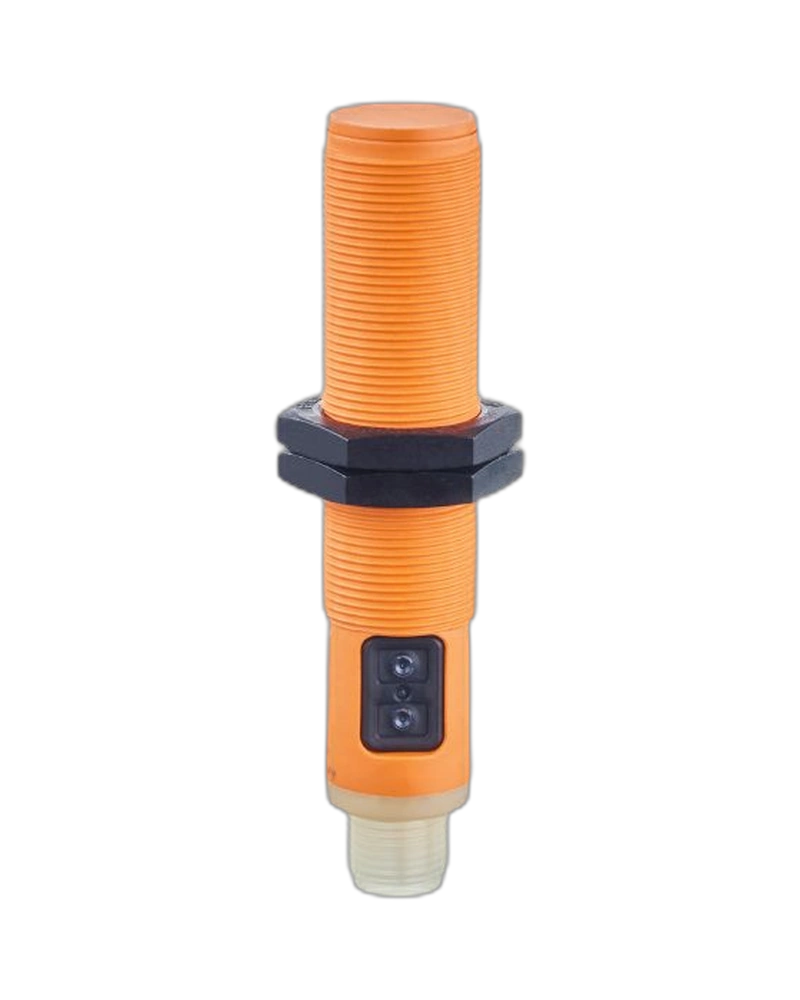

The IFM KG0016 is a programmable AC/DC capacitive sensor with an extended adjustable sensing range. It provides a 4 to 24 mm programmable detection range using integrated programming buttons. The sensor supports selectable normally open and normally closed operation. It operates from 30 to 250 V AC and 20 to 250 V DC. Its M18 × 1 threaded body and special connector configuration provide flexible industrial installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The KG0016 uses programming buttons to configure its sensing range. The adjustable range extends from 4 to 24 mm. The sensor is intended for detection through non-metallic container walls and bypass pipes. It is optimized for dry bulk materials and liquids with suitable dielectric properties. Oils are among the recommended media.
The sensor operates from 30 to 250 V AC and 20 to 250 V DC. The output can be programmed as normally open or normally closed. Continuous switching current is 100 mA, with 150 mA permitted up to 40°C. Switching frequency is 10 Hz on both AC and DC. Reverse polarity protection is included, while short-circuit protection is not.
The KG0016 uses an M18 × 1 threaded body measuring 87 mm long. A programming-button interface allows sensing-range adjustment. The sensor uses the specified 1/2-inch Micro AC connection. Its operating temperature is -25 to 80°C, with the sensing face capable of higher media temperatures. The design is suitable for non-flush mounting.
4...24 mm programmable sensing range
AC/DC operation
NO / NC selectable
Programming buttons
M18 × 1 housing
30...250 V AC
20...250 V DC
100 mA continuous output
150 mA up to 40°C
10 Hz switching frequency
Reverse polarity protection
Non-flush mounting
Material-level detection
Bypass-pipe detection
Container-wall detection
Container-wall detection
Bypass-pipe monitoring
Oil detection
Dry bulk material detection
Liquid level monitoring
Tank monitoring
Process automation
Packaging machinery
Filling equipment
Industrial automation
The integrated programming buttons allow the sensor to be configured without an external potentiometer. The 4 to 24 mm range provides greater flexibility than fixed-range sensors. This is useful where target distance changes between applications. NO and NC output selection further improves control-system flexibility. The programming approach simplifies commissioning.
The KG0016 is intended for dry bulk materials and liquids. Its design is particularly suitable for media with dielectric constants below 20 and for oils. Detection through non-metallic container walls is supported. Bypass-pipe installation is also specified. These characteristics make the sensor useful for process-level monitoring.
| Specification | KG0016 |
|---|---|
| Product type | Capacitive sensor |
| Order code | KG-2120NFBOAP2T/LS100 |
| Measuring principle | Capacitive |
| Electrical design | AC/DC |
| Output function | NO / NC selectable |
| Sensing range | 4...24 mm |
| Adjustment | Programming buttons |
| Housing | Threaded |
| Dimensions | M18 × 1 / L = 87 mm |
| AC voltage | 30...250 V AC |
| DC voltage | 20...250 V DC |
| AC frequency | 47...63 Hz |
| Protection class | II |
| Reverse polarity | Yes |
| Voltage drop DC | 8 V max. |
| Voltage drop AC | 10 V max. |
| Continuous current | 100 mA |
| Increased current | 150 mA up to 40°C |
| Short-time current | 1000 mA |
| Switching frequency AC | 10 Hz |
| Switching frequency DC | 10 Hz |
| Short-circuit protection | No |
| Overload protection | No |
| Ambient temperature | -25...80°C |
| Sensing-face temperature | -25...110°C |
| Installation | Non-flush |
| Application | Container-wall detection |
| Application | Bypass-pipe detection |
| Recommended media | Oils / dielectric constant <20 |
| Connection | 1/2-inch Micro AC |
