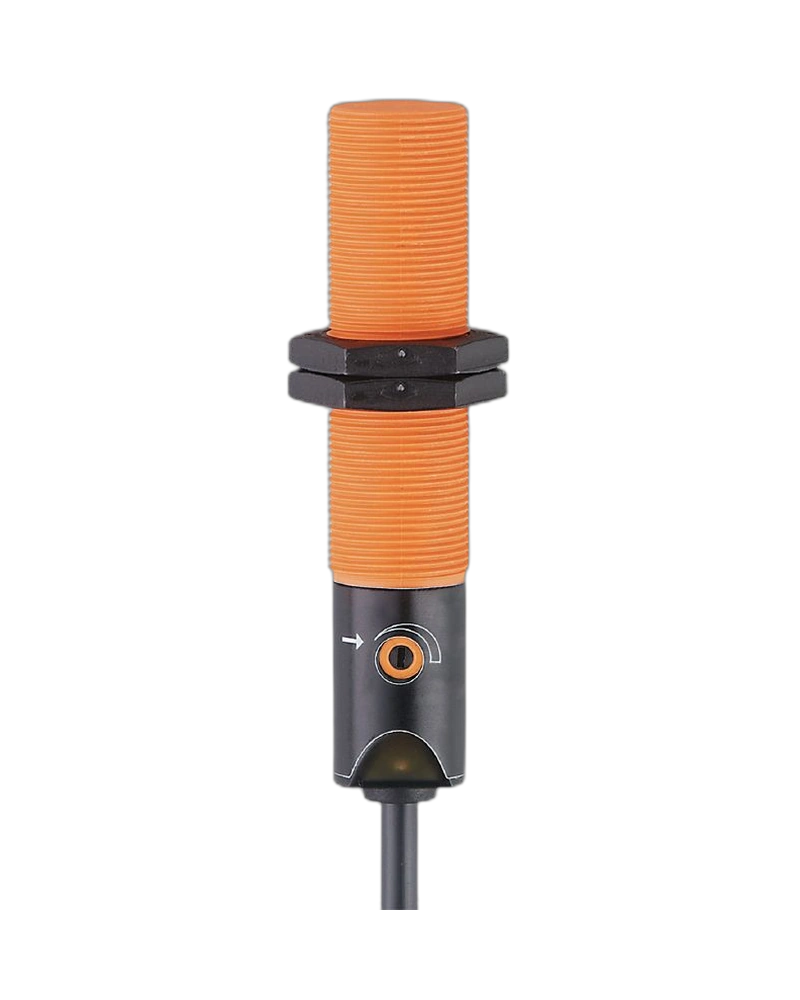

The IFM KG0010 is a cylindrical AC/DC capacitive sensor with a normally closed output. It provides an 8 mm sensing range for non-contact detection of dry bulk materials and liquids. The sensor operates from 20 to 250 V AC/DC using two-wire technology. Its M18 × 1 PBT housing provides a compact threaded mounting solution. A 2 m PVC cable and IP67 protection support dependable industrial installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The KG0010 provides an 8 mm sensing range. The real sensing range is 8 ±10% and the operating distance is 0 to 6.5 mm. Hysteresis is 1 to 15% of Sr. Switch-point drift is -15 to 15%. The sensing range is suitable for level and material-presence applications.
The sensor provides a normally closed AC/DC switching function. It operates from 20 to 250 V AC/DC using two-wire technology. Continuous output current is 150 mA on AC and 100 mA on DC. Switching frequency is 25 Hz on AC and 50 Hz on DC. Short-circuit and overload protection are not integrated.
The sensor uses an M18 × 1 threaded PBT housing measuring 84 mm in length. It is designed for non-flush mounting. A yellow LED indicates switching status. The 2 m PVC cable provides a direct electrical connection. IP67 protection supports industrial level and presence detection.
8 mm sensing range
Normally closed output
AC/DC operation
20...250 V AC/DC
Two-wire technology
M18 × 1 thread
PBT housing
84 mm length
2 m PVC cable
IP67 protection
Yellow LED
25 Hz AC switching
50 Hz DC switching
Non-flush mounting
Adjustable sensing
Tank monitoring
Liquid level detection
Dry bulk material detection
Container monitoring
Packaging machinery
Filling equipment
Conveyor systems
Material presence detection
Process automation
Industrial automation
The normally closed output provides an inverse switching state compared with NO sensor versions. This is useful in control systems requiring NC logic. The two-wire AC/DC design simplifies compatible wiring. The 8 mm sensing range provides close-proximity detection. The yellow LED assists commissioning.
The M18 × 1 threaded body provides secure mechanical mounting. PBT construction provides a practical industrial enclosure. IP67 protection helps protect against dust and water ingress. The 2 m PVC cable provides a direct connection. This makes the KG0010 suitable for standard industrial machine installations.
| Specification | KG0010 |
|---|---|
| Product type | Capacitive sensor |
| Order code | KG-2008-BBOA/NI |
| Measuring principle | Capacitive |
| Electrical design | AC/DC |
| Output function | Normally closed |
| Technology | Two-wire |
| Sensing range | 8 mm |
| Real sensing range | 8 ±10% |
| Operating distance | 0...6.5 mm |
| Hysteresis | 1...15% |
| Switch-point drift | -15...15% |
| Glass correction | 0.4 |
| Water correction | 1 |
| Ceramics correction | 0.2 |
| PVC correction | 0.2 |
| Operating voltage | 20...250 V AC/DC |
| Protection class | II |
| Reverse polarity | No |
| Voltage drop DC | 6 V max. |
| Voltage drop AC | 6 V max. |
| Minimum load current | 4 mA |
| Continuous AC current | 150 mA |
| Continuous DC current | 100 mA |
| Switching frequency AC | 25 Hz |
| Switching frequency DC | 50 Hz |
| Short-circuit protection | No |
| Overload protection | No |
| Ambient temperature | -25...80°C |
| Protection rating | IP67 |
| Housing | PBT |
| Dimensions | M18 × 1 / L = 84 mm |
