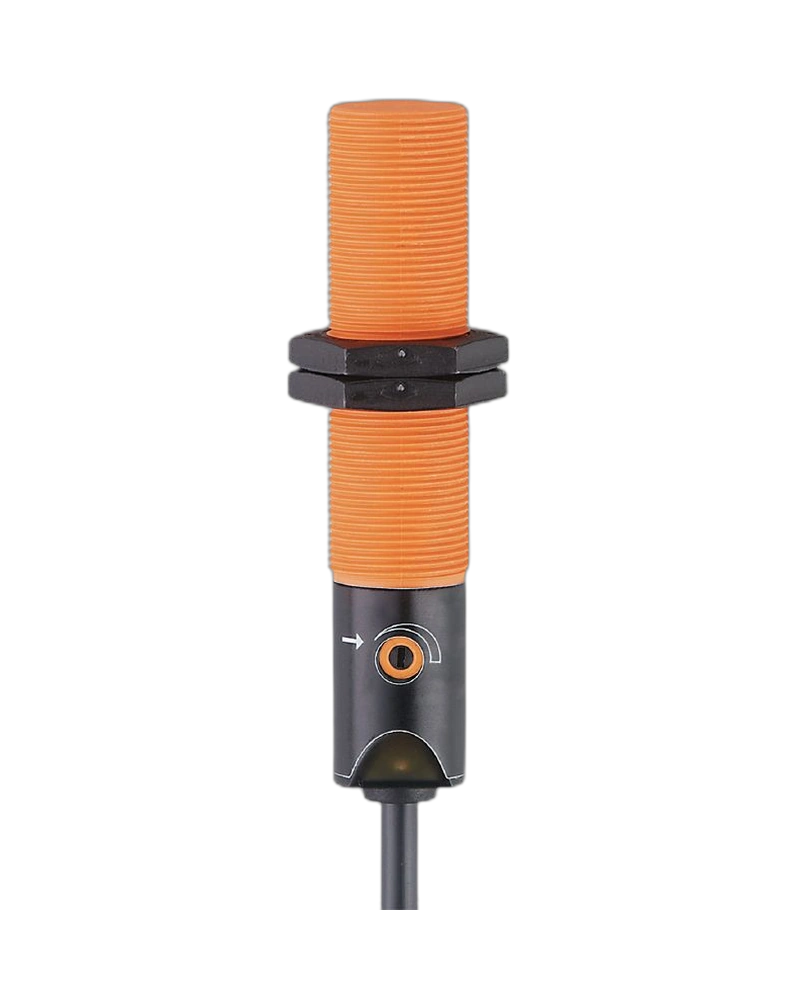

The IFM KG0009 is a cylindrical capacitive sensor designed for non-contact detection and level monitoring. It provides an 8 mm sensing range with a normally open AC/DC output. The sensor operates from 20 to 250 V AC/DC and uses two-wire technology. Its M18 × 1 threaded PBT housing provides compact and secure mounting. A 2 m PVC cable and IP67 protection support industrial installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The sensor provides an 8 mm nominal sensing range. Its real sensing range is 8 ±10%, with an operating distance of 0 to 6.5 mm. Hysteresis is 1 to 15% of Sr. Correction factors are specified for glass, water, ceramics and PVC. The sensing range is suitable for common level and presence applications.
The KG0009 uses a normally open AC/DC output. Operating voltage is 20 to 250 V AC/DC. Continuous current ratings depend on AC/DC operation, with the documented output supporting higher AC current than DC. Switching frequency is 25 Hz on AC and 50 Hz on DC. Short-circuit and overload protection are not integrated.
The sensor uses an M18 × 1 threaded PBT housing measuring 84 mm in length. It is designed for non-flush mounting. A yellow LED indicates switching status. A 2 m PVC cable provides the electrical connection. IP67 protection supports industrial environments.
8 mm sensing range
Normally open output
AC/DC operation
20...250 V AC/DC
Two-wire technology
M18 × 1 thread
84 mm length
PBT housing
2 m PVC cable
Yellow LED
IP67 protection
Non-flush mounting
25 Hz AC switching
50 Hz DC switching
Adjustable sensing
Material correction factors
Liquid level monitoring
Dry bulk material detection
Tank monitoring
Container sensing
Packaging equipment
Filling machinery
Material presence detection
Conveyor systems
Process automation
Industrial automation
The KG0009 provides contactless detection of liquids and dry materials. The 8 mm sensing range is suitable for close-range level detection. The M18 threaded housing provides a secure installation point. Its two-wire design simplifies compatible control wiring. The sensor can be used for both continuous equipment and machine-level monitoring.
The PBT housing provides a robust and lightweight sensor structure. IP67 protection supports operation in environments exposed to dust and water. The 2 m PVC cable provides direct connection to the control circuit. The yellow LED simplifies setup and troubleshooting. The threaded body allows easy mounting and replacement.
| Specification | KG0009 |
|---|---|
| Product type | Capacitive sensor |
| Order code | KG-2008-ABOA/NI |
| Measuring principle | Capacitive |
| Electrical design | AC/DC |
| Output function | Normally open |
| Technology | Two-wire |
| Sensing range | 8 mm |
| Real sensing range | 8 ±10% |
| Operating distance | 0...6.5 mm |
| Hysteresis | 1...15% |
| Switch-point drift | -15...15% |
| Glass correction | 0.4 |
| Water correction | 1 |
| Ceramics correction | 0.2 |
| PVC correction | 0.2 |
| Operating voltage | 20...250 V AC/DC |
| Protection class | II |
| Reverse polarity | No |
| Voltage drop DC | 6 V max. |
| Voltage drop AC | 6 V max. |
| Continuous AC current | 150 mA |
| Continuous DC current | 100 mA |
| Switching frequency AC | 25 Hz |
| Switching frequency DC | 50 Hz |
| Short-circuit protection | No |
| Overload protection | No |
| Ambient temperature | -25...80°C |
| Protection rating | IP67 |
| Housing | PBT |
| Dimensions | M18 × 1 / L = 84 mm |
| Mounting | Non-flush |
