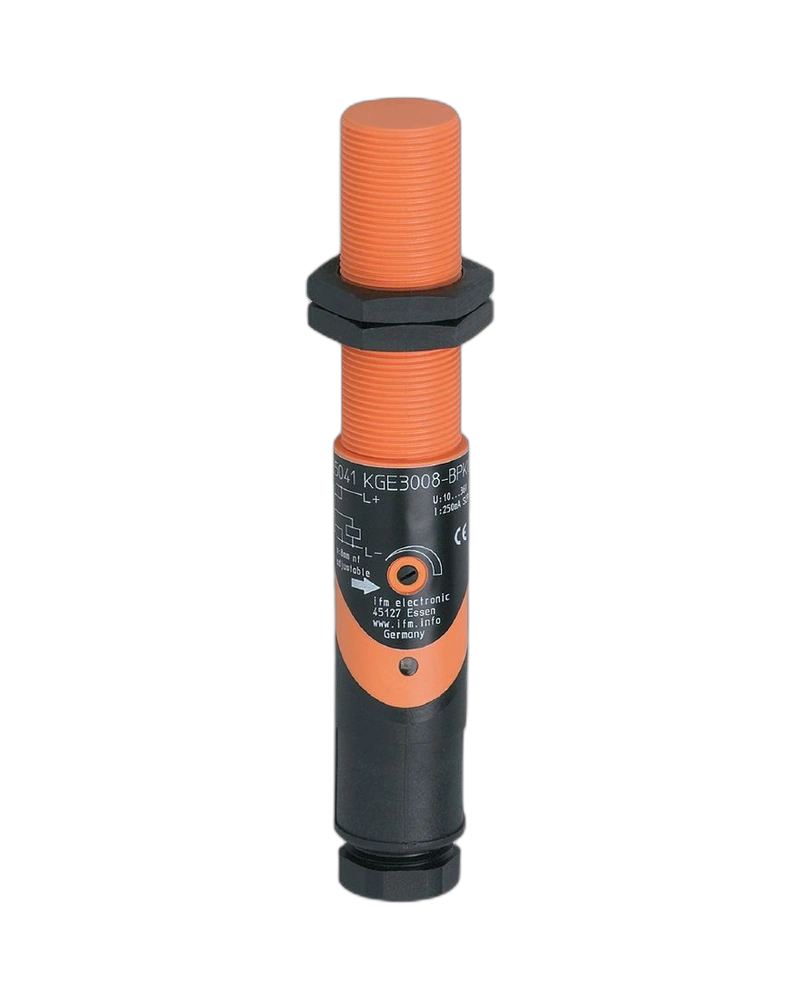

The IFM KG0008 is a cylindrical AC/DC capacitive sensor designed for non-contact detection of materials. It provides an 8 mm sensing range in a compact M18 threaded housing. The sensor uses a normally open switching function and supports a wide 20 to 250 V AC/DC supply range. Its two-wire configuration simplifies connection to suitable control circuits. IP67 protection supports use in demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The KG0008 detects suitable materials without mechanical contact. Its 8 mm sensing range provides close-range detection for level and presence applications. The cylindrical M18 housing supports secure threaded installation. Capacitive technology enables detection of non-metallic materials. The sensor is suitable for both liquid and dry-material applications.
The sensor operates from 20 to 250 V AC/DC. Its normally open output supports the specified two-wire switching configuration. AC and DC control systems can therefore use the same sensor format. External circuit protection is required according to the electrical specification. The wide voltage range provides flexibility for industrial control applications.
The KG0008 uses a threaded M18 housing. The non-flush installation format provides straightforward machine mounting. A yellow LED indicates switching status. The cylindrical construction is suitable for standard threaded sensor brackets. IP67 protection supports reliable industrial installation.
8 mm sensing range
AC/DC operation
Normally open
Two-wire technology
20...250 V AC/DC
M18 × 1 threaded housing
Non-flush mounting
IP67 protection
Yellow LED
Capacitive measurement
Wide supply range
Adjustable sensing capability
Material detection
Level monitoring
Industrial cylindrical format
Liquid level detection
Dry bulk material detection
Tank monitoring
Container detection
Packaging machinery
Filling systems
Material presence detection
Process automation
Conveyor systems
Industrial automation
The two-wire configuration provides a simple electrical interface. This can reduce wiring complexity in suitable AC/DC control circuits. The sensor can be mounted directly using its threaded body. The yellow LED provides clear switching feedback. This makes the KG0008 practical for straightforward industrial detection tasks.
The IP67 housing supports installations exposed to dust and water. Capacitive technology allows detection of many non-metallic materials. The M18 threaded body provides mechanical stability. The 8 mm sensing range is useful for close-proximity applications. The sensor is suitable for general machine and process automation.
| Specification | KG0008 |
|---|---|
| Product type | Capacitive sensor |
| Order code | KDE2008-FBOA/NI |
| Measuring principle | Capacitive |
| Electrical design | AC/DC |
| Output function | Normally open |
| Technology | Two-wire |
| Sensing range | 8 mm |
| Real sensing range | 8 ±10% |
| Operating distance | 0...6.5 mm |
| Hysteresis | 1...15% |
| Switch-point drift | -15...15% |
| Glass correction | 0.4 |
| Water correction | 1 |
| Ceramics correction | 0.2 |
| PVC correction | 0.2 |
| Operating voltage | 20...250 V AC/DC |
| Protection class | II |
| Reverse polarity | No |
| Voltage drop | Model-specific AC/DC output rating |
| Output type | AC/DC switching |
| Switching frequency | 25 Hz AC / 50 Hz DC |
| Short-circuit protection | No |
| Overload protection | No |
| Ambient temperature | -25...80°C |
| Protection rating | IP67 |
| Housing | Threaded |
| Thread | M18 × 1 |
| Mounting | Non-flush |
| Indicator | Yellow LED |
| Connection | Two-wire industrial connection |
