The IFM KF5014 is a compact PNP capacitive sensor designed for close-range detection. It provides a 4 mm sensing range with normally open output operation. The sensor operates from 10 to 36 V DC and provides a 100 mA output current. Its M12 threaded body provides a compact industrial mounting format. An integrated potentiometer allows simple sensing-range adjustment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The sensor uses capacitive measurement for non-contact detection. Its 4 mm sensing range is suitable for close-range position and material detection. The sensing range can be adjusted to suit the application. Hysteresis is specified between 1 and 15% of Sr. Switch-point drift is specified from -20 to 20% of Sr.
The KF5014 uses a PNP normally open output. It operates from 10 to 36 V DC with less than 12 mA current consumption. The output supports 100 mA permanent current. Short-circuit and overload protection are included. Reverse polarity protection is also provided.

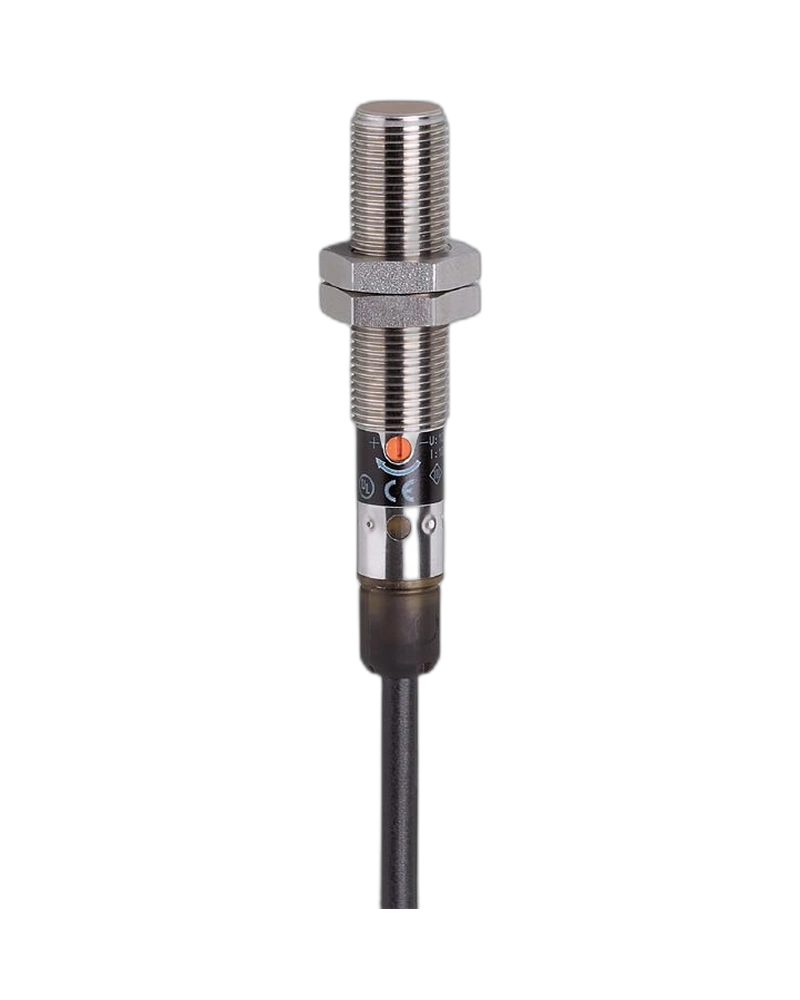

The sensor has an M12 × 1 threaded housing with approximately 69 mm overall length. Its compact construction is suitable for restricted machine spaces. A potentiometer is provided for range adjustment. The yellow LED indicates switching status. The robust threaded construction supports secure mounting.
4 mm sensing range
PNP normally open
10...36 V DC
Adjustable sensing
Potentiometer
100 mA output
50 Hz switching frequency
M12 × 1 housing
Yellow LED
Short-circuit protection
Overload protection
Reverse polarity protection
IP65 protection
Non-flush mounting
Compact design
High noise immunity
Position sensing
Material presence detection
Level monitoring
Packaging machines
Assembly equipment
Conveyors
Filling systems
Machine automation
Process equipment
Industrial control
The M12 threaded body provides a small mechanical footprint. The 4 mm sensing range is useful for precise close-proximity detection. Potentiometer adjustment allows the switching point to be tuned during setup. The LED gives immediate visual confirmation. The sensor can therefore be integrated into compact machine layouts.
The robust threaded housing supports repeated installation and replacement. Electrical protection helps reduce damage from wiring faults. The visible LED assists technicians during commissioning. Adjustable sensing simplifies replacement without requiring a different sensing range. These features support efficient machine maintenance.
| Specification | KF5014 |
|---|---|
| Product type | Capacitive sensor |
| Order code | KFA3040BBPKG |
| Measuring principle | Capacitive |
| Electrical design | PNP |
| Output function | Normally open |
| Sensing range | 4 mm |
| Adjustable | Yes |
| Factory setting | 4 mm |
| Hysteresis | 1...15% |
| Switch-point drift | -20...20% |
| Operating voltage | 10...36 V DC |
| Current consumption | <12 mA |
| Protection class | III |
| Reverse polarity | Yes |
| Voltage drop | 2.5 V max. |
| Leakage current | 0.5 mA max. |
| Output current | 100 mA |
| Short-time current | 100 mA |
| Switching frequency | 50 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Ambient temperature | -25...70°C |
| Protection rating | IP65 |
| Housing | Threaded |
| Dimensions | M12 × 1 / L = 69 mm |
| Mounting | Non-flush |
| Adjustment | Potentiometer |
| Indicator | Yellow LED |
| Connection | Industrial connector |
