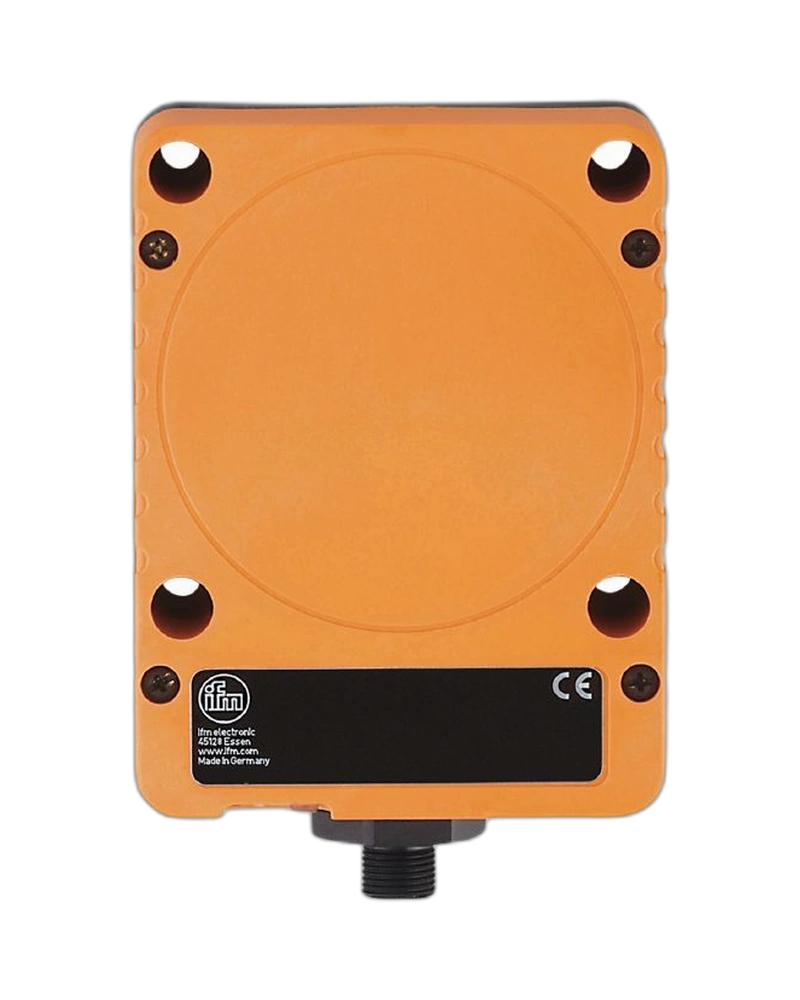

The IFM KD5044 is a rectangular capacitive sensor designed for reliable long-range detection. It provides a 60 mm sensing range and uses a DC PNP normally open output. The sensor operates from 10 to 36 V DC and provides a 250 mA continuous switching current. Its adjustable sensing range allows precise setup for different material and level applications. The industrial housing provides dependable operation in machine and process environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The KD5044 detects suitable liquids and bulk materials through capacitive measurement. Its 60 mm sensing range provides a substantial detection zone for tanks and containers. The real sensing range is specified at 60 ±10%. Hysteresis is maintained within 1 to 15% of Sr. The sensing range can be adjusted to suit the installation.
The sensor uses a DC PNP output configuration. The output is normally open and supports a 250 mA continuous current rating. Operating voltage is 10 to 36 V DC. Short-circuit and overload protection improve output-stage reliability. Reverse polarity protection further supports safe machine wiring.
The KD5044 uses a large rectangular sensor housing for stable machine mounting. The design is intended for non-flush installation. Its industrial construction supports level and presence monitoring applications. The US-100-DPS configuration provides the specified connectorized connection arrangement. The sensor is suitable for integration into conventional DC control systems.
60 mm sensing range
PNP normally open output
10...36 V DC
Adjustable sensing range
250 mA output current
10 Hz switching frequency
Short-circuit protection
Overload protection
Reverse polarity protection
IP65 protection
Rectangular housing
Non-flush mounting
Yellow switching indicator
High noise immunity
Capacitive detection
Long-range detection
Industrial construction
Tank level monitoring
Liquid detection
Dry bulk material detection
Container monitoring
Packaging equipment
Filling machines
Material presence sensing
Conveyor systems
Process automation
Industrial automation
The long sensing range allows the KD5044 to monitor material levels without direct contact. This is useful where the target surface varies during operation. Capacitive sensing works with many non-metallic materials that conventional inductive sensors cannot detect. The adjustable range helps compensate for different container geometries. This makes the sensor useful for both level and presence applications.
The rectangular housing provides stable mounting on industrial machinery. Connectorized wiring can simplify replacement and maintenance. The PNP output integrates directly with many PLC input arrangements. Electrical protection helps reduce the effect of common wiring faults. The overall design is suitable for continuous industrial operation.
| Specification | KD5044 |
|---|---|
| Product type | Capacitive sensor |
| Order code | KDE3060-BPKG/NI/US-100-DPS |
| Measuring principle | Capacitive |
| Electrical design | PNP |
| Output function | Normally open |
| Sensing range | 60 mm |
| Adjustable sensing | Yes |
| Real sensing range | 60 ±10% |
| Operating distance | 0...48.6 mm |
| Hysteresis | 1...15% |
| Switch-point drift | -15...15% |
| Glass correction | 0.4 |
| Water correction | 1 |
| Ceramics correction | 0.2 |
| PVC correction | 0.2 |
| Operating voltage | 10...36 V DC |
| Protection class | II |
| Reverse polarity | Yes |
| Voltage drop | 2.5 V max. |
| Output current | 250 mA |
| Switching frequency | 10 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Ambient temperature | -25...80°C |
| Protection rating | IP65 |
| Housing | Rectangular |
| Mounting | Non-flush |
| Detection principle | Capacitive |
| Indicator | Yellow LED |
| Connection | US-100-DPS configuration |
