The IFM KD5039 is a rectangular capacitive sensor designed for long-range non-contact material detection. It provides a 60 mm sensing range with selectable normally open and normally closed PNP output operation. The sensor operates from 10 to 36 V DC and supports a 250 mA continuous switching current. Its adjustable sensing range allows the detection point to be optimized during commissioning. The robust housing and increased immunity make it suitable for demanding industrial installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The KD5039 uses capacitive sensing to detect liquids and dry bulk materials without mechanical contact. Its nominal sensing range is 60 mm, with a real sensing range of 60 ±10%. The operating distance extends from 0 to 48.6 mm. Hysteresis is specified from 1 to 15% of the real sensing range. Correction factors are provided for glass, water, ceramics and PVC.
The sensor uses a DC PNP electrical design with selectable normally open and normally closed output behavior. It operates from 10 to 36 V DC with approximately 5 mA current consumption at 24 V. The output supports 250 mA continuous current and 10 Hz switching frequency. Short-circuit and overload protection are integrated. Reverse polarity protection is also provided.

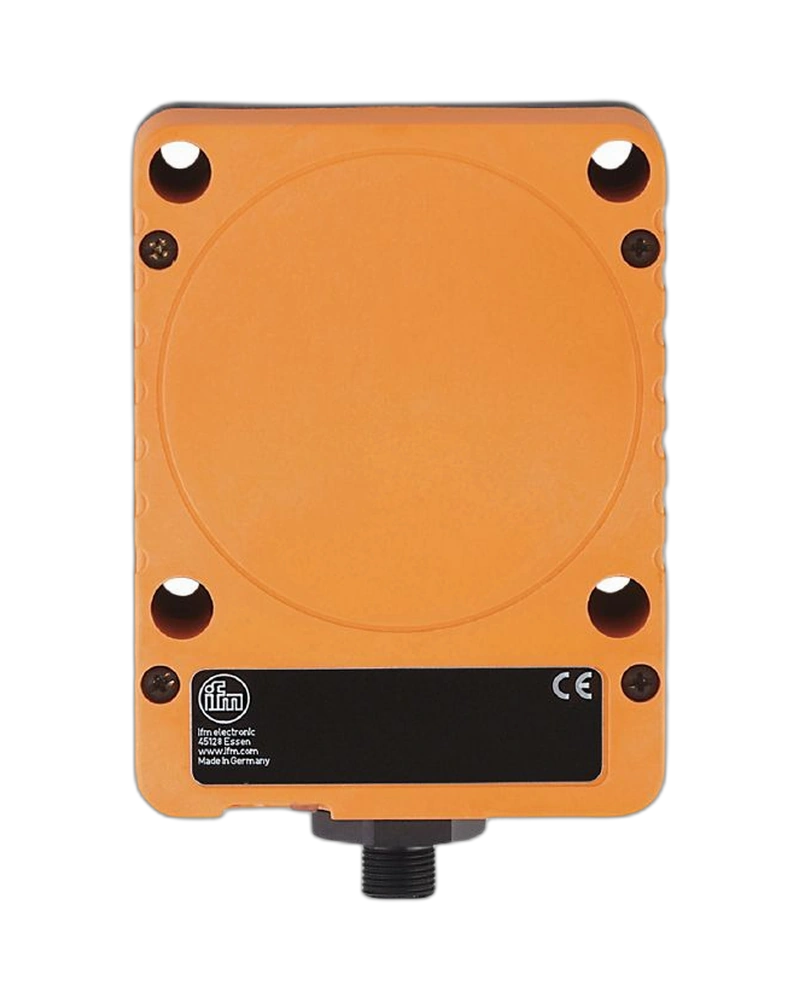

The KD5039 uses a rectangular housing measuring 105 × 80 × 40 mm. It is designed for non-flush mounting and provides IP65 protection. The housing is designed for industrial sensor installation with increased noise immunity. A yellow LED provides switching-status indication. The US-100-KPF configuration provides the specified connectorized industrial connection arrangement.
60 mm sensing range
Adjustable sensing range
PNP output
Normally open / normally closed selectable
10...36 V DC
250 mA continuous output
10 Hz switching frequency
Short-circuit protection
Overload protection
Reverse polarity protection
IP65 protection
105 × 80 × 40 mm housing
Non-flush mounting
Yellow switching LED
Increased noise immunity
Capacitive measuring principle
Material correction factors
Industrial rectangular construction
Liquid level detection
Dry bulk material monitoring
Tank level control
Container monitoring
Packaging machinery
Filling equipment
Conveyor systems
Material presence detection
Process automation
Industrial automation
The 60 mm sensing range allows the KD5039 to detect targets without positioning the sensor immediately against the material. This is useful for tanks, containers and process equipment with restricted mounting access. The adjustable sensing range provides flexibility during commissioning. Capacitive operation allows detection of both conductive and non-conductive materials. The sensor therefore supports a broad range of industrial level-monitoring tasks.
The sensing range can be adjusted to match the actual installation geometry. Selectable NO/NC operation provides control-system flexibility. The yellow LED gives direct visual confirmation of switching status. Short-circuit and overload protection help protect the output stage. These features simplify installation, setup and maintenance.
| Specification | KD5039 |
|---|---|
| Product type | Capacitive sensor |
| Order code | KDE3060-FPKG/NI/US-100-KPF |
| Measuring principle | Capacitive |
| Electrical design | PNP |
| Output function | NO / NC selectable |
| Sensing range | 60 mm |
| Adjustable sensing | Yes |
| Real sensing range | 60 ±10% |
| Operating distance | 0...48.6 mm |
| Hysteresis | 1...15% |
| Switch-point drift | -15...15% |
| Glass correction | 0.4 |
| Water correction | 1 |
| Ceramics correction | 0.2 |
| PVC correction | 0.2 |
| Operating voltage | 10...36 V DC |
| Current consumption | 5 mA at 24 V |
| Protection class | II |
| Reverse polarity | Yes |
| Voltage drop | 2.5 V max. |
| Output current | 250 mA |
| Switching frequency | 10 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Ambient temperature | -25...80°C |
| Protection rating | IP65 |
| Housing | Rectangular |
| Dimensions | 105 × 80 × 40 mm |
| Mounting | Non-flush |
| Indicator | Yellow LED |
