Detection Range

The KD5022 provides a 60 mm sensing range for non-contact detection. Its actual sensing range is 60 ±10%, with an operating distance of 0 to 48.6 mm. Hysteresis is 1 to 15% of Sr. Switch-point drift is -15 to 15%. Correction factors are provided for glass, water, ceramics and PVC.

PNP Normally Closed Output

The sensor uses a PNP normally closed output. It operates from 10 to 36 V DC with approximately 15 mA current consumption at 24 V. Continuous output current is 250 mA and switching frequency is 10 Hz. Short-circuit and overload protection are included. Reverse polarity protection is also provided.

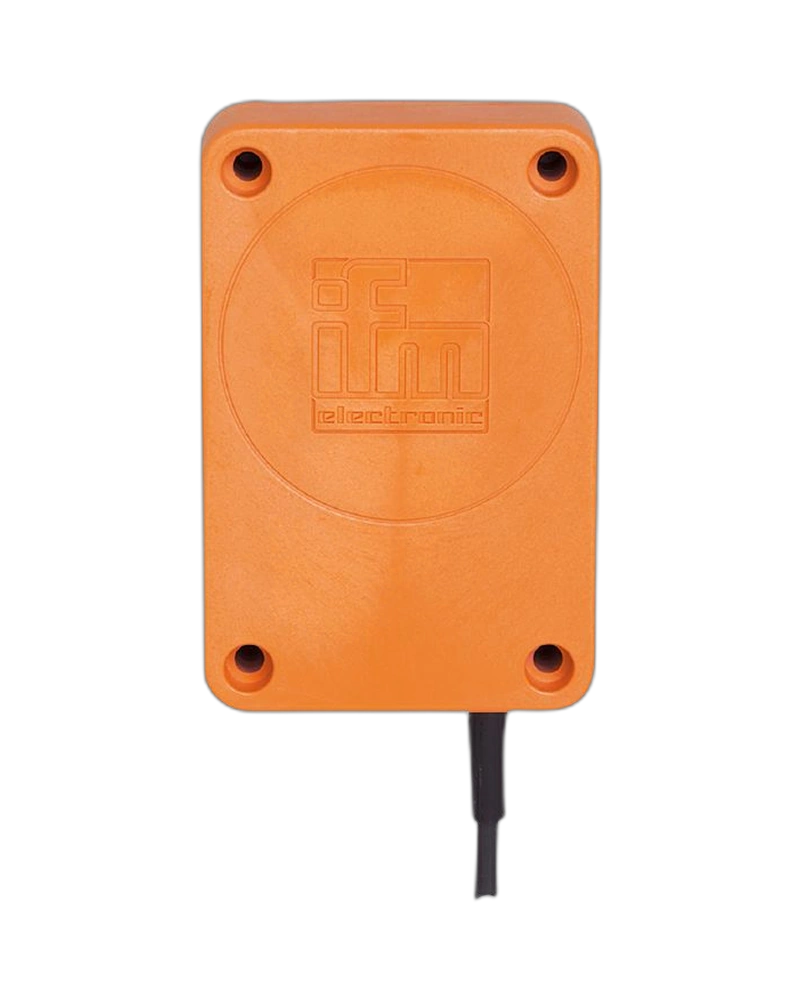

Mechanical Construction

The KD5022 uses a rectangular modified-PPE housing measuring 120 × 80 × 30 mm. It is designed for non-flush installation and has IP65 protection. The ambient temperature range is -25 to 50°C. A yellow LED provides status indication. The sensor uses a 2 m PVC cable with three 0.5 mm² conductors.

Key Features

60 mm sensing range

PNP output

Normally closed

10...36 V DC

15 mA at 24 V

250 mA continuous current

10 Hz switching frequency

Short-circuit protection

Overload protection

Reverse polarity protection

120 × 80 × 30 mm housing

Modified PPE construction

Non-flush mounting

IP65 protection

Yellow LED

2 m PVC cable

3 × 0.5 mm² conductors

Increased interference immunity

Material correction factors

MTTF 615 years

Applications

Tank level monitoring

Liquid level detection

Bulk material detection

Container monitoring

Packaging machinery

Filling systems

Process automation

Material presence detection

Conveyor systems

Industrial automation

Large Housing Advantage

The 120 × 80 × 30 mm format provides a broad mechanical platform for industrial mounting. The 60 mm sensing range supports detection of larger targets and material levels. The normally closed PNP output can be integrated into control circuits requiring inverse switching. The yellow LED provides direct visual feedback. The modified-PPE housing supports industrial machine installation.

Cable Connection

The 2 m PVC cable provides direct connection to the control system. Three 0.5 mm² conductors provide the required PNP wiring arrangement. Brown, black and blue conductors identify the main electrical connections. The fixed cable configuration reduces the need for a separate sensor cordset. This is useful for standard machine installations where a fixed cable is preferred.
