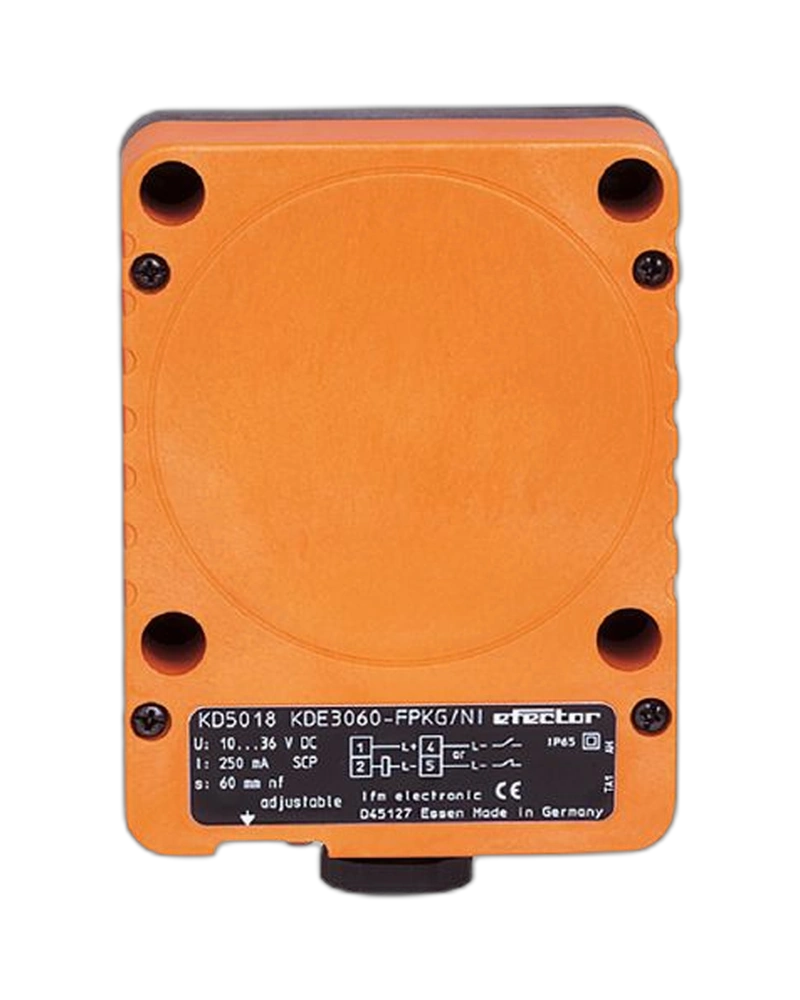

The IFM KD5018 is a large rectangular DC PNP capacitive sensor designed for long-range material detection. It provides a 60 mm adjustable sensing range with selectable normally open and normally closed operation. The sensor operates from 10 to 36 V DC and provides a 250 mA continuous output. Its enhanced immunity and IP65 protection support demanding industrial environments. Terminal connection with an M20 × 1.5 cable gland provides robust field wiring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The KD5018 provides a 60 mm sensing range with an actual sensing range of 60 ±10%. The operating distance is 0 to 48.6 mm. Hysteresis is 1 to 15% of Sr. Switch-point drift is -15 to 15% of Sr. The sensing range can be adjusted to match the application.
The sensor uses a DC PNP output with selectable normally open and normally closed functionality. It operates from 10 to 36 V DC with 15 mA current consumption at 24 V. The output supports 250 mA continuous current and 10 Hz switching frequency. Short-circuit and overload protection are integrated. Reverse polarity protection is also provided.
The KD5018 has a rectangular PPE-modified housing measuring 105 × 80 × 40 mm. It is designed for non-flush mounting and provides IP65 protection. Increased immunity supports operation around electrical interference sources. A yellow LED provides switching-status indication. Terminal wiring accepts conductors up to 2.5 mm² through an M20 × 1.5 cable gland.
60 mm sensing range
Adjustable sensing range
DC PNP output
NO / NC selectable
10...36 V DC
15 mA at 24 V
250 mA continuous output
10 Hz switching frequency
Short-circuit protection
Overload protection
Reverse polarity protection
Yellow LED
PPE-modified housing
105 × 80 × 40 mm
Non-flush mounting
IP65 protection
Increased noise immunity
Terminal connection
M20 × 1.5 cable gland
MTTF 537 years
Tank level detection
Bulk material monitoring
Liquid level sensing
Container monitoring
Packaging machinery
Filling systems
Process automation
Material presence detection
Conveyor systems
Industrial automation
The 60 mm sensing range makes the KD5018 suitable for large tanks and containers. Its adjustable sensing capability allows the switching point to be tuned during commissioning. The rectangular housing provides stable mechanical mounting. The 250 mA PNP output can interface with common industrial control circuits. The sensor is suitable for continuous automated detection tasks.
The terminal design provides a robust connection for industrial control wiring. Conductors up to 2.5 mm² can be accommodated. The M20 × 1.5 cable gland supports the specified cable entry arrangement. The yellow LED simplifies commissioning and troubleshooting. Supplied spring washers and cylinder screws support mechanical installation.
| Specification | KD5018 |
|---|---|
| Product type | Capacitive sensor |
| Order code | KDE3060-FPKG/NI |
| Measuring principle | Capacitive |
| Electrical design | PNP |
| Output function | NO / NC selectable |
| Sensing range | 60 mm |
| Adjustable sensing | Yes |
| Real sensing range | 60 ±10% |
| Operating distance | 0...48.6 mm |
| Hysteresis | 1...15% |
| Switch-point drift | -15...15% |
| Glass correction | 0.4 |
| Water correction | 1 |
| Ceramics correction | 0.2 |
| PVC correction | 0.2 |
| Operating voltage | 10...36 V DC |
| Current consumption | 15 mA at 24 V |
| Protection class | II |
| Reverse polarity protection | Yes |
| Voltage drop | 2.5 V max. |
| Continuous output current | 250 mA |
| Switching frequency | 10 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Ambient temperature | -25...80°C |
| Protection rating | IP65 |
| Increased immunity | Yes |
| Housing | PPE modified |
| Dimensions | 105 × 80 × 40 mm |
| Mounting | Non-flush |
| Weight | 297.5 g |
| Indicator | Yellow LED |
| Connection | Terminals |
| Cable gland | M20 × 1.5 |
| Terminal capacity | Up to 2.5 mm² |
| MTTF | 537 years |
