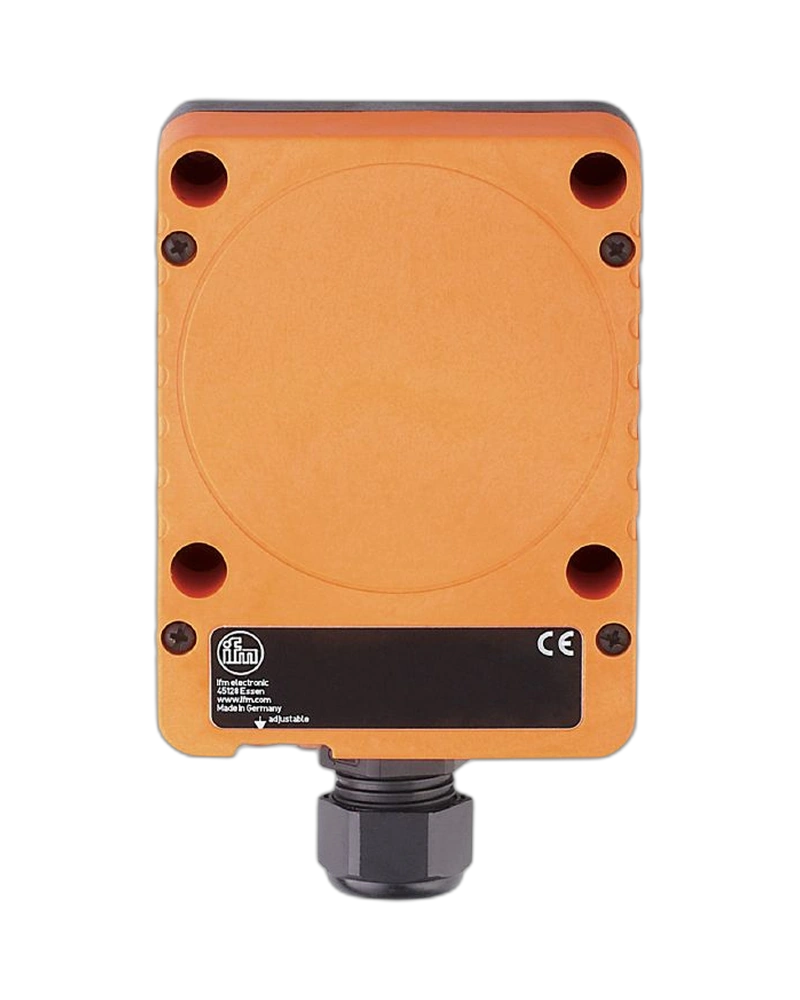

The IFM KD0024 is a rectangular long-range capacitive sensor with a 60 mm sensing range. It provides selectable normally open and normally closed switching functionality. The sensor operates from 20 to 250 V AC/DC using a combined AC/DC output stage. Its terminal connection and NPT RT configuration support industrial installation requirements. The robust PPE-modified housing is designed for non-flush mounting and IP65 protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The KD0024 provides a 60 mm sensing range that can be adjusted during commissioning. Its real sensing range is 60 ±10%, with an operating distance of 0 to 48.6 mm. Hysteresis is 1 to 15% of Sr. Correction factors are provided for glass, water, ceramics and PVC. This enables flexible detection of different industrial materials.
The sensor operates from 20 to 250 V AC/DC. Its output function is selectable between normally open and normally closed. Continuous current is 200 mA, while short-time current reaches 1500 mA for 20 ms at 0.5 Hz. AC and DC switching frequency is 10 Hz. Short-circuit and overload protection are not integrated.
The KD0024 uses a rectangular 105 × 80 × 40 mm PPE-modified housing. It is non-flush mountable and provides IP65 protection. A red LED indicates switching status. Terminal wiring supports conductors up to 2.5 mm². The specified cable sheath diameter is 7 to 13 mm and the NPT RT version uses its specified gland/connection configuration.
60 mm sensing range
Adjustable sensing range
NO / NC selectable
Combined AC/DC output
20...250 V AC/DC
10 Hz AC switching
10 Hz DC switching
200 mA continuous current
1500 mA short-time current
Red switching LED
PPE-modified housing
105 × 80 × 40 mm
Non-flush mounting
IP65 protection
High noise immunity
Terminal connection
NPT RT version
M20/NPT-compatible industrial installation
Material correction factors
Tank level detection
Bulk material monitoring
Liquid level sensing
Container monitoring
Process automation
Packaging machinery
Filling equipment
Material presence detection
Industrial level control
Machine automation
The NPT RT configuration is intended for installations requiring the specified threaded cable-entry arrangement. Terminal wiring allows field connection using suitable industrial conductors. The rectangular housing provides stable mechanical mounting. The 60 mm sensing range supports larger detection zones. Correct external fuse protection should be provided according to the technical documentation.
The sensor is designed for industrial environments with IP65 protection. Increased noise immunity helps reduce the impact of conducted RF interference. The red LED provides direct switching feedback. The adjustable sensing range allows the sensor to be tuned to the actual application. These characteristics support reliable material-level monitoring.
| Specification | KD0024 |
|---|---|
| Product type | Capacitive sensor |
| Order code | KDE2060-FBOA/NI/NPT RT |
| Measuring principle | Capacitive |
| Electrical design | AC/DC |
| Output function | NO / NC selectable |
| Technology | Two-wire |
| Sensing range | 60 mm |
| Adjustable sensing | Yes |
| Factory setting | 60 mm |
| Real sensing range | 60 ±10% |
| Operating distance | 0...48.6 mm |
| Hysteresis | 1...15% |
| Switch-point drift | -15...15% |
| Glass correction | 0.4 |
| Water correction | 1 |
| Ceramics correction | 0.2 |
| PVC correction | 0.2 |
| Operating voltage | 20...250 V AC/DC |
| Protection class | II |
| Reverse polarity protection | No |
| Max. voltage drop DC | 8 V |
| Max. voltage drop AC | 10 V |
| Minimum load current | 5 mA |
| Leakage current | 2.5 / 1.7 / 1.3 mA |
| Continuous AC current | 200 mA |
| Continuous DC current | 200 mA |
| Short-time current | 1500 mA |
| Switching frequency AC | 10 Hz |
| Switching frequency DC | 10 Hz |
| Short-circuit protection | No |
| Overload protection | No |
| Ambient temperature | -25...80°C |
| Protection rating | IP65 |
| Housing | PPE modified |
| Dimensions | 105 × 80 × 40 mm |
| Mounting | Non-flush |
| Weight | 307.5 g |
| Indicator | Red LED |
| Connection | Terminals; NPT RT configuration |
