The IFM KD001A is a long-range capacitive sensor designed for industrial and hazardous-area applications. It provides a 60 mm adjustable sensing range with selectable normally open and normally closed operation. The sensor operates from 20 to 250 V AC/DC and uses a combined AC/DC output stage. Its ATEX-certified construction is suitable for specified explosive dust environments. The rectangular 105 × 80 × 42 mm housing provides a robust non-flush installation format.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The KD001A provides a 60 mm sensing range for non-contact material detection. Its sensing range can be adjusted using the integrated potentiometer. The real sensing range is 60 ±10%, with correction factors for glass, water, ceramics and PVC. Hysteresis is 1 to 15% of Sr. The operating temperature is -20 to 60°C for this hazardous-area version.
The KD001A carries the ATEX marking II 3D Ex tc IIIC T90°C Dc X IP65. This certification is specifically relevant to designated combustible-dust environments when the installation requirements are satisfied. The sensor uses protection class II electrical construction. A fast-acting miniature fuse up to 2 A is specified, with the fuse located outside the hazardous area. This makes correct installation and protection essential.

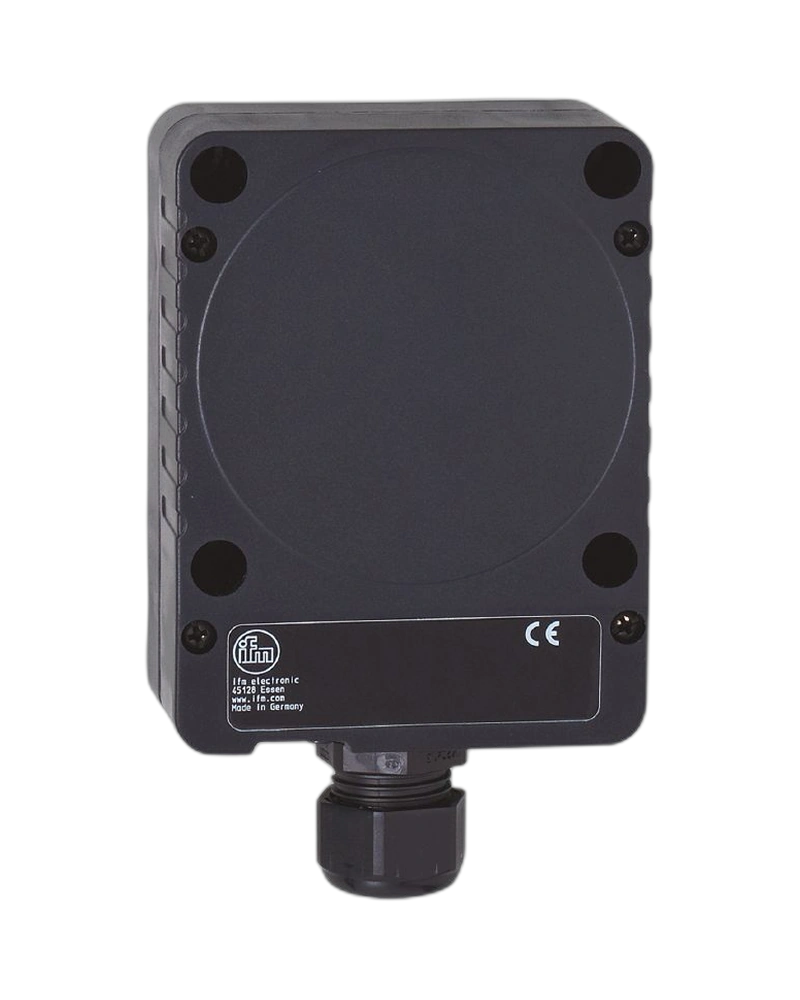

The sensor uses a rectangular PPE-modified and PA housing measuring 105 × 80 × 42 mm. It is designed for non-flush mounting and weighs approximately 281.5 g. A yellow LED provides switching-status indication. Terminal wiring accepts 0.34 to 2.5 mm² conductors. The cable gland specification is M20 × 1.5.
60 mm sensing range
Adjustable sensing range
NO / NC selectable
20...250 V AC/DC
Combined AC/DC output
4 Hz AC switching frequency
4 Hz DC switching frequency
130 mA continuous current
1500 mA short-time current
ATEX-certified version
II 3D Ex tc IIIC T90°C Dc X IP65
IP65 protection
Non-flush mounting
PPE-modified housing
PA construction
105 × 80 × 42 mm
Yellow LED
Potentiometer adjustment
M20 × 1.5 cable gland
Hazardous dust-zone detection
Bulk material monitoring
Dust-prone process equipment
Tank level detection
Container monitoring
Material presence detection
Industrial filling systems
Process automation
Packaging machinery
Explosion-protected equipment
The ATEX marking makes the KD001A suitable for specified hazardous dust applications. The installation must follow the applicable hazardous-area requirements. The fast-acting fuse must be located outside the hazardous area as specified. The 60 mm sensing range provides useful detection distance for larger process equipment. The robust rectangular housing supports stable machine installation.
The sensing range can be adjusted using the integrated potentiometer. This allows the switching point to be matched to the actual target position. The yellow LED provides visual confirmation of switching status. Terminal wiring supports a broad range of conductor sizes. Correct grounding, protection and hazardous-area installation procedures remain essential.
| Specification | KD001A |
|---|---|
| Product type | Capacitive sensor |
| Order code | KDE2060-FBOA/NI/3D |
| Measuring principle | Capacitive |
| Electrical design | AC/DC |
| Output function | NO / NC selectable |
| Sensing range | 60 mm |
| Adjustable sensing | Yes |
| Factory setting | 60 mm |
| Real sensing range | 60 ±10% |
| Operating distance | 0...48.6 mm |
| Hysteresis | 1...15% |
| Switch-point drift | -15...15% |
| Glass correction | 0.4 |
| Water correction | 1 |
| Ceramics correction | 0.2 |
| PVC correction | 0.2 |
| Operating voltage | 20...250 V AC/DC |
| Protection class | II |
| Reverse polarity protection | No |
| Voltage drop DC | 8 V max. |
| Voltage drop AC | 10 V max. |
| Minimum load current | 5 mA |
| Continuous current | 130 mA |
| Short-time current | 1500 mA / 20 ms |
| Switching frequency AC | 4 Hz |
| Switching frequency DC | 4 Hz |
| Short-circuit protection | No |
| Overload protection | No |
| Ambient temperature | -20...60°C |
| Protection rating | IP65 |
| ATEX marking | II 3D Ex tc IIIC T90°C Dc X |
| Housing | PPE modified / PA |
| Dimensions | 105 × 80 × 42 mm |
| Mounting | Non-flush |
| Weight | 281.5 g |
| Indicator | Yellow LED |
| Connection | Terminals, M20 × 1.5 gland |
