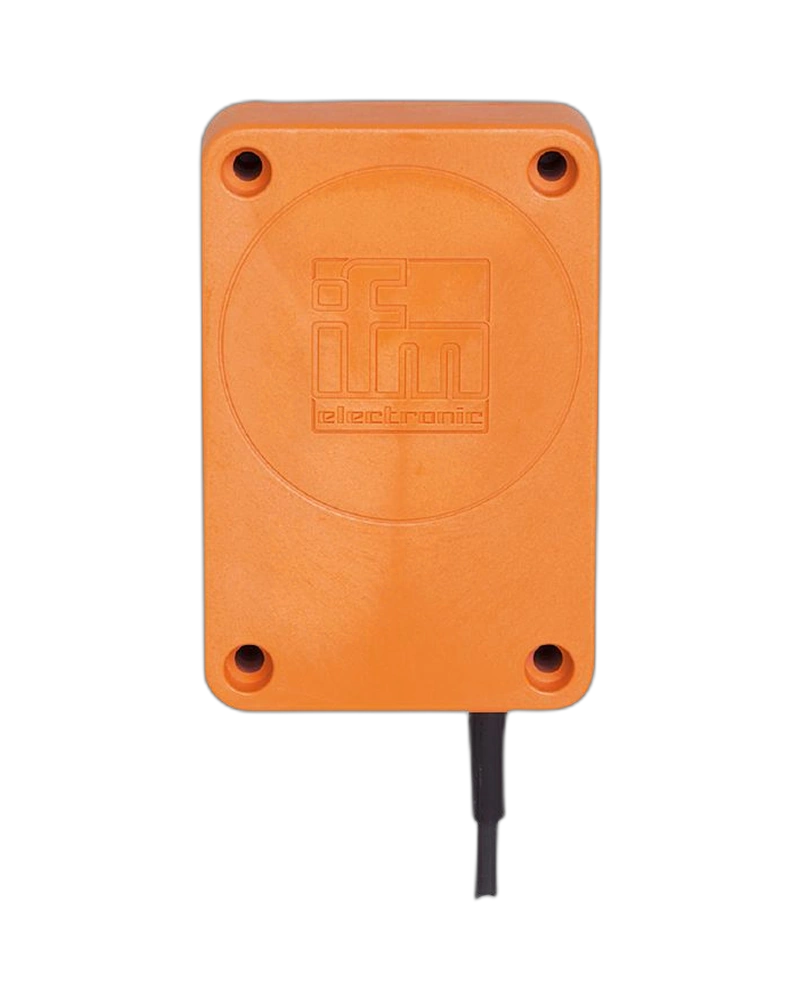

The IFM KD0012 is a rectangular AC/DC capacitive sensor designed for long-range material detection. It provides a 60 mm sensing range with normally open output operation. The sensor operates from 20 to 250 V AC/DC and uses a two-wire connection. Its modified PPO housing is designed for non-flush mounting. A 2 m PVC cable provides direct connection to the control circuit.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The KD0012 provides a 60 mm sensing range for non-contact material detection. Its real sensing range is 60 ±10%. The operating distance is specified from 0 to 48.6 mm. Hysteresis is 1 to 15% of Sr. Correction factors are provided for water, glass, ceramics and PVC.
The sensor operates from 20 to 250 V AC/DC. It provides a normally open output with a continuous current rating of 200 mA. The maximum voltage drop is below 10 V AC and below 8 V DC. Switching frequency is 10 Hz. Short-circuit and overload protection are not integrated.
The KD0012 uses a rectangular plastic housing made from modified PPO. It is designed for non-flush installation and provides IP65 protection. The sensor has a yellow output-status LED. The 2 m PVC cable uses two 0.5 mm² conductors. The sensor includes a screwdriver, spring washers and cylinder screws.
60 mm sensing range
AC/DC electrical design
Normally open output
20...250 V AC/DC
Two-wire technology
10 Hz switching frequency
200 mA continuous current
1500 mA peak current
Adjustable sensing range
60 ±10% real sensing range
Yellow LED
Modified PPO housing
Non-flush mounting
IP65 protection
2 m PVC cable
2 × 0.5 mm² conductors
Long-range capacitive detection
Material correction factors
Tank level detection
Liquid monitoring
Dry bulk material detection
Container level sensing
Packaging machinery
Filling equipment
Process automation
Material presence detection
Conveyor systems
Industrial automation
The 60 mm sensing range is useful where the target cannot be positioned close to the sensor. The capacitive principle allows non-contact detection of suitable materials. Adjustable sensing provides flexibility during installation. The rectangular housing supports stable machine mounting. This combination is suitable for tanks, containers and process equipment.
The two-wire AC/DC design simplifies the sensor interface. The 2 m PVC cable allows direct connection to the control circuit. A fast-acting miniature fuse is specified for external protection. The sensor does not include internal short-circuit or overload protection. Proper protection should therefore be included during installation.
| Specification | KD0012 |
|---|---|
| Product type | Capacitive sensor |
| Order code | KD-2060-ABOA/NI |
| Measuring principle | Capacitive |
| Electrical design | AC/DC |
| Output function | Normally open |
| Technology | Two-wire |
| Sensing range | 60 mm |
| Real sensing range | 60 ±10% |
| Operating distance | 0...48.6 mm |
| Hysteresis | 1...15% |
| Switch-point drift | -15...15% |
| Water correction | 1 |
| Glass correction | Approx. 0.4 |
| Ceramics correction | Approx. 0.2 |
| PVC correction | Approx. 0.2 |
| Operating voltage | 20...250 V AC/DC |
| Protection class | II |
| Reverse polarity protection | No |
| Voltage drop DC | <8 V |
| Voltage drop AC | <10 V |
| Minimum load current | 5 mA |
| Continuous current | 200 mA |
| Peak current | 1500 mA / 20 ms |
| Switching frequency | 10 Hz |
| Short-circuit protection | No |
| Overload protection | No |
| Ambient temperature | -25...80°C |
| Protection rating | IP65 |
| Housing material | Modified PPO |
| Mounting | Non-flush |
| Weight | 398 g |
| Indicator | Yellow LED |
| Cable | 2 m PVC |
| Cable conductors | 2 × 0.5 mm² |
