The IFM KB5062 is a DC PNP capacitive sensor with an adjustable 20 mm sensing range. It is designed for non-flush installation and provides normally open switching. The sensor operates from 10 to 36 V DC and supports a 250 mA continuous output current. Its M12 connector provides a compact industrial connection. Increased immunity to conducted RF interference supports reliable operation in electrically demanding environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The KB5062 provides a 20 mm adjustable sensing range. Its real sensing range is 20 ±10%, with an operating distance of 0 to 16.2 mm. Hysteresis is 1 to 15% of Sr. Switch-point drift is -15 to 15% of Sr. Material correction factors are defined for glass, water, ceramics and PVC.
The sensor uses a normally open DC PNP output. It operates from 10 to 36 V DC with 13 mA consumption at 24 V. The output supports 250 mA continuous current and 40 Hz switching frequency. Short-circuit and overload protection are included. Reverse polarity protection is also provided.

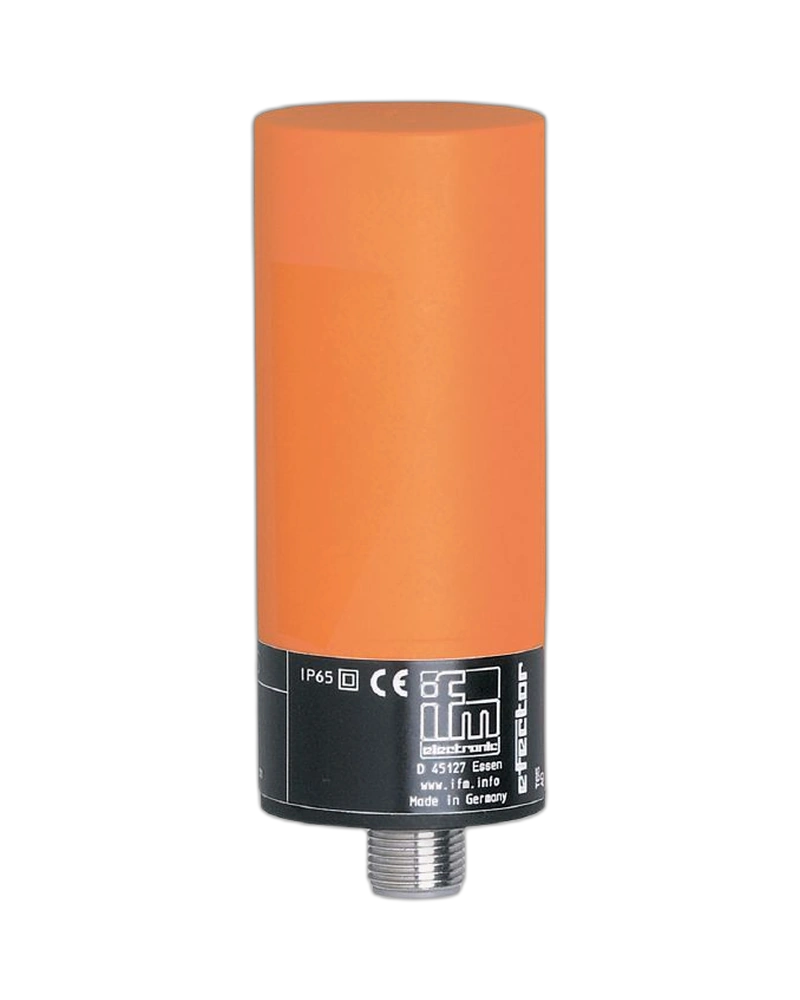

The KB5062 has a Ø34 × 93 mm cylindrical PBT housing. It is non-flush mountable and protected to IP65. A yellow LED provides switching-status indication. The model uses an M12 connector rather than a fixed long cable. This makes the sensor convenient for machine installations requiring replaceable connectorized wiring.
20 mm adjustable sensing range
DC PNP output
Normally open
10...36 V DC
13 mA at 24 V
250 mA continuous current
40 Hz switching frequency
M12 connector
PBT housing
Ø34 × 93 mm
Non-flush mounting
IP65 protection
Yellow LED
Increased RF immunity
Short-circuit protection
Overload protection
Reverse polarity protection
1...15% hysteresis
-15...15% switch-point drift
20 ±10% real sensing range
Liquid level monitoring
Bulk material detection
Tank monitoring
Packaging machinery
Filling systems
Material presence detection
Process automation
Machine automation
Conveyor systems
Industrial level control
The M12 connection provides a standardized industrial interface. It allows the sensor to be disconnected without replacing the complete cable assembly. This can simplify maintenance and sensor replacement. The 93 mm housing provides the required mechanical format for the KB-3020 family. The yellow LED provides immediate switching confirmation.
The sensor includes increased immunity to conducted RF interference. This is useful around drives, motors and other electrically active machine components. The PBT housing provides a robust industrial enclosure. IP65 protection supports general industrial installation. Combined electrical and mechanical characteristics make the KB5062 suitable for continuous machine operation.
| Specification | KB5062 |
|---|---|
| Product type | Capacitive sensor |
| Order code | KB-3020-BPKG/NI/US-100-DPS |
| Measuring principle | Capacitive |
| Electrical design | DC PNP |
| Output function | Normally open |
| Sensing range | 20 mm |
| Sensing range adjustable | Yes |
| Factory setting | 20 mm |
| Real sensing range | 20 ±10% |
| Operating distance | 0...16.2 mm |
| Hysteresis | 1...15% |
| Switch-point drift | -15...15% |
| Glass correction | 0.4 |
| Water correction | 1 |
| Ceramics correction | 0.2 |
| PVC correction | 0.2 |
| Operating voltage | 10...36 V DC |
| Current consumption | 13 mA at 24 V |
| Protection class | II |
| Reverse polarity protection | Yes |
| Voltage drop | 2.5 V max. |
| Continuous output current | 250 mA |
| Switching frequency | 40 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Ambient temperature | -25...70°C |
| Protection rating | IP65 |
| Increased immunity | Yes |
| Housing material | PBT |
| Dimensions | Ø34 × 93 mm |
| Mounting | Non-flush |
| Weight | 169.5 g |
| Indicator | Yellow LED |
| Connection | M12 connector |
