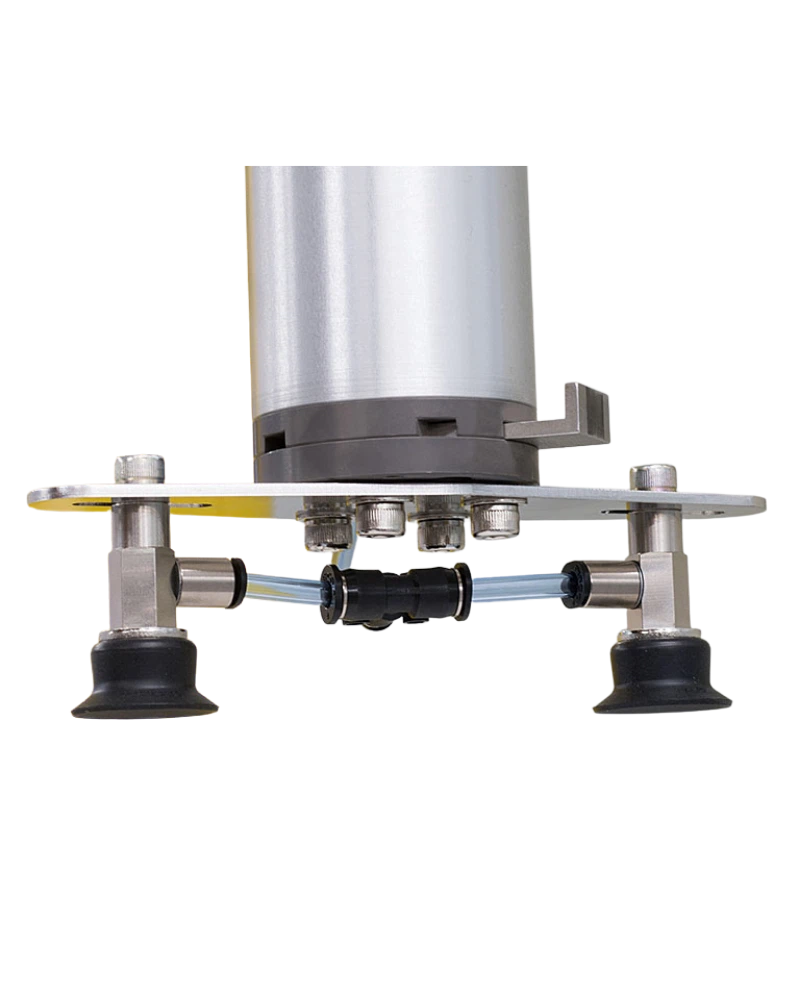

Interface Plates for EOAT (End of Arm Tooling) are designed to provide a secure and reliable mounting interface between vacuum generators and robotic end-of-arm tooling systems. These plates enable direct integration of vacuum components into the EOAT, ensuring precise alignment and stable operation during automated handling tasks such as picking, placing, or positioning parts on production lines.
The interface plates are constructed from durable industrial materials to withstand repeated mechanical stress and environmental exposure. They feature a standardized mounting design compatible with P.C.D. 31.5, allowing direct attachment to EOAT systems without the need for additional brackets or adapters. The construction ensures robustness while maintaining precise dimensional accuracy.
The interface plates are configured with multiple vacuum port options depending on nozzle bore size: models with 0.5mm and 0.7mm nozzles offer up to four vacuum ports, while those with 1.0mm and 1.2mm nozzles are designed for single or dual port configurations. All variants support direct mounting via the P.C.D. 31.5 interface, ensuring compatibility across a range of EOAT systems.
The vacuum generator includes a built-in blow-off function that operates as standard equipment and can be activated without requiring external blow-off piping. The blow-off flow rate and duration can be precisely adjusted using an attached needle valve. With optimized cycle timing, the system achieves a high-speed suction and blow-off cycle, enhancing operational efficiency during part handling.
Available in multiple sizes to match different EOAT requirements: φ3mm, φ4mm, φ6mm; φ4mm, φ6mm, φ8mm; φ4mm, φ6mm; and φ6mm, φ8mm. No color variants are offered. Each size is specifically engineered for compatibility with P.C.D. 31.5 mounting interfaces and nozzle bore types (0.5mm, 0.7mm, 1.0mm, or 1.2mm).
The interface plates are designed to integrate directly into EOAT systems via the P.C.D. 31.5 mounting hole, providing a secure and standardized connection point for vacuum generators. This direct mounting eliminates the need for additional hardware and ensures alignment with existing robotic tooling configurations.
| Specification | Details |
|---|---|
| mm size (mm) | φ3mm, φ4mm, φ6mm | φ4mm, φ6mm, φ8mm | φ4mm, φ6mm | φ6mm, φ8mm |
| Technical detail | Can be mounted directly to EOAT with P.C.D. 31.5 |
| Nozzle configuration | Extra storage chamber of blow-off air can be added by connecting a tubing with a plug cap. (Only for nozzle bore of 1.0mm & 1.2mm type.) |
| Noise level | Nozzle bore 0.5mm & 0.7mm type: below 65dB[A], Nozzle bore 1.0mm & 1.2mm type: below 75dB[A]. (by our factory simple measurement) |
| Pressure sensor configuration | Pressure sensor can be installed. (Max. 3 ports after pressure sensor installed.) |
| Construction / connection | Built-in blow-off air storage chamber |
