Product Overview

The SICK WFE fork sensor is a reliable, easy-to-use fork sensor designed for robust performance in demanding industrial environments. Integrated with a rugged hybrid housing featuring an ABS plastic body and carbon steel frame, the WFE offers exceptional durability and stability. Its compact design ensures solid mechanical strength while maintaining flexibility across various installation types. With no need for complex alignment due to the co-location of sender and receiver within the same housing, setup is fast and straightforward. The sensor delivers excellent performance through advanced detection capabilities, including sensitivity adjustment and light/dark switching, making it ideal for diverse industrial applications. Its versatility and user-friendly design ensure quick integration into existing systems without extensive commissioning or configuration.

Key Features and Technology

The WFE fork sensor combines high performance with intuitive operation through a range of advanced features. With a switching frequency of 5 kHz, it enables precise detection even for very small objects (MDO). The push-pull output provides reliable signal transmission, while light/dark switching allows users to configure detection based on whether the target is present or absent. Since the sender and receiver are housed together, alignment is not required—eliminating time-consuming setup steps. This design ensures rapid deployment and consistent performance across different machine configurations. The sensor’s flexibility in detecting both light and dark objects, combined with sensitivity adjustment, makes it adaptable to a wide range of operational conditions without reconfiguration.

Technical Characteristics

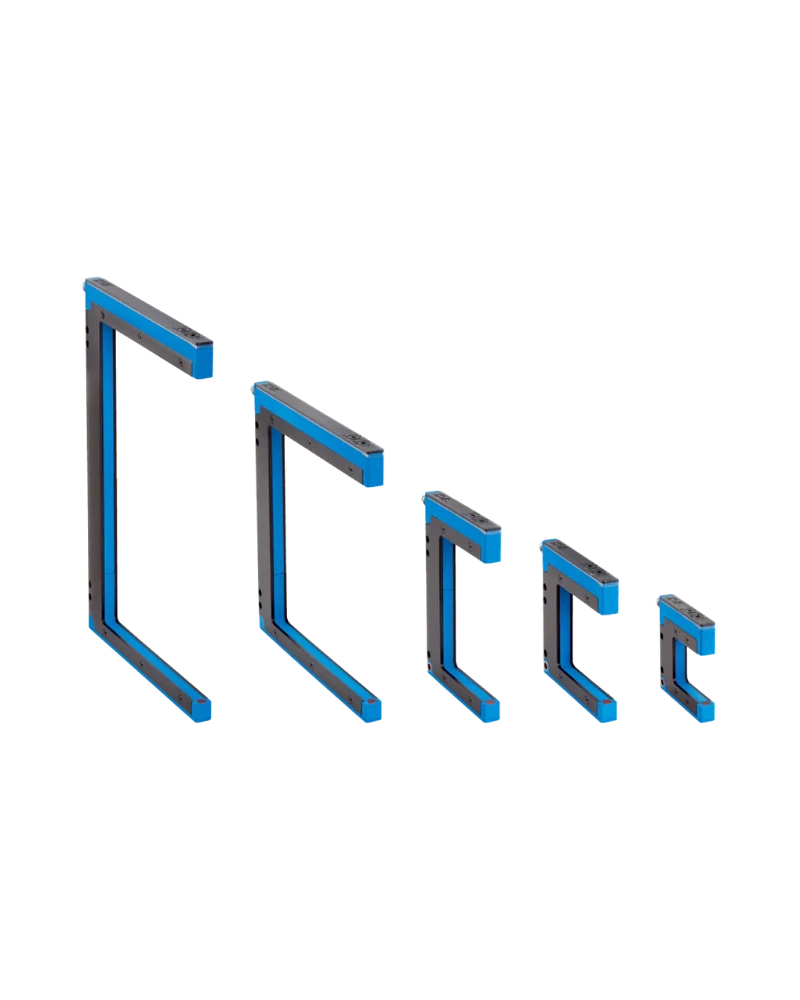

The WFE fork sensor operates at a switching frequency of 5 kHz, ensuring fast and accurate response times. It features a push-pull output for reliable signal transmission. The sensor supports both light and dark switching modes, offering flexibility in detection logic. Available in fork widths ranging from 30 mm to 180 mm, the WFE accommodates various installation requirements and machine designs. Its robust hybrid housing is constructed from ABS plastic with a carbon steel frame, providing durability under harsh conditions. The sensor’s internal design eliminates the need for external alignment between sender and receiver, simplifying integration and reducing setup time.

Configuration and Integration

The WFE fork sensor offers flexible connection options via a 3-pin M8 connection, enabling easy cable integration with existing systems. No complex alignment is required due to the co-located sender and receiver within the same housing, allowing for rapid commissioning and installation. The sensitivity adjustment and light/dark switching provide users with full control over detection behavior during setup. With different fork widths available from 30 mm up to 180 mm, the sensor adapts seamlessly to a wide range of machine layouts and mounting types. This flexibility ensures straightforward integration into automated systems without extensive engineering effort or calibration.

Operating Environment

The WFE fork sensor is built for operation in harsh industrial environments with an IP67-rated housing, providing complete protection against dust ingress and temporary submersion in water. The rugged hybrid construction ensures long-term reliability under extreme conditions. Its design supports continuous use in high-vibration or high-temperature settings typical of manufacturing floors. The sensor’s robust materials and sealed housing make it suitable for outdoor or wet environments where exposure to moisture, debris, or physical stress is common. This makes the WFE ideal for applications requiring dependable performance without frequent maintenance or environmental interference.

Industrial Applications

The SICK WFE fork sensor is well-suited for a wide range of industrial automation tasks including object presence detection, material level monitoring, and position sensing in packaging, assembly, and material handling systems. Its ability to detect very small objects (MDO) makes it effective in quality control and safety applications. The light/dark switching and sensitivity adjustment allow precise tuning to specific materials or conditions. With fork widths ranging from 30 mm to 180 mm, the sensor fits a variety of installation types across different machinery. Its ease of use and no-alignment design reduce setup time and improve operational efficiency in production lines where speed and reliability are critical.
