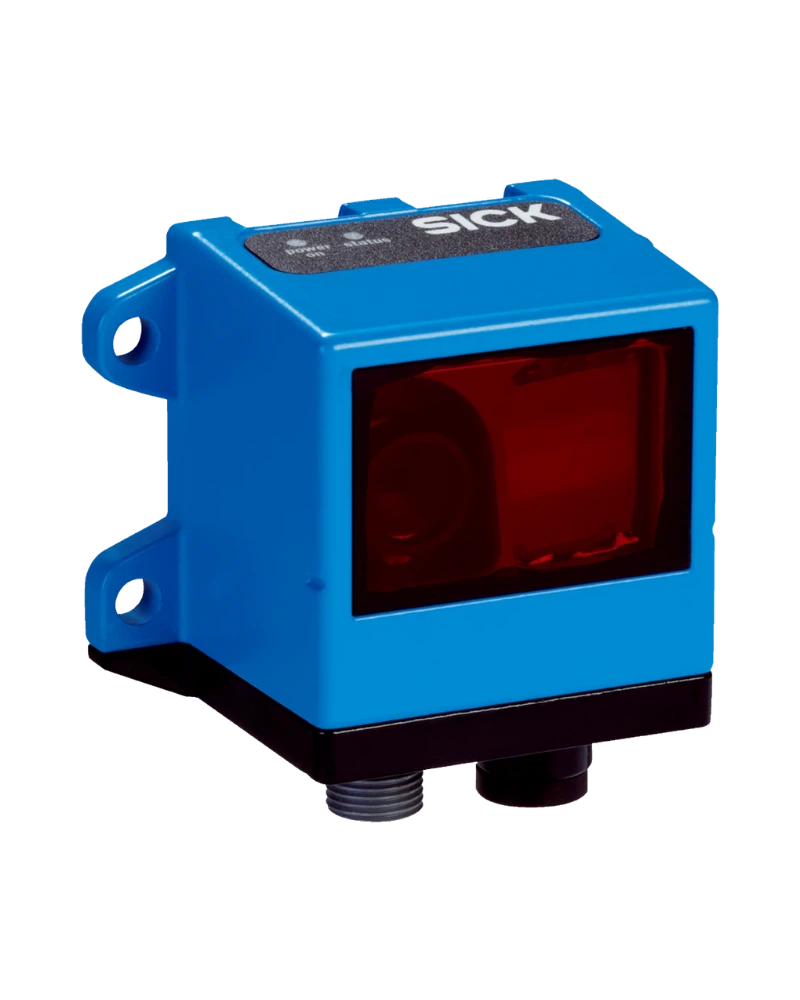

The SICK OLM100 Hi is a high-precision linear measurement sensor designed for accurate, long-range distance detection in demanding industrial environments. With a measuring range of 0 m to 10,000 m, it offers exceptional flexibility across diverse applications requiring extended reach and reliable positioning data. The sensor features two selectable resolutions—0.1 mm or 1 mm—ensuring precision tailored to specific measurement needs. Utilizing a red LED light source, the OLM100 Hi delivers consistent performance with minimal interference from ambient lighting. Its IP65 enclosure rating ensures robust protection against dust and water splashes, making it ideal for outdoor or harsh industrial settings. Designed for reliability and ease of integration, this sensor provides precise distance measurements with fast output response times, supporting real-time process control in automation systems.
The OLM100 Hi leverages advanced optical technology to deliver accurate linear distance measurement over long ranges. It employs a red LED light source for reliable detection across varying environmental conditions. The sensor's resolution is configurable at either 0.1 mm or 1 mm, depending on application requirements and transfer protocol settings—resolution dependent on both set parameters and communication method. With a repeatability of 0.15 mm, it ensures consistent measurement accuracy over time. Output signals are delivered within 5 ms, enabling real-time feedback in dynamic processes. The sensor is designed with reverse-polarity protection and operates reliably under ambient light levels up to 9,000 lux (typical value at +25 °C), ensuring stable performance even in moderately lit environments.
The OLM100 Hi offers a measuring range of 0 m to 10,000 m. Resolution is selectable between 0.1 mm and 1 mm, with technical details dependent on the set resolution and transfer protocol. Repeatability is specified at 0.15 mm. The output time is 5 ms. The light source is a red LED. Supply voltage ranges from DC 10 V to 30 V, with ripple limited to ≤ 5 V pp. The unit weight is 0.220 kilograms (net: 0.22 kg). Protection class is III. Ambient temperature during operation ranges from –30 °C to +60 °C; storage conditions extend from –40 °C to +75 °C. Maximum humidity during operation is 95 %, non-condensing. Typical ambient light immunity is ≤ 9,000 lx at a standard ambient temperature of +25 °C.
The OLM100 Hi integrates seamlessly into industrial automation systems through standard digital interfaces. Resolution settings (0.1 mm or 1 mm) can be configured based on application needs and the selected transfer protocol, with resolution dependent on both setting and communication method. The sensor provides a fast output time of 5 ms, enabling real-time data acquisition in control loops. It is compatible with various industrial protocols for signal transmission, allowing flexible integration into PLCs or SCADA systems. Reverse-polarity protection ensures safe operation even under unexpected electrical conditions. No additional hardware or calibration is required for standard use, simplifying deployment and reducing setup time.
The OLM100 Hi operates reliably in ambient temperatures ranging from –30 °C to +60 °C. It can be stored at temperatures as low as –40 °C and up to +75 °C, ensuring suitability for extreme environments. Maximum operating humidity is 95 %, under non-condensing conditions. The sensor demonstrates typical performance immunity to ambient light levels of ≤ 9,000 lx at a standard ambient temperature of +25 °C. It is rated IP65, providing complete dust protection and resistance to water splashes from any direction. Operation below –20 °C requires a minimum 5-minute warm-up period for stable performance. These environmental specifications ensure reliable operation in outdoor or industrial settings with fluctuating conditions.
The SICK OLM100 Hi is ideal for applications requiring long-range, high-accuracy distance measurement. It is commonly used in material handling systems, conveyor monitoring, and position feedback in large-scale automation processes. Suitable for use in construction, mining, logistics, and manufacturing environments where extended range detection is essential. Its robust IP65 enclosure and wide operating temperature range make it suitable for outdoor or exposed industrial installations. The sensor’s ability to maintain accuracy under ambient light levels up to 9,000 lx ensures consistent performance in diverse lighting conditions. With fast response times and high repeatability, the OLM100 Hi supports precise process control and real-time monitoring across a broad range of industrial use cases.
| Specification | Value |
|---|---|
| Resolution | 0.1 mm, 1 mm |
| Repeatability | 0.15 mm 2) |
| Light source | LED, red |
| Protection class | III |
| Supply voltage | V s |
| Ambient temperature | , storage |
| resolution | and transfer protocol. |
| ambient temperature | . |
| Measuring range | 0 m ... 10,000 m 1) |
| value | IP65 |
| Output time | 5 ms |
| Supply voltage V s | DC 10 V ... 30 V 1) |
| Ripple | ≤ 5 V pp |
| Enclosure rating | IP65 |
| Ambient temperature, operation | –30 °C ... +60 °C 1) |
| Ambient temperature, storage | –40 °C ... +75 °C 2) |
| Typ. Ambient light immunity | ≤ 9,000 lx 3) |
| Unit weight | 0.220 Kilograms |
| Net unit weight | 0.22 Kilograms |
