Product Overview

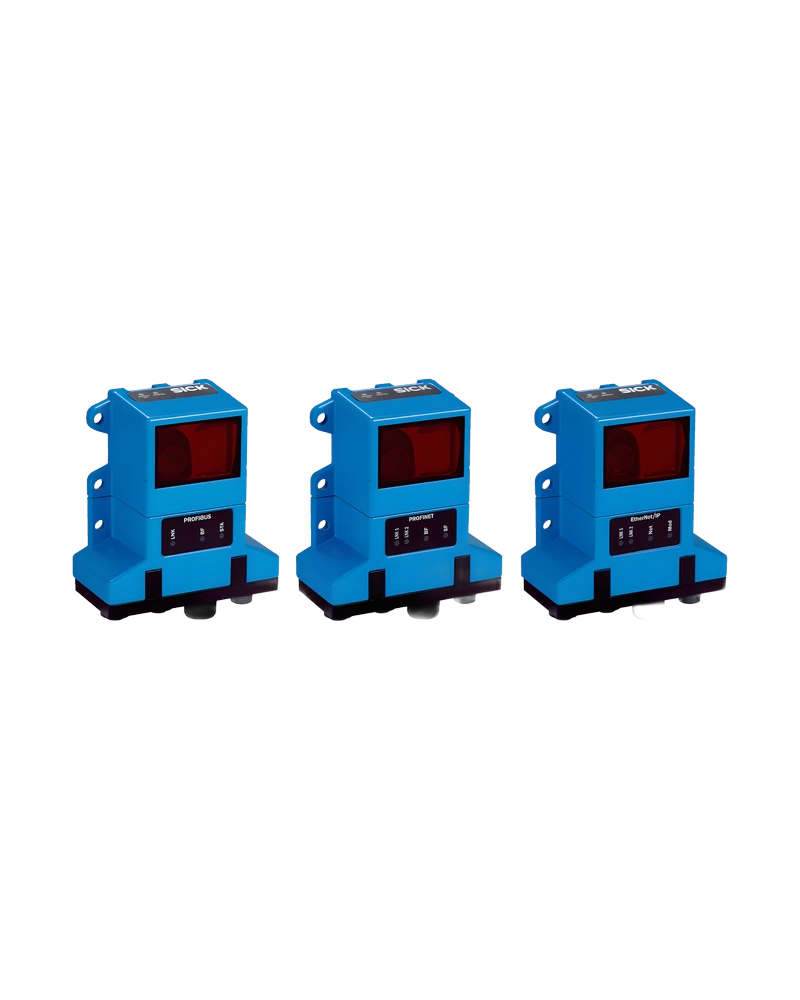

The SICK OLM100 is a high-precision linear measurement sensor designed for accurate distance detection over long ranges. With a measuring range of 0 m to 10,000 m, it offers reliable performance in diverse industrial environments. The sensor features two selectable resolutions—0.1 mm and 1 mm—ensuring flexibility depending on application requirements. Utilizing a red LED light source, the OLM100 delivers consistent and stable measurements with minimal interference from ambient lighting. Its IP65 enclosure rating ensures robust protection against dust and water spray, making it ideal for outdoor or harsh industrial settings. The sensor is certified for CANopen communication, enabling seamless integration into existing automation systems. With a compact design and lightweight construction (0.215 kg), the OLM100 combines precision with ease of deployment in demanding applications.

Key Features and Technology

The OLM100 employs advanced optical technology to provide precise linear distance measurements using a red LED light source. The sensor operates within a wide measuring range of 0 m to 10,000 m, with resolution options set at either 0.1 mm or 1 mm—resolution dependent on the configured setting and transfer protocol. A repeatability of 1 mm ensures consistent measurement accuracy across repeated cycles. Output time is delivered within 1 ms, enabling real-time feedback in dynamic processes. The sensor is reverse-polarity protected and operates with a supply voltage between DC 10 V and 30 V, with ripple limited to ≤5 V pp. Its CANopen certification allows for reliable communication integration into industrial networks. Designed for durability and performance under variable conditions, the OLM100 delivers stable operation in both low- and high-light environments.

Technical Characteristics

The SICK OLM100 has a measuring range of 0 m to 10,000 m. Resolution is configurable at either 0.1 mm or 1 mm, with technical details indicating dependency on the set resolution and transfer protocol. Repeatability is specified as 1 mm. Output time is delivered within 1 ms. The light source is a red LED. Supply voltage ranges from DC 10 V to 30 V (reverse-polarity protected). Ripple in the supply voltage is limited to ≤5 V pp. The enclosure rating is IP65, and protection class is III. Ambient temperature during operation ranges from –30 °C to +60 °C; storage conditions extend from –40 °C to +75 °C. Maximum ambient humidity is 95 % (non-condensing). Typical ambient light immunity is ≤9,000 lx at a reference temperature of +25 °C. The unit and net weight are both 0.215 kilograms.

Configuration and Integration

The OLM100 supports integration via CANopen protocol, which is certified by SICK, ensuring compatibility with standard industrial automation systems. This enables straightforward communication with PLCs or SCADA systems using established CANopen interfaces. Configuration of resolution (0.1 mm or 1 mm) and other parameters can be managed through the configured transfer protocol. The sensor operates within a supply voltage range of DC 10 V to 30 V, with ripple limited to ≤5 V pp. It is designed for direct integration into existing control systems without additional hardware. No external power conditioning is required due to its built-in reverse-polarity protection. The compact and lightweight design simplifies installation in tight or space-constrained environments.

Operating Environment

The OLM100 is designed for operation within an ambient temperature range of –30 °C to +60 °C, with a warm-up period required at temperatures below –20 °C (5 minutes). It can be stored in conditions ranging from –40 °C to +75 °C. The sensor performs reliably under non-condensing conditions with maximum humidity of 95 %. Ambient light immunity is typically ≤9,000 lx at a reference temperature of +25 °C. These environmental specifications ensure stable performance across diverse industrial settings, including outdoor installations and high-temperature processes. The IP65 enclosure provides protection against dust ingress and water spray, making it suitable for use in wet or dusty environments.

Industrial Applications

The SICK OLM100 is ideal for applications requiring long-range, precise linear measurements such as material handling, positioning systems, and process control. Its extended range up to 10,000 m makes it suitable for large-scale industrial setups like conveyor monitoring or alignment tasks. The sensor’s high repeatability and immunity to ambient light ensure reliable performance in dynamic environments. It is commonly used in automation processes where accurate distance feedback is critical, such as in robotic arm positioning or track measurement systems. Its CANopen compatibility allows integration into modern control networks, supporting real-time data exchange with supervisory systems. The robust environmental ratings and long-range capability make it a dependable solution for outdoor and continuous operation scenarios.”}
