Product Overview

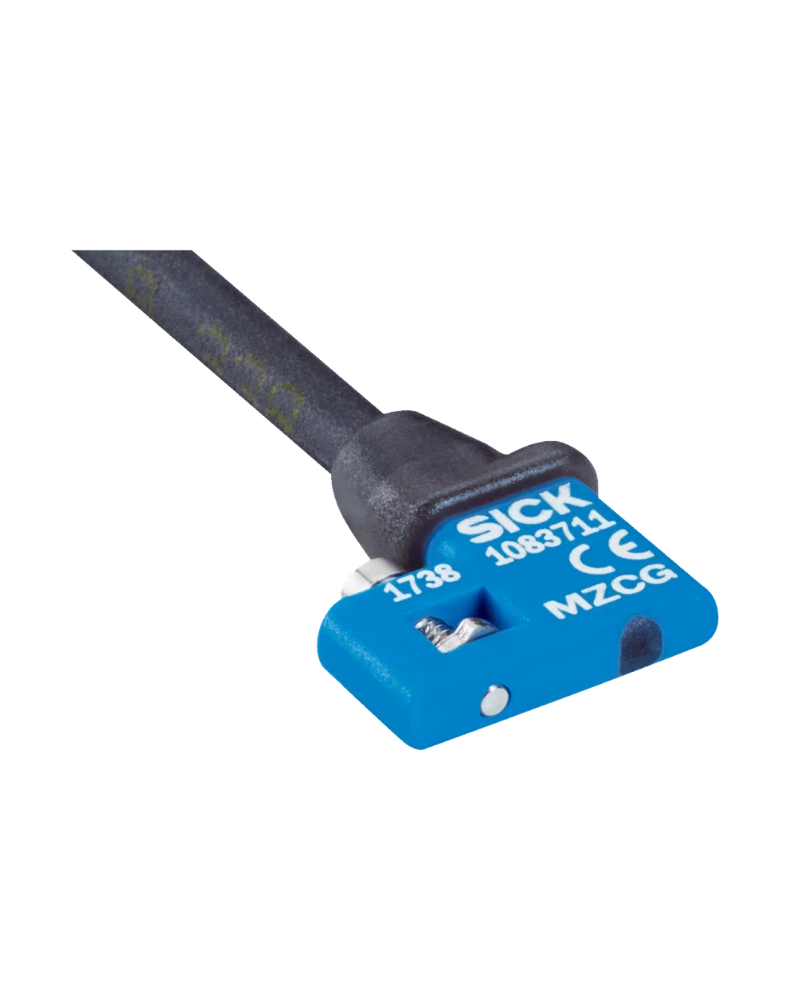

The MZCG cylinder sensor is a robust, compact C-slot cylinder sensor designed for reliable position detection in demanding industrial environments. With an IP68 enclosure rating, it offers complete protection against dust and water immersion, making it ideal for continuous operation in wet or dirty conditions. The sensor features a PNP switching output with a normally open (NO) function, delivering fast response times up to 1,000 Hz. Its small housing length of 12.2 mm ensures minimal space occupation while maintaining high performance. Designed for integration into automated systems requiring precise mechanical position feedback, the MZCG combines durability with ease of installation through a standard cable connection. The sensor is compatible with SMC rail systems via CDQ2 and ECDQ2 adapters, enabling seamless mounting in existing automation setups.

Key Features and Technology

The MZCG leverages advanced switching technology to deliver precise position detection using a C-slot cylinder design. It features a high switching frequency of 1,000 Hz, ensuring accurate signal transmission even during rapid motion cycles. The sensor includes reverse polarity protection, short-circuit protection, and power-up pulse protection, enhancing safety and reliability under varying electrical conditions. A built-in encoder magnet enables detection of position changes based on the distance traveled by the magnet while the sensor outputs a switching signal. This technology ensures consistent performance across different operating scenarios. With a constant ambient temperature (Ta) and supply voltage (UB), the sensor maintains stable operation, reducing drift and improving long-term accuracy in industrial processes.

Technical Characteristics

The MZCG cylinder sensor operates within a supply voltage range of 10 V DC to 30 V DC, with a maximum allowable voltage drop of ≤ 2.5 V to ensure consistent output performance. It draws a continuous current (Ia) of ≤ 100 mA, making it energy-efficient for long-term use. The switching output is PNP type with a normally open (NO) function. Electrical wiring uses a DC 3-wire configuration, including a dedicated ground connection. The cable features a radial outlet and is designed for drag chain applications using an M8, 3-pin connector with a 0.3 m cable length. Cable diameter is Ø 2.9 mm, constructed from PUR material, ensuring flexibility and durability under mechanical stress. The housing is made of plastic, providing resistance to environmental factors while maintaining low weight.

Configuration and Integration

The MZCG cylinder sensor integrates easily into automation systems through its compatibility with SMC rail CDQ2 and ECDQ2 mounting adapters. This allows flexible installation in various mechanical setups without requiring custom brackets or modifications. The 3-pin M8 cable connector enables straightforward wiring using standard DC 3-wire configurations, suitable for both direct and distributed control systems. The radial cable outlet simplifies routing in tight spaces. With reverse polarity and short-circuit protection built-in, the sensor ensures safe operation even under electrical faults. Its PNP output is compatible with most industrial PLCs and control systems, enabling seamless signal integration into existing automation logic without additional interface components.

Operating Environment

The MZCG cylinder sensor operates reliably in a wide ambient temperature range of –30 °C to +80 °C, making it suitable for both cold storage and high-temperature industrial processes. Its IP68 enclosure rating provides full protection against dust ingress and submersion in water, allowing use in wet or submerged environments without degradation. The sensor is designed for continuous operation under varying environmental conditions, with no performance loss due to temperature fluctuations. It maintains stable output characteristics across the specified ambient temperature (Ta) and supply voltage (UB), ensuring consistent detection accuracy regardless of external conditions. This makes it ideal for deployment in harsh industrial settings such as manufacturing lines, material handling systems, or outdoor automation applications.

Industrial Applications

The MZCG cylinder sensor is well-suited for use in automated machinery where precise position feedback is required, such as in robotic arms, pneumatic actuators, and conveyor systems. Its robust design and high switching frequency support reliable operation during repetitive motion cycles. The IP68 rating enables safe deployment in environments with moisture or splashing water, including food processing, packaging, and automotive assembly lines. Compatibility with SMC rail mounting systems allows easy integration into existing mechanical structures. With built-in protection features and a compact form factor, the MZCG provides dependable performance in high-vibration or high-dust conditions where reliability is critical to process continuity and safety.
