Product Overview

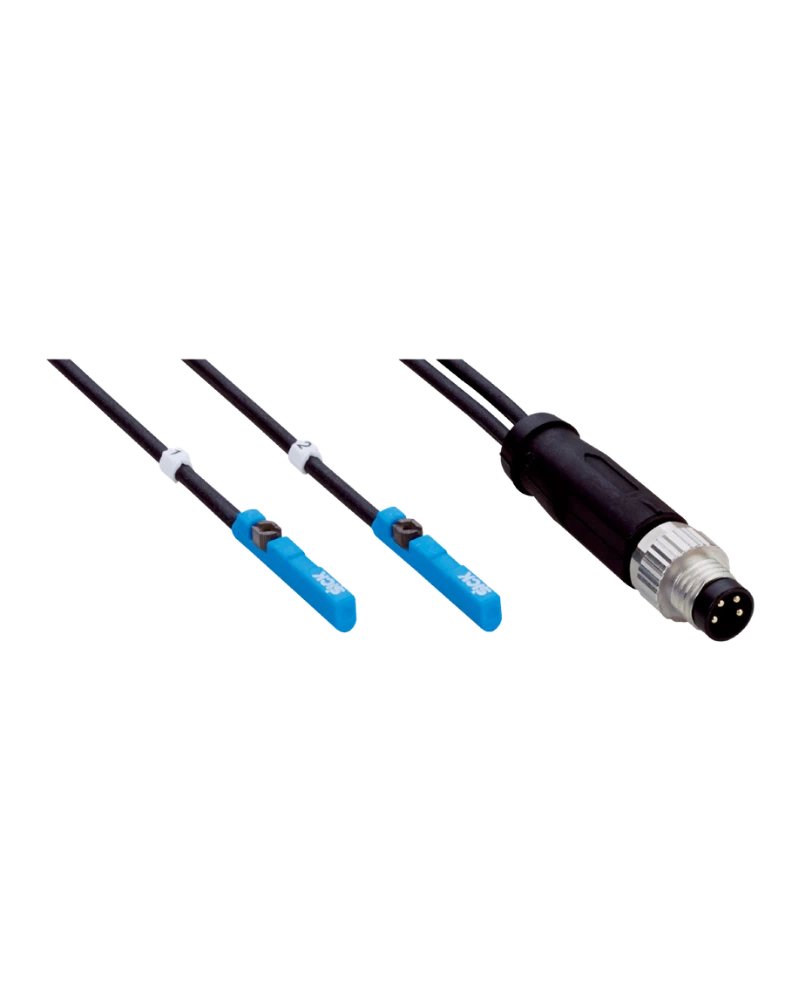

The SICK MZC1 Twin is a compact cylinder sensor designed for precise position detection in industrial automation environments. Featuring a C-slot cylinder type, it provides reliable switching signals with dual PNP outputs and N/O contacts. Ideal for integration into automated systems requiring high-speed feedback, the MZC1 Twin delivers consistent performance through its robust design and advanced electrical protection features. With an IP68 enclosure rating, it offers full dust and water resistance, making it suitable for demanding industrial conditions. The sensor is engineered to operate efficiently across a wide temperature range and supports secure wiring via a standard 4-pin M12 cable with axial outlet. Its compatibility with various cylinder types—including SMC rail CDQ2, ECDQ2, round body cylinders, profile cylinders, and tie-rod cylinders—enhances its versatility in diverse automation setups.

Key Features and Technology

The MZC1 Twin leverages a dual-output PNP switching design with two normally open (N/O) contacts to provide reliable signal detection. It operates at a high switching frequency of 1,000 Hz, enabling fast response times for dynamic motion control applications. The sensor uses an encoder magnet to detect position changes, where the distance covered by the magnet during signal output is directly proportional to cylinder movement. This ensures accurate and repeatable feedback. The technology is further enhanced by built-in protection mechanisms including reverse polarity protection, short-circuit protection, and power-up pulse protection—ensuring safe operation even under fault conditions. These features collectively contribute to a stable, long-lasting performance in demanding industrial environments.

Technical Characteristics

The MZC1 Twin has a housing length of 23.7 mm and is rated for supply voltages between 10 V DC and 30 V DC, with a maximum voltage drop of ≤ 2.5 V to maintain signal integrity. It draws a continuous current (Ia) of ≤ 100 mA and operates within an ambient temperature range of –30 °C to +80 °C. The sensor features a 4-wire DC electrical connection via an M12, 4-pin cable with a 0.5 m length and axial cable outlet. The cable diameter is Ø 2.2 mm, using PUR material for durability and flexibility. The housing is made of plastic, ensuring lightweight construction while maintaining mechanical strength. Protection class III ensures compliance with safety standards for electrical equipment in industrial settings.

Configuration and Integration

The MZC1 Twin integrates seamlessly into a variety of cylinder systems through its compatibility with multiple cylinder types including SMC rail CDQ2, ECDQ2, round body cylinders, profile cylinders, and tie-rod cylinders. The sensor uses a standard 4-wire DC connection via an M12 plug with a 0.5 m cable, allowing straightforward wiring to control systems. Its dual PNP outputs provide flexibility in signal routing for different automation tasks. The axial cable outlet simplifies installation by enabling direct mounting and cable management. With reverse polarity and short-circuit protection, the sensor ensures safe operation during integration without requiring additional protective components. This makes it ideal for retrofitting or new installations where reliable, plug-and-play detection is required.

Operating Environment

The MZC1 Twin is engineered to operate reliably in extreme environmental conditions. It functions within an ambient temperature range of –30 °C to +80 °C, making it suitable for both cold storage and high-temperature industrial processes. The IP68 enclosure rating ensures complete protection against dust ingress and submersion in water, allowing use in wet or dirty environments such as manufacturing lines or outdoor installations. The sensor is designed to maintain performance under constant ambient temperature conditions when supplied with a stable voltage (UB). Its robust construction and built-in electrical protections ensure consistent operation regardless of environmental fluctuations, enabling reliable detection even in harsh industrial settings.

Industrial Applications

The SICK MZC1 Twin is widely used in industrial automation for position sensing in cylinder-driven systems. It is particularly effective in applications such as robotic arms, packaging machines, and material handling equipment where precise feedback on cylinder movement is essential. Its compatibility with profile cylinders, tie-rod cylinders, and various SMC rail types allows it to be deployed across a broad range of machinery. The high switching frequency (1,000 Hz) supports real-time control in fast-moving processes. With its IP68 rating and wide operating temperature range, the sensor performs reliably in both indoor and outdoor environments where exposure to moisture or dust is common. Its simple wiring and built-in safety features reduce integration complexity and downtime during maintenance.
