Product Overview

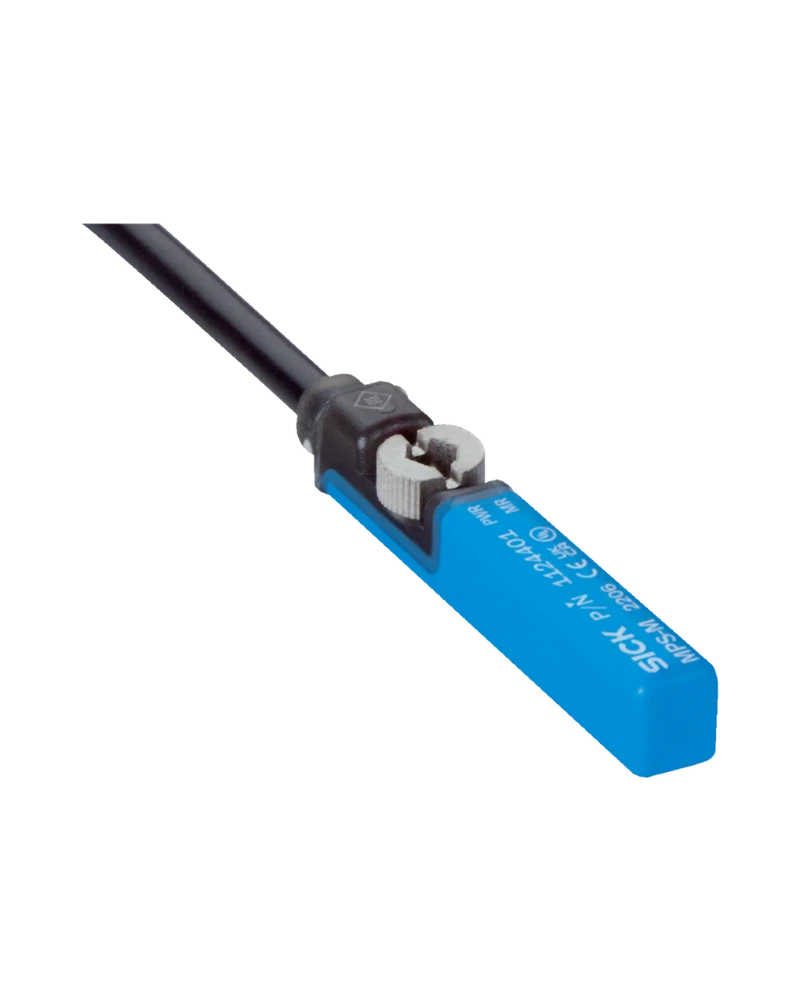

The SICK MPS-M Cylinder Sensor is a precision position sensor designed for direct integration into cylinder monitoring systems. Unlike traditional sensors requiring setup or teach-in procedures, the MPS-M delivers accurate piston position data immediately after installation—no calibration or parameterization is needed. This simplifies deployment and reduces time-to-operation in industrial environments. The sensor continuously provides real-time position information through a reliable analog interface or IO-Link communication, enabling seamless integration with existing control systems. With built-in condition monitoring capabilities, the MPS-M helps reduce unplanned production downtime by detecting early signs of cylinder wear or misalignment. Its straightforward setup and robust performance make it ideal for applications where continuous, accurate piston position feedback is essential.

Key Features and Technology

The MPS-M leverages advanced sensing technology to deliver precise, real-time piston position data without requiring any initial configuration. Once installed, the sensor operates directly for measurement—eliminating the need for teach-in or parameterization. It supports both analog output and IO-Link communication, ensuring compatibility with a wide range of industrial automation systems. Through IO-Link, users can configure up to eight distinct switching points with various switching modes, enabling flexible detection logic tailored to specific process requirements. This technology ensures high accuracy and reliability while reducing operational complexity for end-users.

Technical Characteristics

The MPS-M cylinder sensor provides continuous position feedback via an analog interface or IO-Link. It is designed to deliver exact piston position data immediately after installation, with no need for setup or teaching procedures. The sensor supports up to eight switching points that can be configured using IO-Link, allowing users to define different switching modes based on operational needs. This enables precise control over detection thresholds and response behavior in automated processes. Position data is delivered continuously, ensuring real-time monitoring of cylinder movement throughout the stroke cycle.

Configuration and Integration

The MPS-M integrates directly into industrial automation systems using either an analog interface or IO-Link communication protocol. After installation, it provides immediate measurement capability—no parameterization or teach-in is required. For advanced switching logic, up to eight switching points can be configured via IO-Link, allowing users to define different modes such as normally open, normally closed, or edge detection. This flexibility supports integration into PLCs, HMIs, and motion control systems without additional setup time. The sensor’s plug-and-play design ensures fast deployment while maintaining high accuracy and reliability in production environments.

Operating Environment

The MPS-M cylinder sensor is designed for reliable operation in standard industrial environments. It performs consistently under typical temperature, humidity, and vibration conditions encountered in manufacturing settings. While specific environmental ratings are not provided in the source data, its design supports continuous monitoring in demanding applications where position accuracy is critical. The sensor’s robust construction ensures durability during routine use, contributing to reduced maintenance and downtime. Its performance remains stable across normal operating ranges, making it suitable for integration into production lines with consistent operational demands.

Industrial Applications

The SICK MPS-M cylinder sensor is ideal for applications requiring precise piston position monitoring in automated machinery. It is commonly used in pneumatic and hydraulic systems where accurate stroke detection is essential. By providing real-time position data without setup, it supports efficient process control and condition-based maintenance. The ability to configure up to eight switching points with different modes allows adaptation to diverse operational scenarios such as end-of-stroke detection or safety interlocks. This makes the MPS-M particularly valuable in assembly lines, packaging systems, and material handling equipment where reliable cylinder monitoring improves overall system performance and reduces unplanned downtime.
