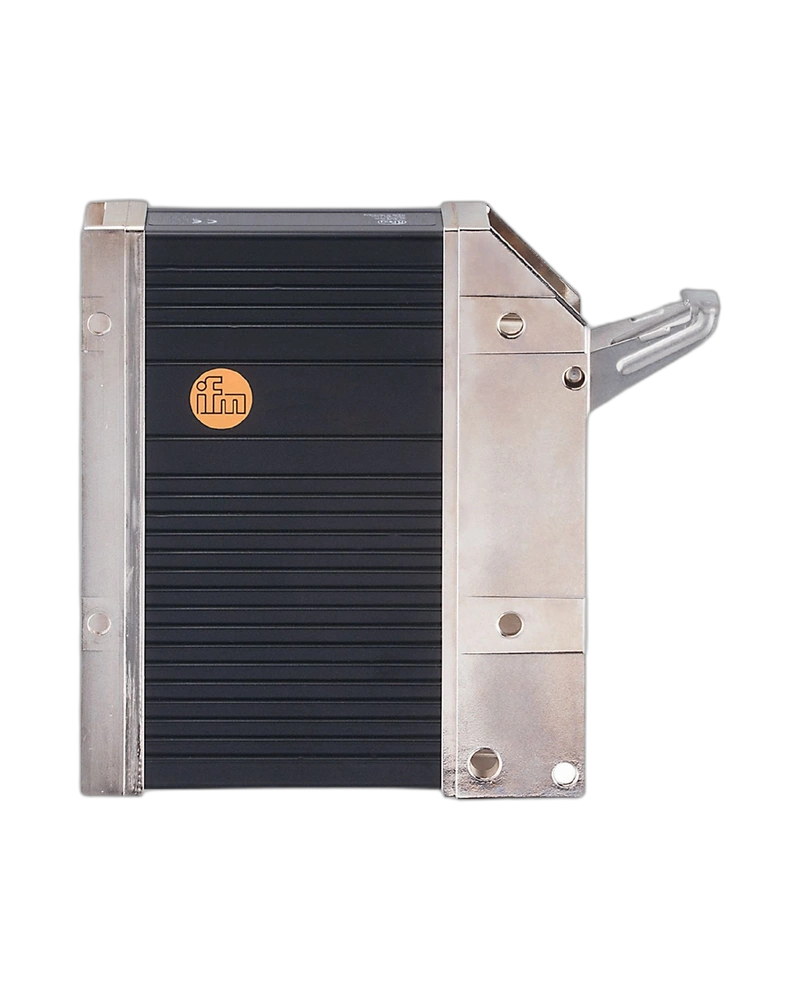

The IFM CR2513 is a SmartModule I/O device providing 8 inputs and 4 outputs for R360 mobile-machine control systems. Four inputs are digital while four inputs can be configured for analogue voltage, current or ratiometric signals. The four outputs support digital and PWM operation, including RC-filtered outputs for suitable Danfoss valves. CANopen communication enables reliable integration into decentralized mobile-machine networks.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The CR2513 provides eight input channels divided into four digital and four analogue inputs. The analogue inputs can measure 0...10 V, 0...20 mA or ratiometric potentiometric signals. This enables connection to switches, sensors, joysticks and other analogue transmitters. The flexible input design makes the module suitable for different machine signal types. Sensor information can be collected locally and transmitted through the CANopen network. This helps reduce long cable runs in mobile machinery.
Four output channels can be configured as digital high-side outputs or PWM outputs. Each output can handle up to 4 A, with a maximum combined output current of 16 A. PWM frequency can be configured from 20...250 Hz. Integrated RC low-pass filter outputs are available for direct control of suitable Danfoss proportional valves. This allows the CR2513 to be used in hydraulic control applications. Short-circuit and overload protection provide additional electrical protection.
The CR2513 uses a closed screened metal housing designed for mobile-machine environments. Its IP67 protection rating helps protect the electronics from harsh environmental conditions when the connector is properly sealed. The device operates from 10...32 V DC and can withstand elevated voltage conditions for a limited duration. CANopen communication supports 10 kbit/s to 1 Mbit/s baud rates. The two-colour LED provides clear information about operating and communication status.
8 inputs
4 digital inputs
4 analogue inputs
4 configurable outputs
Digital outputs
PWM outputs
0...10 V analogue input
0...20 mA analogue input
Ratiometric input
PWM frequency 20...250 Hz
Maximum 4 A per output
Maximum 16 A total output current
CANopen communication
IP67 protection
Metal housing
Mobile machine automation
Agricultural machinery
Construction equipment
Hydraulic control systems
Danfoss proportional valve control
Joystick signal processing
Sensor signal acquisition
Actuator control
Off-highway vehicles
Decentralized I/O systems
| Specification | Details |
|---|---|
| Product Code | CR2513 |
| Product Family | R360 SmartModule |
| Product Type | I/O Module |
| Total I/O | 12 |
| Inputs | 8 |
| Digital Inputs | 4 |
| Analogue Inputs | 4 |
| Analogue Voltage Input | 0...10 V |
| Analogue Current Input | 0...20 mA |
| Ratiometric Input | Yes |
| Analogue Resolution | Application dependent |
| Outputs | 4 |
| Output Type | Digital / PWM |
| Output Switching | Positive high-side |
| Maximum Current per Output | 4 A |
| Maximum Total Current | 16 A |
| PWM Frequency | 20...250 Hz |
| PWM Duty Cycle | 1...1000 ‰ |
| PWM Resolution | 1 ‰ |
| RC Filter Output | Available |
| Valve Compatibility | Danfoss PVEH/PVE/S/M types |
| Supply Voltage | 10...32 V DC |
| Overvoltage Capability | 36 V for limited duration |
| Current Consumption | ≤100 mA without external load |
| CAN Interface | CAN 2.0 B |
| CAN Standard | ISO 11898 |
| CAN Baud Rate | 10 kbit/s...1 Mbit/s |
| Default Baud Rate | 125 kbit/s |
| Communication Profile | CANopen |
| Default Node ID | Hex 20 / Decimal 32 |
| Protection Rating | IP67 |
| Operating Temperature | -40...85 °C |
| Storage Temperature | -40...90 °C |
| Housing | Closed screened metal |
| Dimensions | 132 × 43 × 153 mm |
| Mounting | 4 × M5 screws |
| Connector | 55-pin connector |
| Weight | Approx. 0.95 kg |
| Status Indicator | Two-colour LED |
