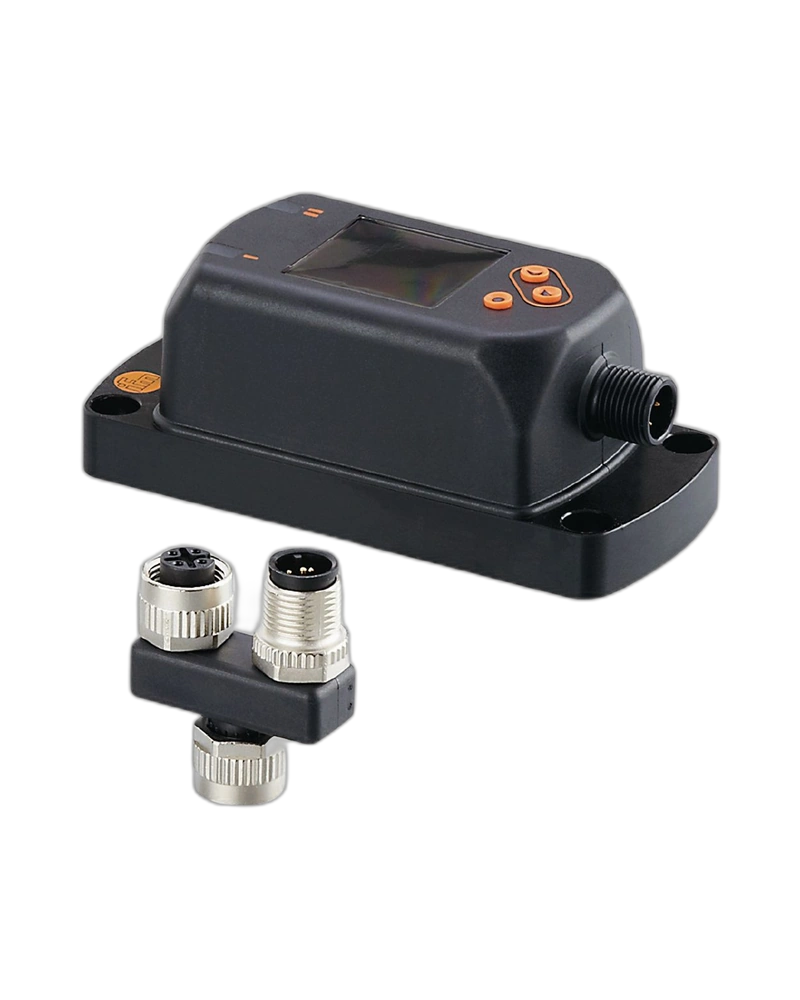

IFM E30430 is a 1.44-inch IO-Link inline display designed to show process values from a connected IFM IO-Link sensor. It is installed between the IO-Link master and sensor, allowing operators to view sensor information directly at the machine or control point. The display uses a 128 × 128 pixel colour TFT screen with LED illumination. It communicates using IO-Link COM2 at 38.4 kBaud and supports IO-Link Revision 1.1. The device operates from 18–30 V DC and has IP65/IP67 protection with Class III electrical protection. Its M12 connection, compact construction and industrial communication capabilities make it suitable for process monitoring and automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E30430 provides a direct visual interface for process values from a connected IO-Link sensor. This allows operators and maintenance personnel to observe sensor information without relying exclusively on a PLC or separate HMI. The 1.44-inch colour TFT display provides clear visual information in a compact format. It can be installed close to the sensor, making process information easier to access at the machine level. This can support faster troubleshooting and operational monitoring.
E30430 communicates through IO-Link using COM2 at 38.4 kBaud and supports IO-Link Revision 1.1. It uses the IEC 61131-9 SDCI standard and supports Smart Sensor profile functions including device identification, process data variables and device diagnosis. The display is designed to operate inline between the IO-Link master and sensor. This allows the display to receive and present the sensor's process information without requiring a separate measurement device.
The display uses a 128 × 128 pixel colour TFT screen with LED illumination. It has an M12 electrical connection and supports IP65/IP67 protection. The device operates from 18–30 V DC and consumes less than 47 mA. Its ambient operating temperature range is 0–60°C, with protection class III and reverse-polarity protection. The display can therefore be integrated into a wide range of protected industrial automation installations.
1.44-inch colour TFT display
128 × 128 pixel resolution
IO-Link inline display
Displays process values from connected IFM sensors
IO-Link COM2 communication
38.4 kBaud transmission rate
IO-Link Revision 1.1
18–30 V DC operating voltage
IP65/IP67 protection
M12 connection
Reverse-polarity protection
LED display illumination
IO-Link process value monitoring
Factory automation
Machine automation
Process instrumentation
Sensor diagnostics
Control cabinet monitoring
Production line monitoring
Industrial process control
| Specification | Details |
|---|---|
| Product Code | E30430 |
| Product Type | IO-Link Display |
| Product Designation | IO-LINK INLINE DISPLAY 1.44" |
| Display Type | 1.44" colour TFT |
| Resolution | 128 × 128 pixels |
| Display Illumination | LED |
| Operating Voltage | 18–30 V DC |
| Current Consumption | <47 mA |
| Communication Interface | IO-Link device |
| Transmission Type | COM2, 38.4 kBaud |
| IO-Link Revision | 1.1 |
| SDCI Standard | IEC 61131-9 |
| Profile | Smart Sensor |
| Master Port Type | A |
| Minimum Process Cycle | 11.2 ms |
| Protection Rating | IP65 / IP67 |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Ambient Temperature | 0–60°C |
| Shock Resistance | 20 g, 11 ms |
| Vibration Resistance | 20 g, 10–50 Hz |
| Connection | M12 |
| Materials | Stainless steel, PC, PBT-GF30, PPS, PA 6.6, FKM |
| Pack Quantity | 1 pc. |
