IFM E30443 is a 1.44-inch IO-Link master display designed to visualise process values from IFM IO-Link sensors connected to the same IO-Link master. It can display up to four digital sensor values and provides a convenient local interface for monitoring process information. The display uses a 128 × 128 pixel colour display and supports configurable brightness, orientation and background colour. It communicates using IO-Link COM3 at 230.4 kBaud and supports IO-Link Revision 1.1. The unit operates from 18–30 V DC and provides IP65/IP67 protection, making it suitable for industrial automation and process monitoring applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E30443 allows operators to view process values from sensors connected to the same IO-Link master. This is useful when sensors are installed in locations where their own displays cannot be seen easily. The display can automatically detect suitable sensor information and show the relevant values. Up to four process values can be displayed. This provides greater visibility of machine and process conditions without requiring a separate large HMI for every measurement point.
The display is connected to an IO-Link master and communicates through the IO-Link interface. It supports COM3 communication at 230.4 kBaud and IO-Link Revision 1.1. The device supports Smart Sensor profile functions including device identification and device diagnosis. The required master port type is Class A. This allows the display to become part of an existing IO-Link infrastructure without requiring a separate communication architecture.

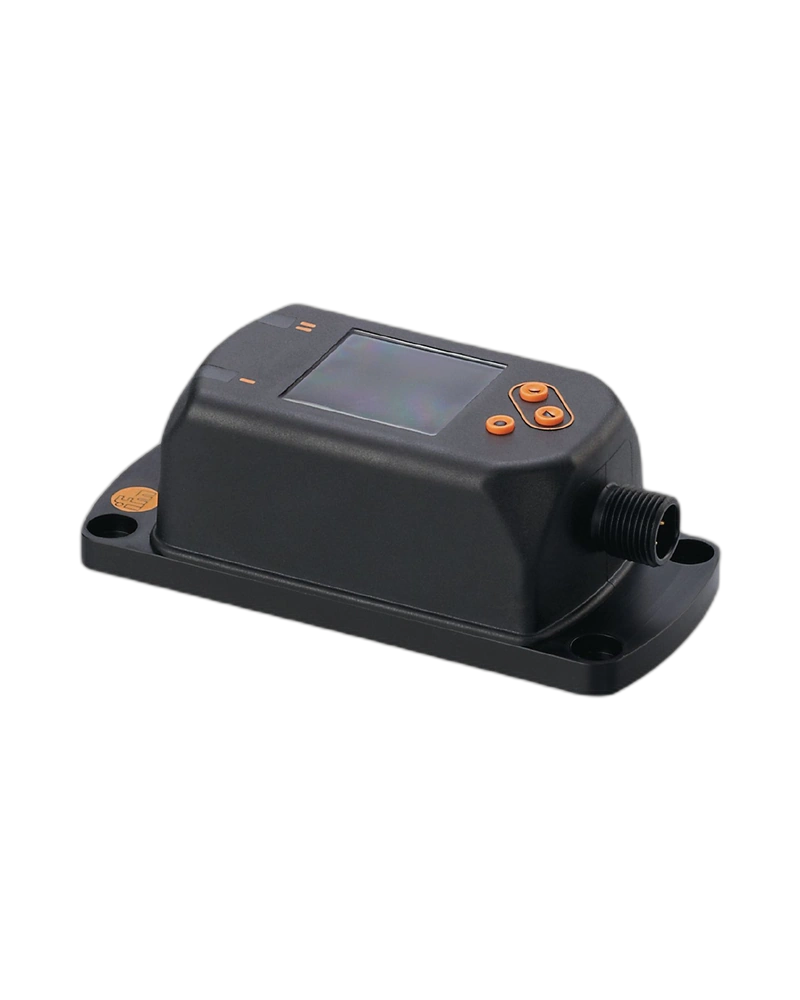

The E30443 uses a 1.44-inch colour display with 128 × 128 pixel resolution. Brightness, display orientation and background colour can be adapted according to the installation requirements. Two yellow LEDs provide additional status indication. Its dimensions are 86 × 45 × 39.5 mm and its weight is approximately 171.5 g. The M12 connection uses four gold-plated contacts for reliable electrical connection.
The device operates from 18–30 V DC with current consumption below 47 mA. It provides reverse-polarity protection and Class III electrical protection. IP65/IP67 protection supports use in industrial environments where dust and water exposure may occur. The ambient operating temperature range is -10 to 60°C. Its stainless-steel and engineering-plastic housing materials provide a durable construction for machine-level installation.
1.44-inch colour display
128 × 128 pixel resolution
Displays up to four digital sensor values
IO-Link master display
COM3 communication at 230.4 kBaud
IO-Link Revision 1.1
Configurable brightness
Adjustable display orientation
Adjustable background colour
IP65/IP67 protection
M12 connection with gold-plated contacts
IO-Link process monitoring
Factory automation
Machine monitoring
Sensor value visualisation
Process instrumentation
Production line monitoring
Industrial control systems
Maintenance and diagnostics
| Specification | Details |
|---|---|
| Product Code | E30443 |
| Product Type | IO-Link Display |
| Product Designation | IO-LINK MASTER DISPLAY 1.44 |
| Display Size | 1.44 inch |
| Display Type | Colour display |
| Resolution | 128 × 128 pixels |
| Display Function | Up to four digital sensor values |
| Operating Voltage | 18–30 V DC |
| Current Consumption | <47 mA |
| Communication | IO-Link |
| Transmission Type | COM3, 230.4 kBaud |
| IO-Link Revision | 1.1 |
| SDCI Standard | IEC 61131-9 |
| Profile | Smart Sensor SSP 0 |
| Minimum Process Cycle | 2.3 ms |
| Protection Rating | IP65 / IP67 |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Ambient Temperature | -10 to 60°C |
| Storage Temperature | -20 to 80°C |
| Dimensions | 86 × 45 × 39.5 mm |
| Weight | Approx. 171.5 g |
| Connection | 1 × M12, A-coded |
| Contacts | 4, gold-plated |
| Housing Materials | Stainless steel 1.4404/316L, PC, PBT-GF30, PPS, FKM |
| Status LEDs | 2 × yellow |
| Pack Quantity | 1 pc. |
