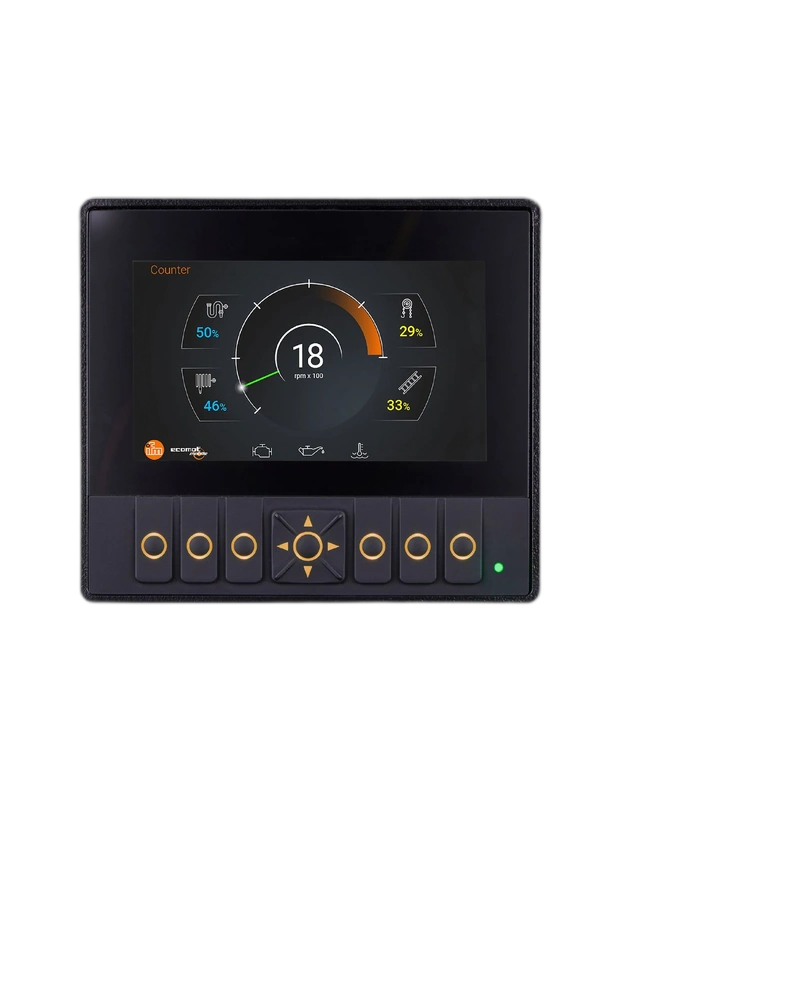

The IFM CR1140 is a compact 4.3-inch ecomatDisplay designed for programmable HMI applications in mobile machines. The standard display version provides graphical visualization for machine data, operating conditions and diagnostic information. Its compact form factor is suitable where reliable operator information is required while conserving installation space in mobile equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The CR1140 is part of IFM's modern 4.3-inch ecomatDisplay generation for mobile automation. It is designed as a compact programmable display for machine operators and control systems. IFM lists the CR1140 among the 4.3-inch ecomatDisplay devices and provides dedicated software packages for the CR1140 through CR1144 family.
The standard version provides a graphical operator interface without the touchscreen configuration used by the touch variants. It can present machine parameters, system states, warnings and other application-specific information. The device supports communication interfaces appropriate for mobile automation; IFM documentation for the CR1140 identifies CAN and Ethernet interfaces and support for protocols including CANopen, SAE J1939 and Ethernet-based communication.
The compact 4.3-inch format is well suited to machines where panel space is limited but an integrated graphic interface is required. It can be applied to agricultural machinery, construction equipment, municipal machines and specialized mobile equipment. Its programmable platform allows machine manufacturers to create application-specific visualization while maintaining a compact operator interface.
4.3-inch ecomatDisplay
Standard display version
Programmable graphic interface
Compact mobile-machine design
CAN communication
Ethernet communication
Support for mobile-machine protocols
CODESYS-compatible software environment
Suitable for machine visualization
IFM mobile automation platform
Agricultural machinery
Construction equipment
Municipal vehicles
Mobile material-handling machines
Special-purpose machinery
Machine status display
Diagnostics
Operator information
| Specification | Details |
|---|---|
| Product code | CR1140 |
| Display size | 4.3 inch |
| Version | STD./E |
| Product family | ecomatDisplay |
| CAN interfaces | 1 |
| Ethernet interfaces | 1 |
| CAN protocols | CANopen, SAE J1939, free protocol |
| Ethernet | 10/100 Mbit/s |
| Programming | CODESYS 3.5 |
| Operating temperature | -30 to 65 °C |
| Manufacturer | IFM |
