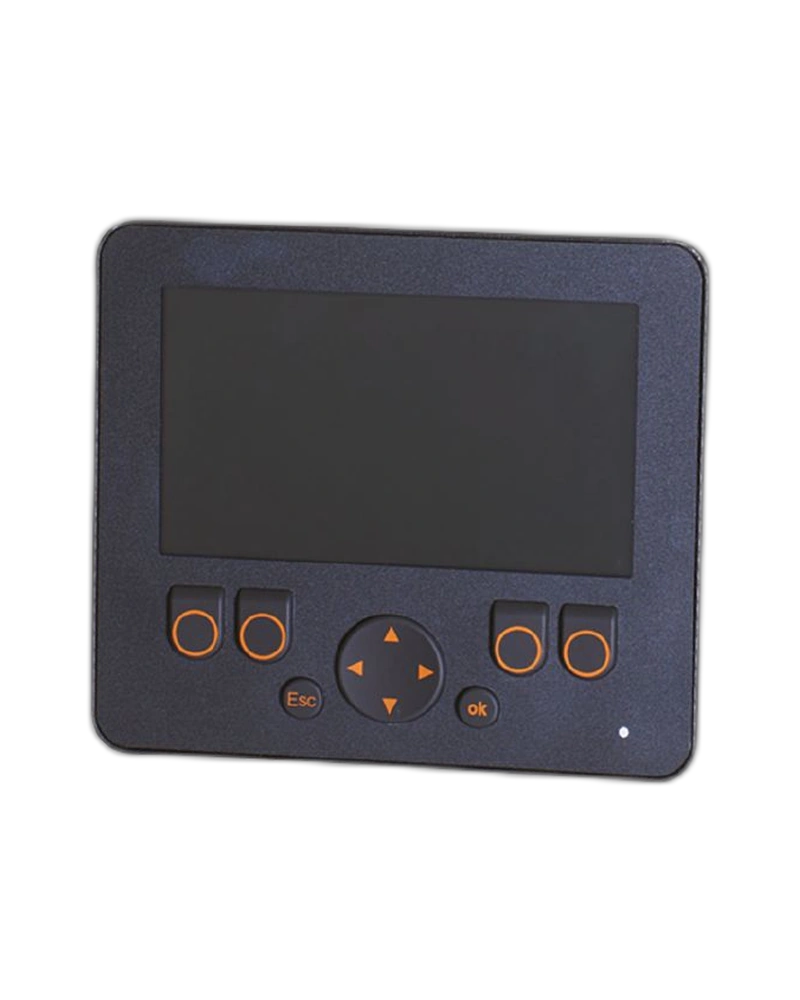

The IFM CR9222 is a programmable graphic display for controlling and monitoring mobile machines. It provides a larger 4.3-inch colour display compared with compact BasicDisplay versions. The TFT LCD display provides a 480 × 272 pixel resolution with a 16:9 aspect ratio. It operates from 8...32 V DC and uses LED backlighting. The display is designed for clear visualization of machine parameters and status information. Its rugged construction makes it suitable for demanding mobile applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The CR9222 provides a colour graphical interface for presenting machine information to operators. Its 16:9 screen format is suitable for dashboards and status pages. Operators can view process values, warnings, diagnostic information and machine states. The programmable display allows application-specific screen designs. LED backlighting supports clear visibility. This makes the unit useful where more graphical information is required.
The display can be integrated with mobile-machine controllers and CAN-based control systems. Its compact housing simplifies machine-panel integration. The 8...32 V DC supply allows use with common mobile electrical systems. The M12 connection provides a robust industrial connection. The display is suitable for machines requiring a larger operator interface without using a full-size industrial panel PC.
4.3-inch colour display
TFT LCD technology
480 × 272 pixel resolution
16:9 aspect ratio
256 colours / 8-bit colour depth
LED backlighting
8...32 V DC supply
Programmable graphic interface
M12 connector
Mobile-machine HMI
Compact design
Machine status visualization
Agricultural machinery
Construction equipment
Mobile cranes
Forklifts
Road machinery
Material-handling machines
Machine dashboards
Operator terminals
Diagnostic displays
Mobile vehicle control
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | CR9222 |
| Series | R360 |
| Product Type | Programmable Graphic Display |
| Variant | BasicDisplay XL/Clear |
| Display | TFT LCD colour |
| Display Size | 4.3 inch diagonal |
| Active Area | 95.0 × 53.9 mm |
| Resolution | 480 × 272 pixels |
| Aspect Ratio | 16:9 |
| Colours | 256 |
| Backlight | LED |
| Backlight Lifetime | ≥40,000 h at 25 °C |
| Operating Voltage | 8...32 V DC |
| Current Consumption | Approx. 100 mA at 24 V DC |
| Connection | M12 |
| Connector Coding | A-coded |
| Connector Pins | 5 |
| Communication | Mobile-machine control network |
| HMI | Programmable |
| Housing | Rugged |
| Application | Mobile machines |
| Mounting | Panel/mobile machine |
| Weight | Approx. 0.22 kg |
| Product Family | Compact robust HMI |
