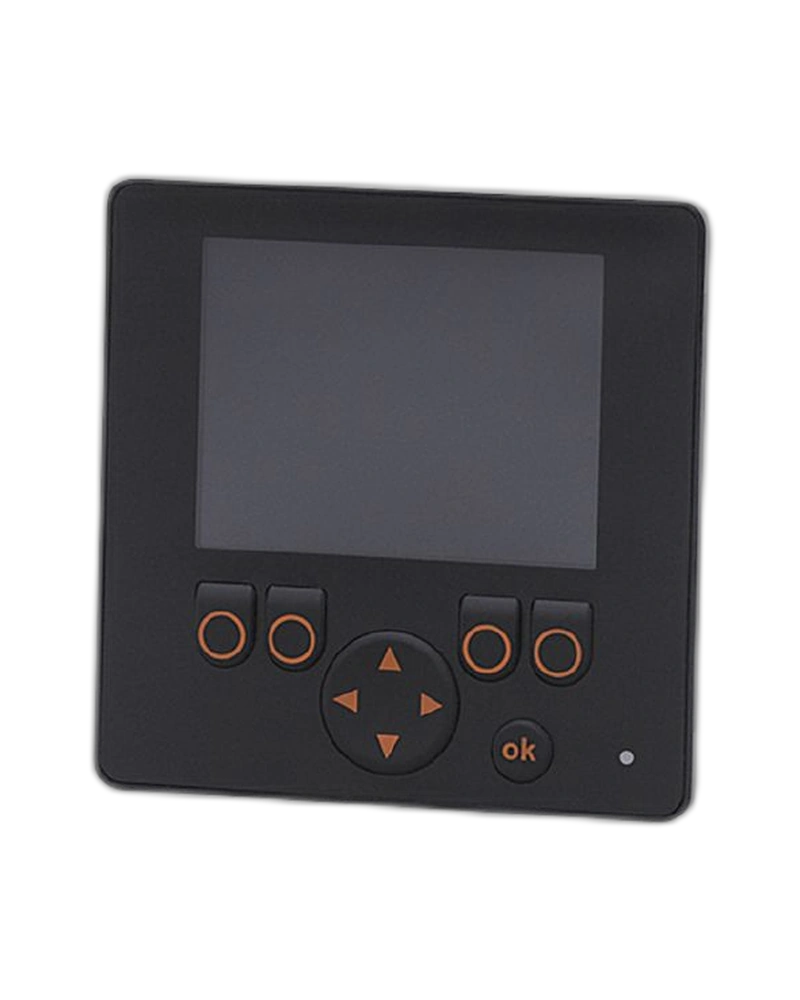

The IFM CR9221 is a compact programmable graphic display designed for visualization and operator interaction on mobile machines. It features a 2.8-inch colour display with a 320 × 240 pixel resolution. The display provides a compact interface for presenting machine status, parameters and diagnostic information. Its programmable architecture allows application-specific screen layouts. The device is suitable for space-limited operator panels.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The CR9221 provides clear graphical visualization for machine parameters and operating information. It can display status messages, measurements, warnings and machine operating conditions. Programmable screen layouts allow the interface to be adapted to different applications. The compact display is suitable where installation space is limited. It provides an effective operator interface for mobile equipment.
The display can be integrated with mobile-machine controllers through CAN-based communication. It is designed for use within IFM's R360 automation platform. Application software can define the displayed information and operator interface. This enables machine manufacturers to create customized HMI screens. The display can also support diagnostic and service information.
2.8-inch colour display
320 × 240 resolution
Compact operator interface
Programmable graphic display
CAN-based machine integration
R360 platform
Suitable for mobile machines
Construction machinery
Agricultural machinery
Forklifts
Mobile hydraulic systems
Off-highway vehicles
Machine operator panels
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | CR9221 |
| Product Type | BasicDisplay |
| Family | R360 / BasicDisplay/Clear |
| Display Type | Colour graphic display |
| Display Size | 2.8 inch |
| Resolution | 320 × 240 pixels |
| Communication | CAN |
| Programming | Application programmable |
| Housing | Mobile-machine design |
| Application | HMI / machine visualization |
