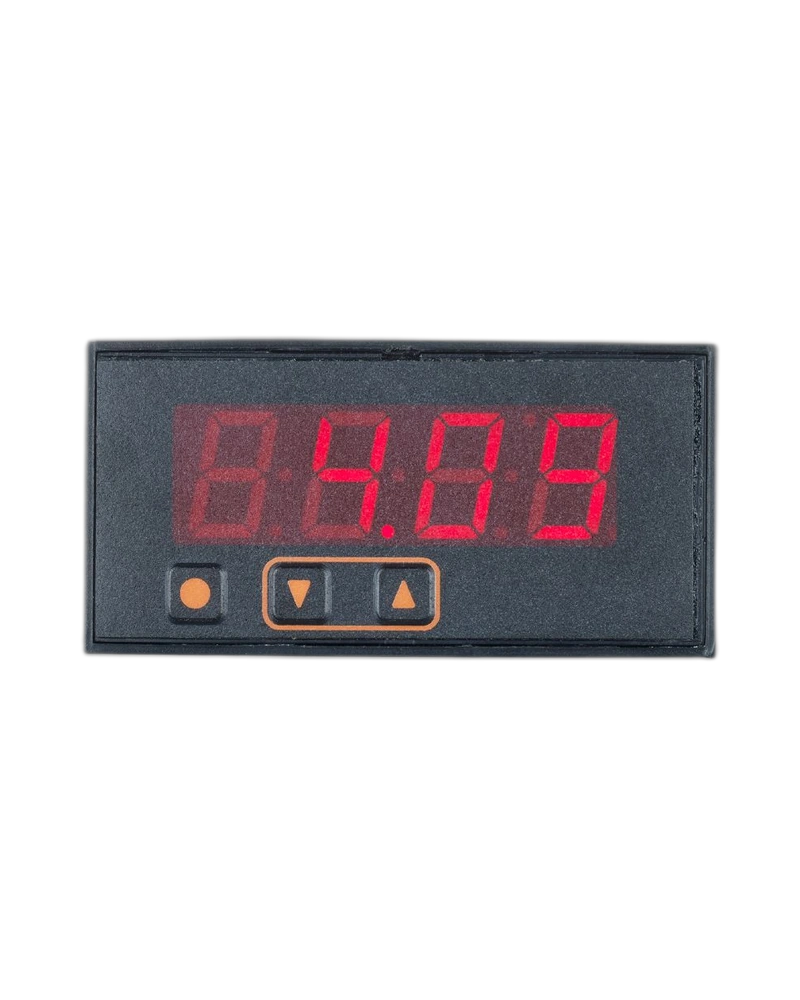

The IFM DX1041 is a compact current-loop display designed to display 4...20 mA analogue signals. It provides a clear indication of analogue process values and is suitable for sensors and instruments with current outputs. The compact 36 x 72 x 40 mm housing is designed for panel installation and provides IP65 protection at the housing level.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The DX1041 is a current-loop display for monitoring 4...20 mA analogue signals. It is designed to provide a clear local indication of a process value without requiring a separate power supply arrangement. The unit is suitable for analogue sensors and measurement devices and can be installed in control panels where compact visualisation of process values is required.
The display accepts one 4...20 mA analogue input with 12-bit resolution. The current loop provides the operating energy, while the display converts the signal into a readable process indication. Its compact housing is suitable for panel installation and provides IP65 protection. The device offers a practical solution for local monitoring of analogue sensor outputs.
The DX1041 is particularly useful for displaying analogue measurements generated by industrial sensors and instruments. Its 4...20 mA input supports a common industrial signal standard, making it suitable for process monitoring. The compact dimensions allow installation in limited control-panel space. Its accuracy and resolution provide reliable local indication for industrial measurement and monitoring tasks.
The DX1041 provides a simple and compact solution for displaying 4...20 mA signals. Its current-loop-powered operation reduces wiring requirements, while the 12-bit input resolution supports detailed signal processing. The panel-mount design and IP65 housing make it suitable for industrial environments where operators need a local view of analogue process values.
4...20 mA analogue input
Current-loop-powered operation
12-bit input resolution
Accuracy 0.3 % ±1 digit
Compact panel design
IP65 housing protection
One analogue input
Clear process-value display
36 x 72 x 40 mm dimensions
Suitable for industrial sensors
Analogue sensor display
Process-value indication
4...20 mA monitoring
Control-panel instrumentation
Industrial measurement
Process automation
Machine monitoring
Sensor output indication
Industrial control systems
Local process display
| Specification | Details |
|---|---|
| Product | DX1041 |
| Function | Current loop display |
| Input | 4...20 mA |
| Analogue inputs | 1 |
| Resolution | 12 bit |
| Accuracy | 0.3 % ±1 digit |
| Operating voltage | 24 V DC / loop powered |
| Dimensions | 36 x 72 x 40 mm |
| Ambient temperature | 0...60 °C |
| Storage temperature | -20...80 °C |
| Protection | IP65 |
| Manufacturer | IFM |
