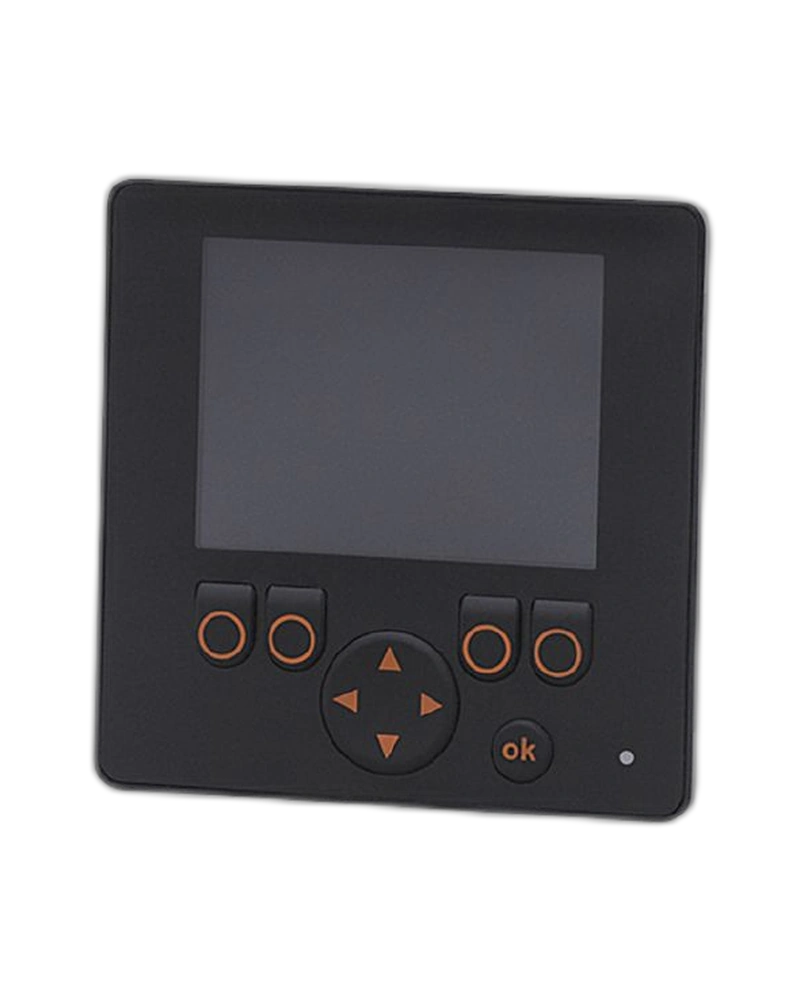

CR0451 is an IFM R360 BasicDisplay programmable graphic display designed for controlling and monitoring mobile machines. It features a 2.8-inch colour display with 320 × 240 resolution, five backlit function keys and a navigation button. The display provides a compact operator interface for mobile automation applications and offers IP65 front protection and IP67 protection when mounted.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
CR0451 is a compact programmable dialogue display from the IFM R360 BasicDisplay family. It is designed to provide operators with visual information and control functions for mobile machines. The display combines a colour screen with physical operating controls in a compact housing.
The unit uses a 2.8-inch colour display with 320 × 240 pixel resolution. This provides an interface for displaying machine status, operating information, alarms and application-specific graphical information. LED backlighting supports clear display visibility in mobile-machine environments.
CR0451 provides five backlit function keys and one navigation button. These controls allow operators to interact with machine applications and navigate through displayed information. The physical keys provide practical operation where touchscreen interfaces may not be preferred.
The display is designed for mobile-machine operator interfaces and can be integrated with compatible R360 controllers. Its compact format, physical controls and rugged protection make it suitable for vehicle and machine applications requiring reliable visualisation and operator interaction.
R360 BasicDisplay
2.8-inch colour display
320 × 240 resolution
Five backlit function keys
One navigation button
LED backlight
Programmable display
IP65 front protection
IP67 when mounted
Mobile-machine HMI
Mobile-machine control
Operator interfaces
Construction equipment
Agricultural machinery
Vehicle dashboards
Machine status display
Alarm indication
Machine parameter display
Mobile automation
Equipment monitoring
| Specification | Details |
|---|---|
| Product code | CR0451 |
| Product family | R360 BasicDisplay |
| Display type | Colour display |
| Display size | 2.8 inch |
| Resolution | 320 × 240 pixels |
| Aspect ratio | 4:3 |
| Backlight | LED |
| Function keys | 5, backlit |
| Navigation button | 1 |
| Front protection | IP65 |
| Protection when mounted | IP67 |
| Storage temperature | -30...80 °C |
