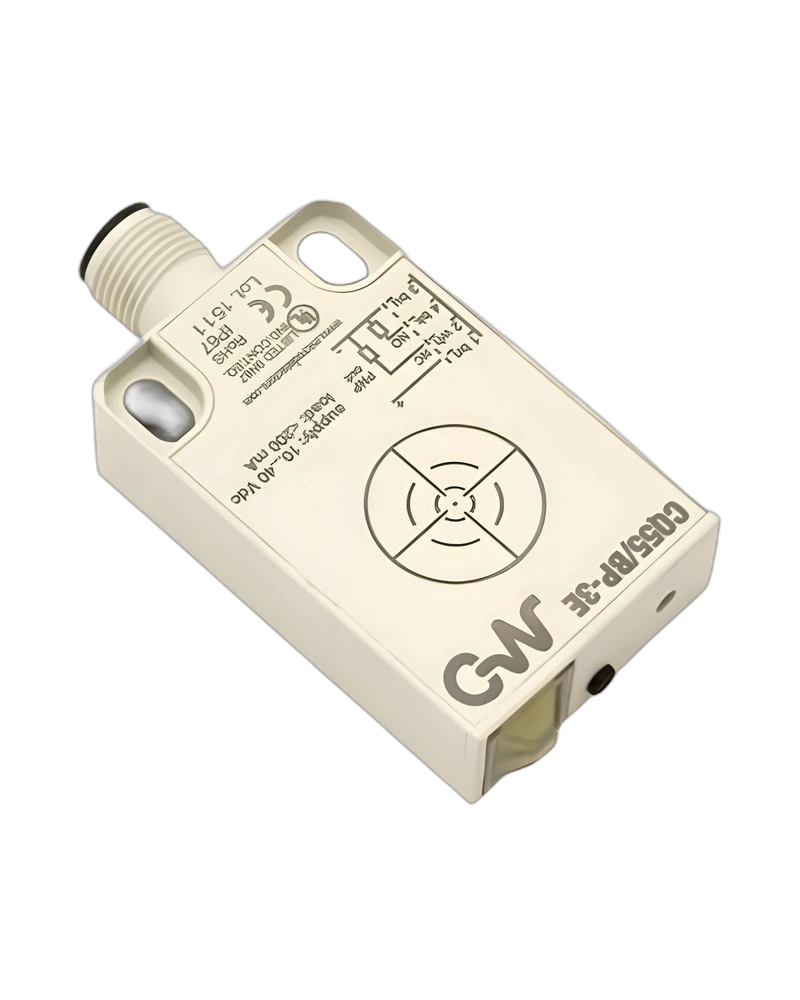

CQ55/BP-3E is a cubic capacitive proximity sensor for non-contact target detection. The output is PNP NO + NC. The supply is 10…40 VDC. The connection is M12 plug. The housing is Plastic.
The sensing characteristics are defined by the product type and the technical values associated with this model.
The listed sensing parameters describe the operating characteristics of the device without adding unsupported values.
The supply is 10…40 VDC. The output is PNP NO + NC. The maximum load current is 200 mA max. The switching frequency is 50 Hz.
The supply of 10…40 VDC defines the required operating voltage. The PNP NO + NC output defines the switching or signal arrangement. The switching frequency is 50 Hz.
The housing is Plastic. The connection is M12 plug. Protection is rated IP67. The operating temperature range is -25…+80 °C.
The Plastic housing provides the specified mechanical format. The M12 plug connection provides the stated physical interface. Protection is rated IP67.
The sensor type is Cubic capacitive proximity sensor. The dimensions is 15 x 35 x 55 mm. The operating range is 4…25 mm. The Sensitivity adjustment is Yes. The output is PNP NO + NC. The supply is 10…40 VDC. The maximum load current is 200 mA max. The switching frequency is 50 Hz. The supply is 2.5 V max. @ 200 mA. Protection is rated IP67.
CQ55/BP-3E combines the cubic capacitive proximity sensor characteristics given in the product specification. The sensor type is Cubic capacitive proximity sensor. The output is PNP NO + NC. The supply is 10…40 VDC. The connection is M12 plug. The housing is Plastic. Protection is rated IP67. These technical values describe the sensing, electrical and mechanical properties of CQ55/BP-3E.
| Specification | Value |
|---|---|
| Model | CQ55/BP-3E |
| Sensor type | Cubic capacitive proximity sensor |
| Dimensions | 15 x 35 x 55 mm |
| Nominal sensing range | 4…25 mm |
| Sensitivity adjustment | Yes |
| Output | PNP NO + NC |
| Supply | 10…40 VDC |
| Load current | 200 mA max. |
| Switching frequency | 50 Hz |
| Voltage drop | 2.5 V max. @ 200 mA |
| Protection | IP67 |
| Connection | M12 plug |
| Housing | Plastic |
| Temperature | -25…+80 °C |
