The nominal sensing distance is 6 mm.
The nominal sensing distance is 6 mm. A switching frequency of 10 Hz.
The thermal drift Sr is < 20%, with repeat accuracy of 5%.
The output type is NPN. The output function is No.
The operating voltage is 10-30 VDC, with load current of ≤50 mA. No-load supply current is ≤10 mA and leakage current is limited to ≤ 100 µA.
Maximum ripple is ≤10%. Short-circuit protection is Yes, Automatic reset. Reverse polarity protection is Yes. Surge protection is Yes.
Ingress protection is rated IP 67 NEMA 1,3,4,6,13.
Dimensions are 50x30x7 mm and the connection is 2 m PVC Cable. Weight is 70 g.
The operating temperature range is 0…60 °C (Non-freezing).
Storage temperature is -30 °C…+75 °C.
Sensitivity adjustment is No.

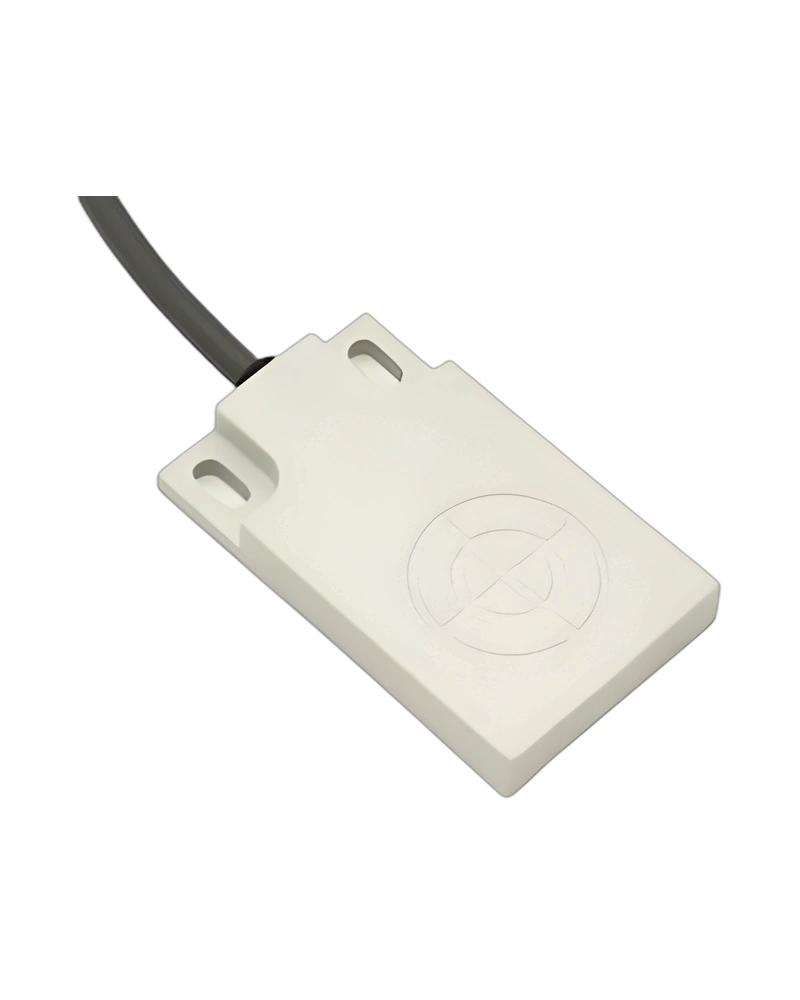

The manufacturer part number is CQ50/AN-2A. This model is manufactured by M.D. Micro Detectors. Installation is Shielded.
Shielded is Operating temperature:. Time to availability is ≤100 ms.
For electrical integration, it provides output type NPN, operating voltage 10-30 VDC, switching frequency 10 Hz. The physical configuration includes dimensions 50x30x7 mm, 2 m PVC Cable connection. It is rated IP 67 NEMA 1,3,4,6,13 for an operating temperature range of 0…60 °C (Non-freezing).
| Specification | Details |
|---|---|
| Model | CQ50/AN-2A |
| Manufacturer part number | CQ50/AN-2A |
| Manufacturer | M.D. Micro Detectors |
| Output type | NPN |
| Output function | No |
| Switching frequency | 10 Hz |
| Weight | 70 g |
| Installation | Shielded |
| Operating temperature | 0…60 °C (Non-freezing) |
| Dimensions | 50x30x7 mm |
| Connection | 2 m PVC Cable |
| Storage temperature | -30 °C…+75 °C |
| Hysteresis | ≤ 20% |
| Nominal sensing distance | 6 mm |
| Sensitivity adjustment | No |
| Thermal drift Sr | < 20% |
| Repeat accuracy | 5% |
| Degree of protection | IP 67 NEMA 1,3,4,6,13 |
| Time to availability | ≤100 ms |
| Short-circuit protection | Yes, Automatic reset |
| Reverse polarity protection | Yes |
| Surge protection | Yes |
| Maximum ripple | ≤10% |
| Operating voltage | 10-30 VDC |
| Load current | ≤50 mA |
| No-load supply current | ≤10 mA |
| Leakage current | ≤ 100 µA |
