Product Overview

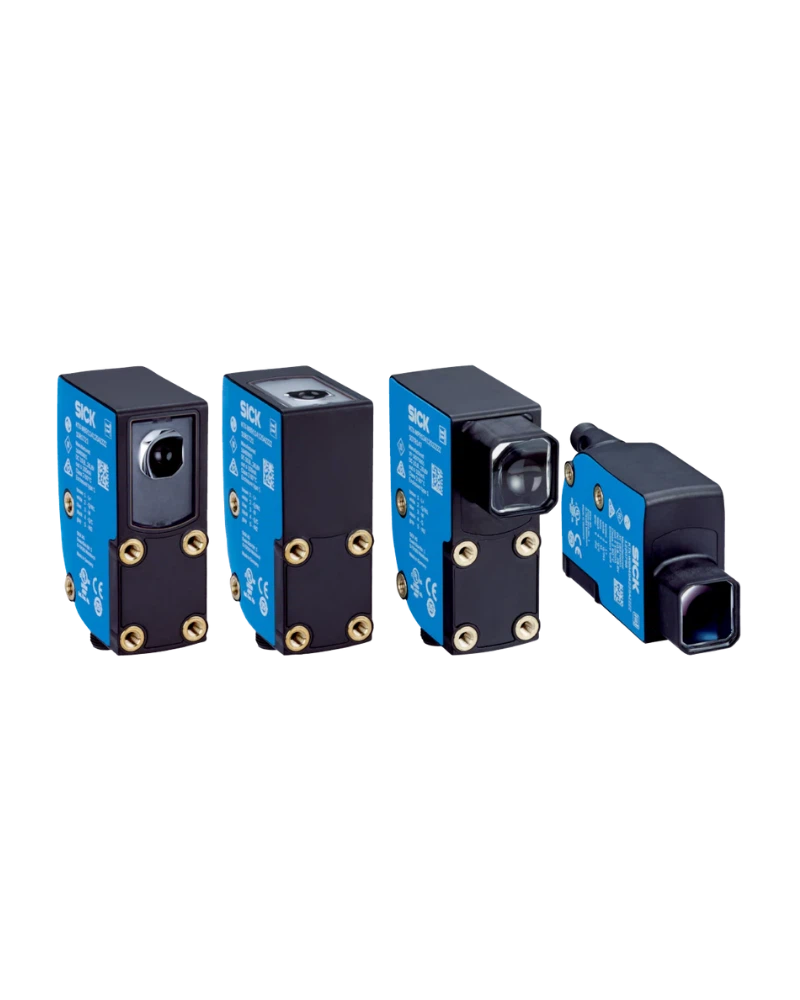

The SICK KTX Contrast Sensor is a high-performance optical sensor designed for reliable detection of contrast differences in industrial environments. Built with proven TwinEye-Technology, it delivers precise and consistent results even under challenging conditions. Featuring a familiar hole pattern and robust VISTAL® housing, the KTX offers ease of integration while maintaining exceptional reliability. With advanced RGB LED technology and a high-precision optical system, this sensor excels in applications requiring accurate edge detection or object identification based on surface contrast. The inclusion of a 7-segment display enables clear visual feedback for status monitoring, making it ideal for both automated systems and maintenance personnel. Its proven design ensures long-term performance with minimal downtime, combining user-friendly features with industrial-grade durability.

Key Features and Technology

The KTX Contrast Sensor leverages TwinEye-Technology to enhance detection accuracy through dual optical sensing paths, enabling superior contrast resolution. This technology works in tandem with a high-precision RGB LED that ensures consistent illumination across all color modes. The sensor operates at a switching frequency that supports fast response times, critical for dynamic environments. A unique color mode allows differentiation based on surface reflectivity and hue, improving detection reliability. With a response time of 10 µs and jitter of only 5 µs, the KTX ensures precise timing in high-speed applications. The 7-segment display provides real-time feedback on operational status, aiding troubleshooting and system monitoring. This combination of advanced optics and intelligent design makes the sensor highly effective in complex or variable environments.

Technical Characteristics

The KTX Contrast Sensor delivers outstanding grayscale resolution and high switching frequency for accurate contrast detection. Its response time is precisely 10 µs, with a jitter of 5 µs, ensuring reliable timing performance even under fluctuating conditions. The sensor uses TwinEye-Technology to improve signal quality and reduce false detections. It features a high-precision RGB LED that provides consistent illumination across all modes. A 7-segment display offers clear visual feedback on operational status. All technical values are derived from SICK's official specifications and reflect the sensor’s proven performance in real-world industrial settings.

Configuration and Integration

The KTX Contrast Sensor integrates seamlessly via IO-Link, enabling direct communication with control systems for real-time data exchange and diagnostics. This interface supports parameter configuration, status monitoring, and fault detection without the need for additional hardware. The familiar hole pattern simplifies mounting and alignment during installation. The sensor’s robust VISTAL® housing ensures mechanical stability in harsh environments. With standard IO-Link compatibility, it is compatible with a wide range of industrial automation systems, allowing easy integration into existing PLC or HMI setups. No additional cabling or complex wiring is required to achieve full functionality.

Operating Environment

The KTX Contrast Sensor is designed for operation in standard industrial environments. It performs reliably under a wide range of ambient temperatures and humidity levels, ensuring consistent performance across typical manufacturing conditions. The sensor is suitable for use in both cleanroom and high-dust environments due to its sealed housing design. While specific environmental ratings are not provided in the source data, the sensor's proven durability and robust construction support reliable operation in standard industrial settings. It is recommended for use where stable optical detection is required without interference from ambient light or surface variations.

Industrial Applications

The KTX Contrast Sensor is ideal for applications requiring precise contrast-based object detection, such as part counting, position sensing, and edge recognition. Its high resolution and fast response time make it suitable in assembly lines, packaging systems, and quality control processes where surface differences must be reliably identified. The sensor’s ability to operate effectively under difficult lighting conditions ensures consistent performance across diverse materials and surfaces. Whether used for detecting small components or monitoring product alignment, the KTX provides dependable results in automated inspection tasks. Its compatibility with IO-Link allows integration into smart manufacturing systems that require real-time feedback and diagnostics.
