Product Overview

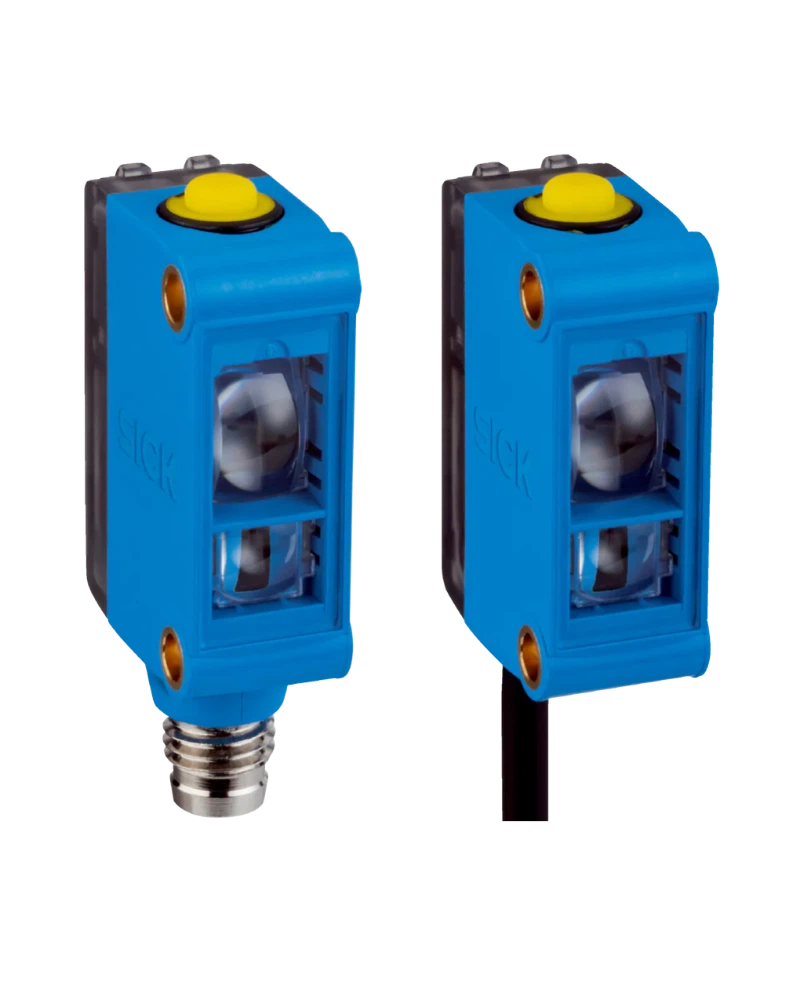

The SICK Color Sensors CSM series are specialized detection devices designed to identify and verify object colors in industrial automation environments. These sensors emit light across the entire visible spectrum onto inspected objects, capturing reflected light data to determine color composition. By comparing measured color proportions against previously programmed reference values, the CSM sensors enable accurate color recognition and quality control. The technology ensures reliable performance in applications where precise color matching is essential. With a range of models available, including high-resolution and high-speed variants, the CSM series offers flexibility for diverse inspection tasks. These sensors are ideal for environments requiring consistent, repeatable color detection without manual intervention or complex setup.

Key Features and Technology

The CSM color sensors utilize a patented technology that emits light across the full visible spectrum to inspect objects. The sensor captures reflected light and calculates color proportions based on spectral analysis. These values are then compared against pre-programmed reference colors, enabling accurate identification of deviations. This method ensures robust detection even under varying lighting conditions or surface reflectivity. The sensors operate independently of ambient illumination, making them suitable for dynamic production lines. By teaching reference color values during setup, users can tailor the system to specific product requirements. The technology supports both high-resolution and high-speed operation, ensuring precision without sacrificing throughput.

Technical Characteristics

The CSM series includes 12 variants of the CSS High Resolution model, offering enhanced sensitivity and accuracy in color detection. A total of 25 variants are available under the CSS/CSX High Speed configuration, enabling rapid inspection cycles for high-volume production. The sensors operate across the full visible spectrum to detect object colors with precision. They analyze reflected light to determine color composition and compare it against stored reference values. This technology ensures consistent performance in varying environmental conditions. All models are designed for reliable operation in industrial settings where color consistency is critical.

Configuration and Integration

The CSM color sensors integrate seamlessly into existing automation systems through standard detection sensor connections. They can be configured to detect specific colors by teaching reference values during setup, allowing customization for different product types or processes. The sensors are compatible with a wide range of industrial automation systems, including light grids, photoelectric and proximity sensors. Integration is straightforward due to their modular design and compatibility with SICK’s broader sensor ecosystem. No additional software or hardware is required beyond standard configuration tools provided by SICK.

Operating Environment

The CSM color sensors are designed for reliable operation in industrial environments with typical temperature ranges, humidity levels, and dust exposure. They perform consistently under varying ambient lighting conditions due to their full-spectrum light emission and spectral analysis technology. The sensors are suitable for use in both controlled and dynamic production settings where environmental factors may affect inspection accuracy. Their robust construction ensures durability during continuous operation. While exact environmental ratings are not specified in the provided data, the design supports standard industrial operating conditions.

Industrial Applications

The CSM color sensors are widely used in industries requiring precise color verification, such as packaging, automotive, and consumer goods manufacturing. They ensure product quality by detecting deviations from required color standards during production. Applications include inspecting labels, printed materials, and finished components where color consistency is critical. The sensors support both batch and continuous production processes. Their ability to detect color variations without manual oversight makes them ideal for automated inspection lines. By integrating with existing automation systems, the CSM series enhances quality control efficiency across multiple industrial sectors.
