The nominal sensing distance is 1,5…10 mm.
The nominal sensing distance is 1,5…10 mm. A switching frequency of 300 Hz.
The thermal drift Sr is < 20%, with repeat accuracy of 5%.
The output type is PNP. The output function is NO + NC.
The operating voltage is 10 - 30 VDC, with load current of ≤ 100 mA. No-load supply current is 17 mA and leakage current is limited to ≤ 1 µA.
Maximum ripple is ≤15%. Short-circuit protection is Yes, Automatic reset. Reverse polarity protection is Yes. Surge protection is Yes.
Ingress protection is rated IP 65.

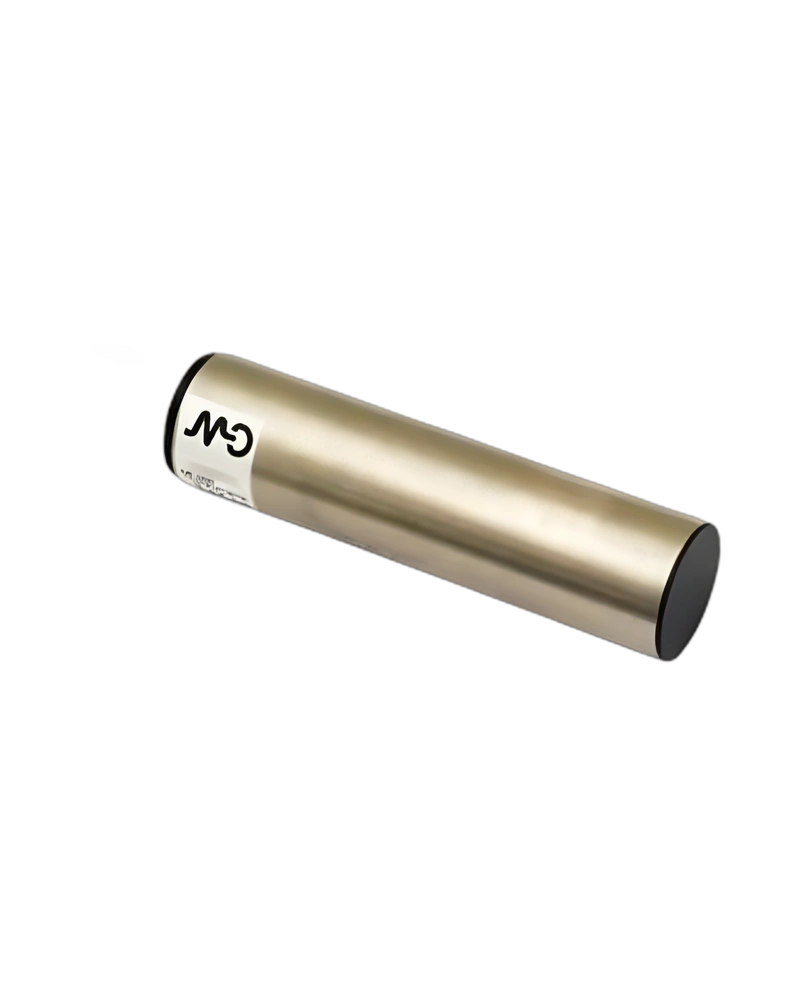

The housing is Stainless steel, while the active head uses LCP. Dimensions are Ø20 / L = 80 mm and the connection is 2 m PVC Cable.
Weight is 200 g.
The operating temperature range is -25 °C…+70 °C.
Sensitivity adjustment is Yes.
The manufacturer part number is CE1/0P-1A. This model is manufactured by M.D. Micro Detectors. Installation is Shielded.
Shielded is Operating temperature:.
For electrical integration, it provides output type PNP, operating voltage 10 - 30 VDC, switching frequency 300 Hz. The physical configuration includes Stainless steel housing, dimensions Ø20 / L = 80 mm, 2 m PVC Cable connection. It is rated IP 65 for an operating temperature range of -25 °C…+70 °C.
| Specification | Details |
|---|---|
| Model | CE1/0P-1A |
| Manufacturer part number | CE1/0P-1A |
| Manufacturer | M.D. Micro Detectors |
| Output type | PNP |
| Output function | NO + NC |
| Switching frequency | 300 Hz |
| Weight | 200 g |
| Active head material | LCP |
| Housing material | Stainless steel |
| Installation | Shielded |
| Operating temperature | -25 °C…+70 °C |
| Dimensions | Ø20 / L = 80 mm |
| Connection | 2 m PVC Cable |
| Hysteresis | ≤ 20% |
| Nominal sensing distance | 1,5…10 mm |
| Sensitivity adjustment | Yes |
| Thermal drift Sr | < 20% |
| Repeat accuracy | 5% |
| Degree of protection | IP 65 |
| Short-circuit protection | Yes, Automatic reset |
| Reverse polarity protection | Yes |
| Surge protection | Yes |
| Maximum ripple | ≤15% |
| Operating voltage | 10 - 30 VDC |
| Load current | ≤ 100 mA |
| No-load supply current | 17 mA |
| Leakage current | ≤ 1 µA |
